Nissan Micra Wiring Harness Layout Diagram – Outline (EL-61, SEL400G)

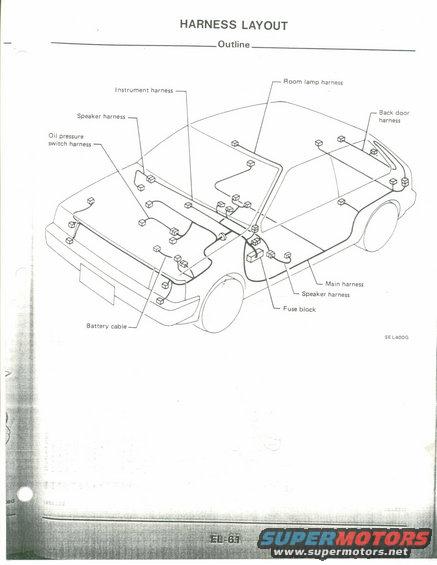

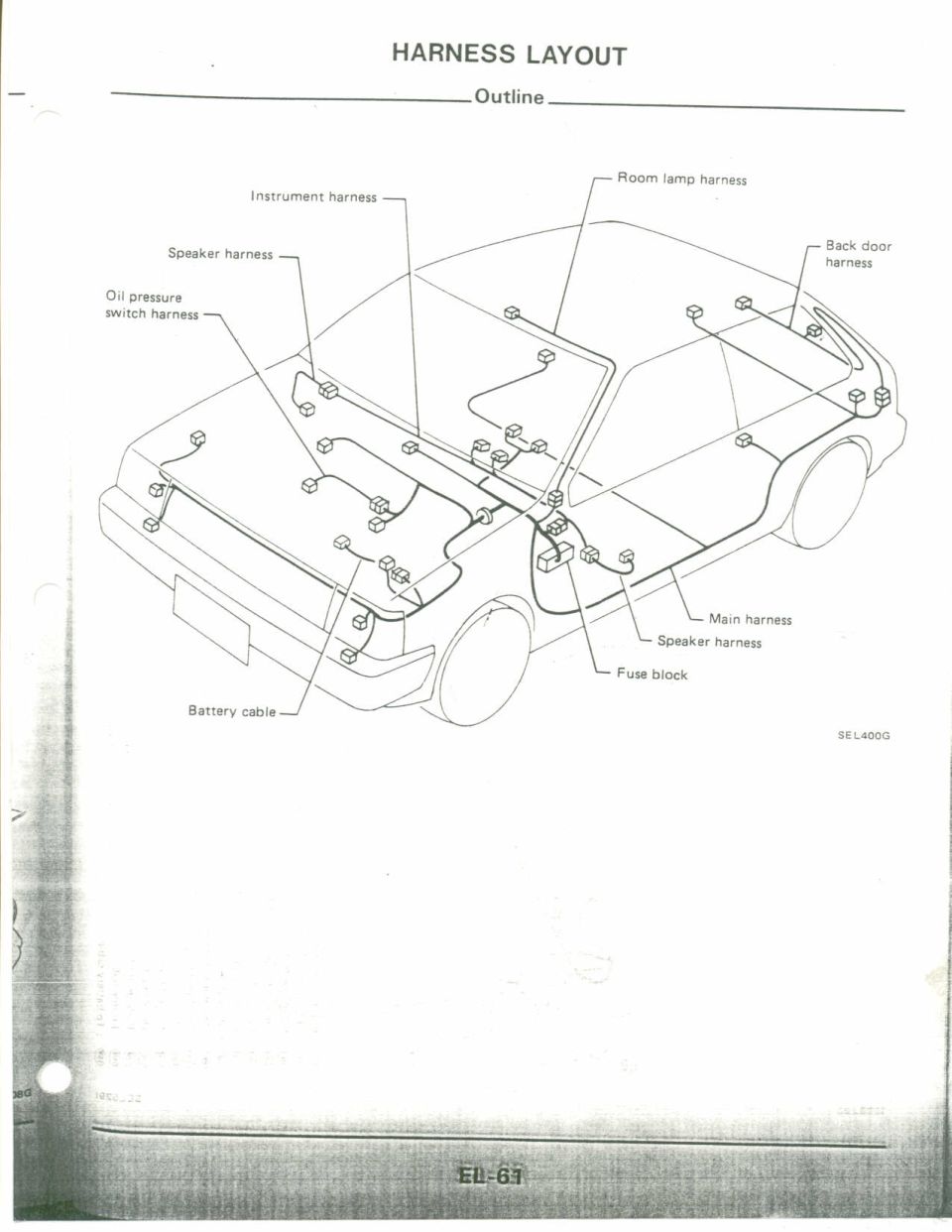

This document is a single page (EL-61) from a Nissan factory service manual's Electrical (EL) section, titled "HARNESS LAYOUT — Outline." It contains an isometric line drawing of a 3-door hatchback vehicle with the body shown in phantom view, illustrating the routing of the vehicle's main wiring harnesses and the locations of connectors throughout the car. Labeled components include the instrument harness, room lamp harness, speaker harness (labeled at two locations — front and rear), oil pressure switch harness, back door harness, main harness, fuse block, and battery cable. Connector positions are indicated by small box symbols placed along the harness runs from the engine bay, through the dash area, along the sills, and to the rear hatch. The figure carries the Nissan illustration reference code SEL400G. A reader can use this page to identify which harness serves a given area of the vehicle and where major harnesses interconnect, which is useful for electrical diagnosis, harness replacement, or tracing wiring problems. The page itself contains no fuse ratings, wire colors, or year/model text; it was uploaded to a gallery attributed to a 1990 Nissan Micra.
