1990 Nissan Micra Passenger Compartment Electrical Unit Locations (EL-60)

Nissan passenger compartment electrical units location diagram EL-60

‹ ›

Location-of-electrical-units illustration showing engine revolution unit under driver's seat, fuse block, ignition relay (blue), inhibitor relay (gray), horn relay, flasher unit and body grounds.

AI caption February 2006 · Photo 405 of 412

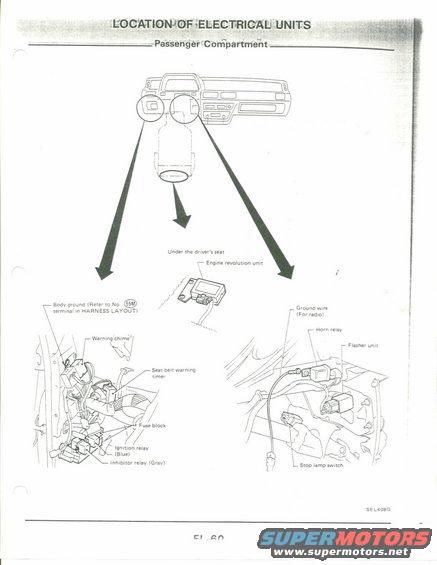

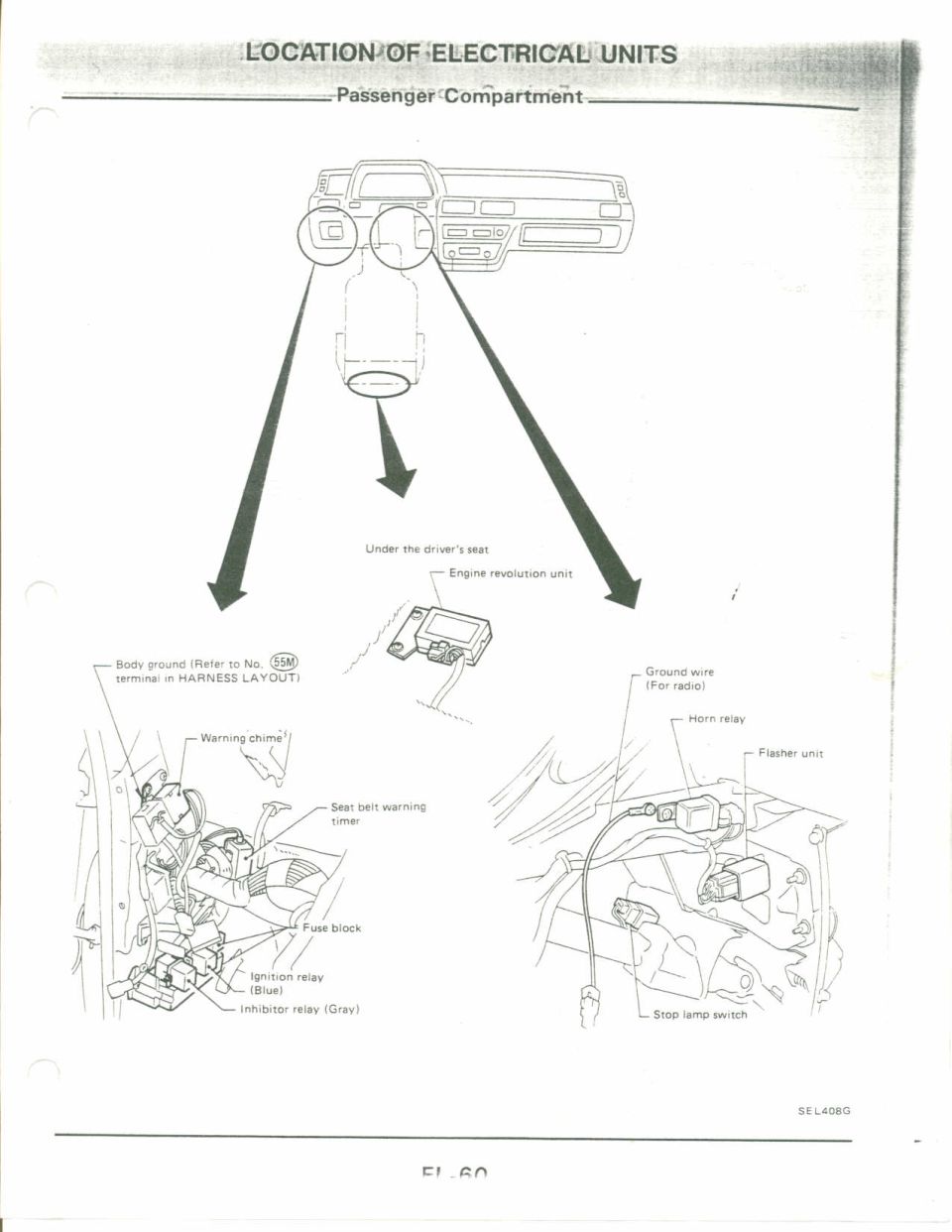

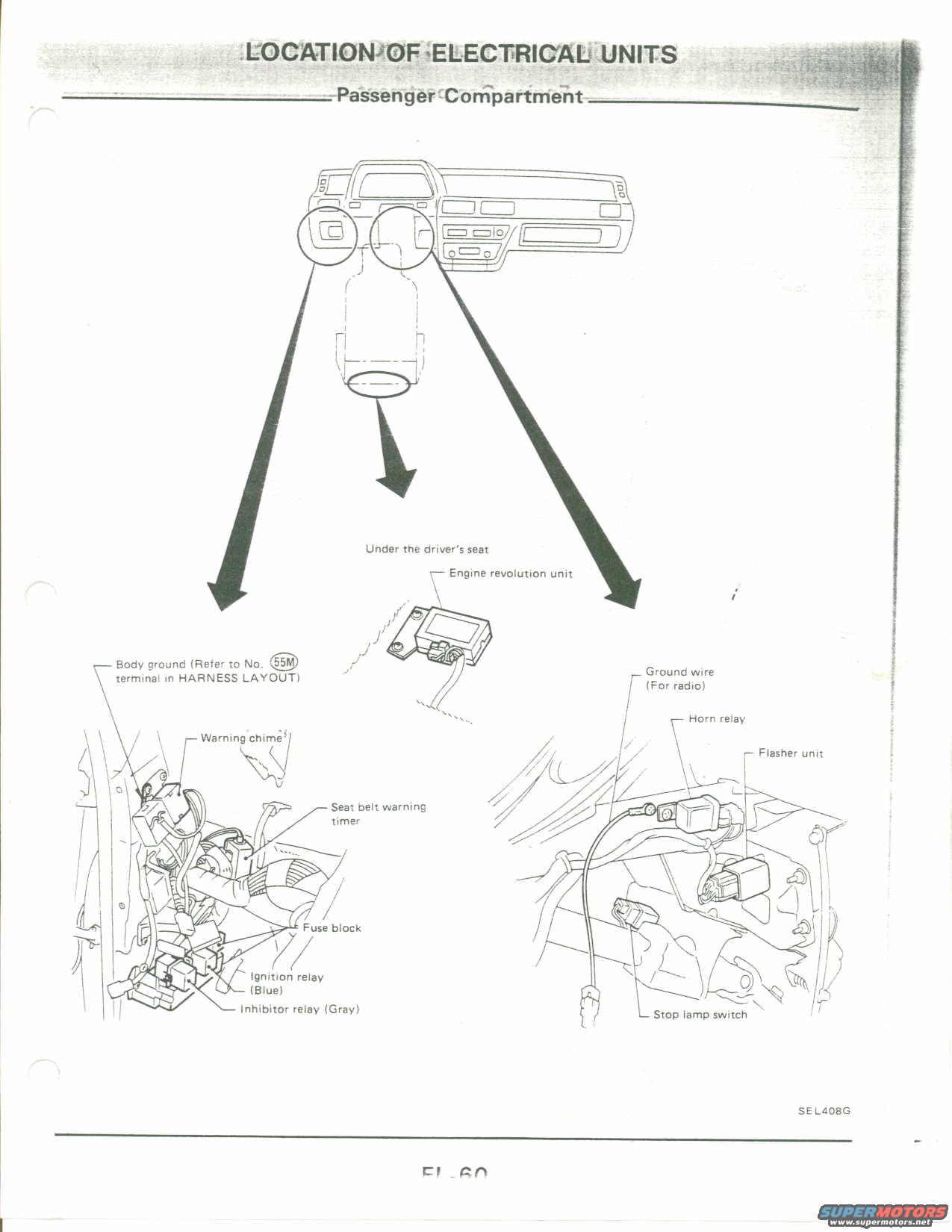

This is a scanned page (EL-60) from a Nissan service manual, in the electrical section, titled 'Location of Electrical Units – Passenger Compartment.' It shows an overview drawing of the instrument panel/dashboard with three circled areas and arrows pointing to detailed illustrations. The center illustration shows the engine revolution unit located under the driver's seat. The left illustration (driver's side kick panel/dash area) identifies the body ground point (referencing terminal No. 55M in the Harness Layout section), the warning chime, seat belt warning timer, fuse block, ignition relay (blue), and inhibitor relay (gray). The right illustration (steering column area) identifies the ground wire for the radio, horn relay, flasher unit, and stop lamp switch. The figure reference code SEL408G appears at the bottom right. A reader can use this page to locate relays (ignition, inhibitor, horn), the flasher unit, fuse block, warning chime/seat belt timer, stop lamp switch, and ground points inside the passenger compartment. The page was uploaded as part of a multi-page manual set attributed to a 1990 Nissan Micra; the page itself carries no year or model markings.
