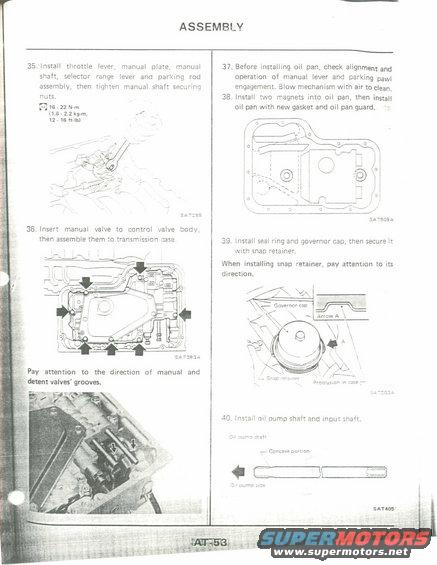

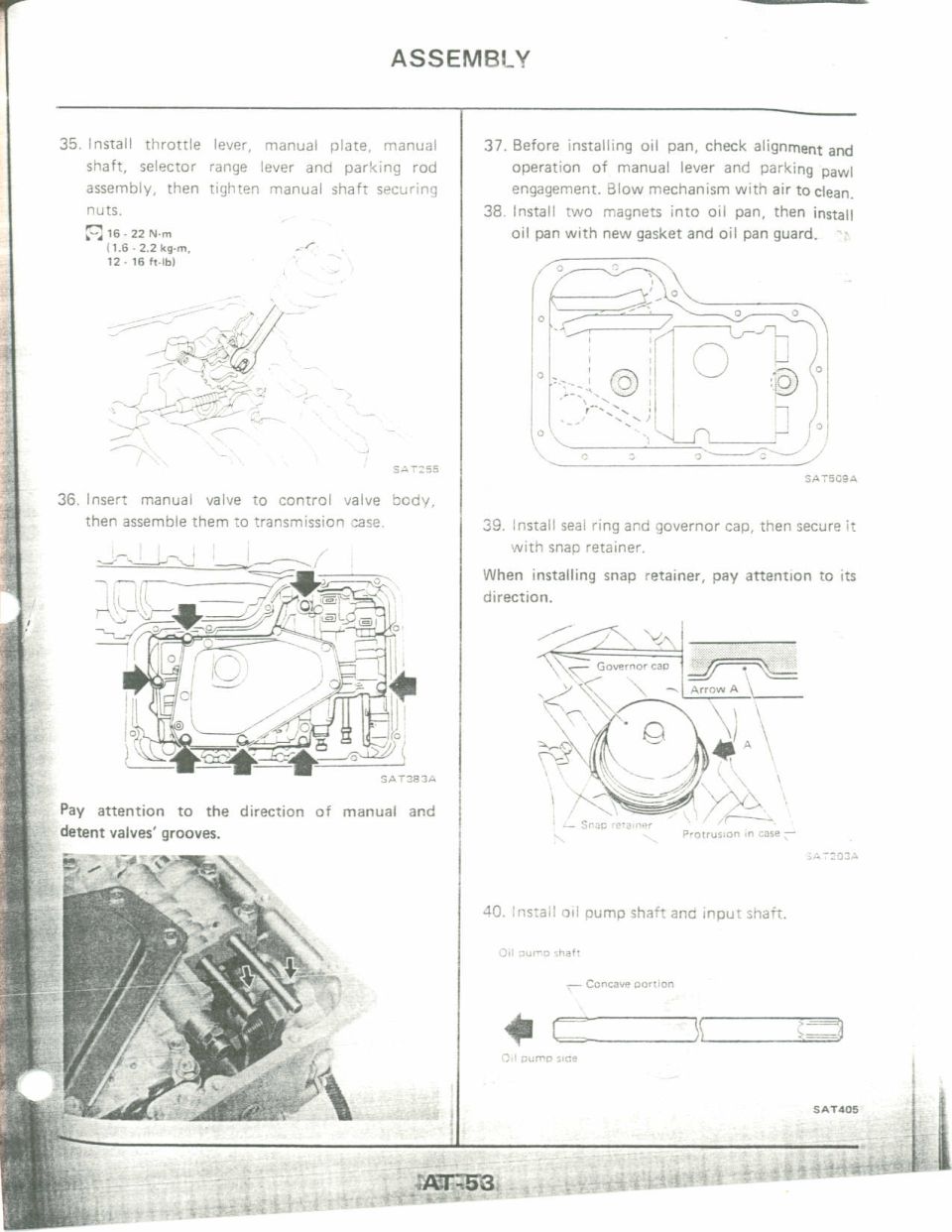

Service manual assembly page AT-53 with diagrams for transmissio…

ASSEMBLY 35. lnstall throttle lever, manual plate, manual shaft, selector range lever and parking rod assembly, then tighten manual shaft securing nuts. H15 . 22 N-m H.672] kg~m, . f 2- 16 elhl 36, Insert manual valve to control valve bcuv. then assemble them to transmission case, Pay attention to the direction of manual and damn valves' grooves. 37. Before installing oil pan, check alignmeM and operation of manual lever and parking pawl engagement. Blow mechanism with air to clean, 38. install two magnets into oil pan, then instan oil pan With new gasket and oil pan guard, 39. install seal ring and governor cap, then secure it With snap retainer. When installing snap retainer, pay attention to its direction. /7< cx _.__ / V :VVIULAS.Q" in :ass- a 40. 'nstali all Dump shaft ant: inuu: snatt. :xl .2u"" ,l-zr 7 cllrCPV unr'itn
