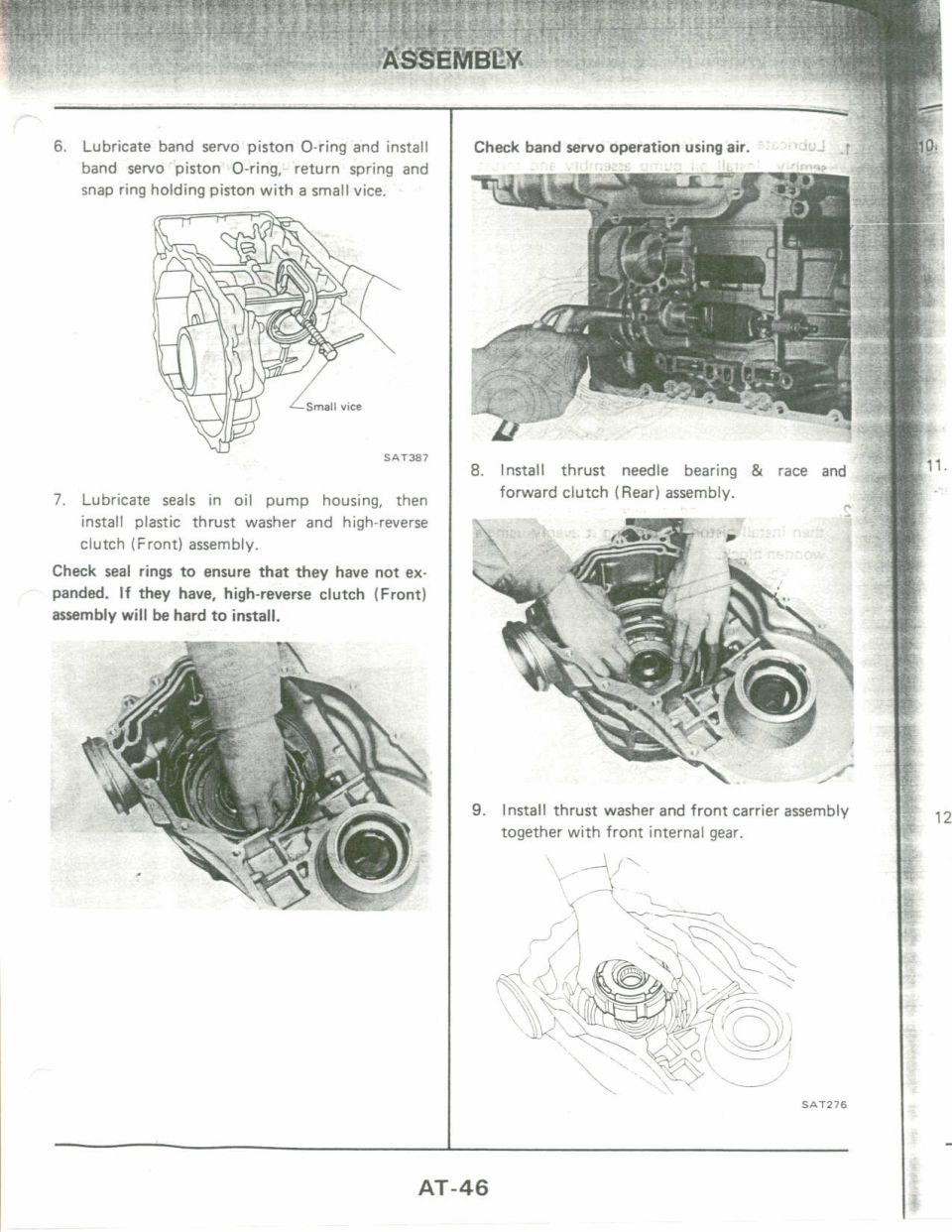

Transmission assembly manual page AT-46 with diagrams and photos…

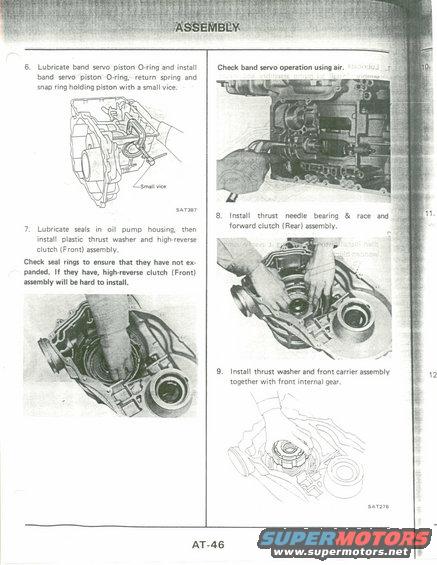

Scanned page from an automatic transmission service manual (page AT-46), showing assembly steps with line drawings and black-and-white photos of transmission internals including band servo piston, oil pump housing, thrust bearings, and clutch assemblies.
6. Lubricate band servo piston O-ring and install band servo piston O-ring, return spring and snap ring holding piston with a small vice. sATJa7 7. Lubricate seals in oil pump housing, then install plastic thrust washer and high-reverse clutch (Front) assembly. Check seal rings to ensure that they have not ex panded. If they have, highreverse clutch (Front) assembly will be hard to install. Install thrust needle bearing 8t race and forward clutch (Rear) assembly. 8. 9. install thrust washer and front carrier assembly together with front internal gear. 5Ar27e AT-46
