Nissan Micra Automatic Transmission Brake Band Adjustment & Manual Shaft AT-52
AT-52 brake band adjustment; torque anchor end pin 4-6 N-m, back off 2.5 turns, tighten lock nut 16-22 N-m; install manual shaft retaining pin.

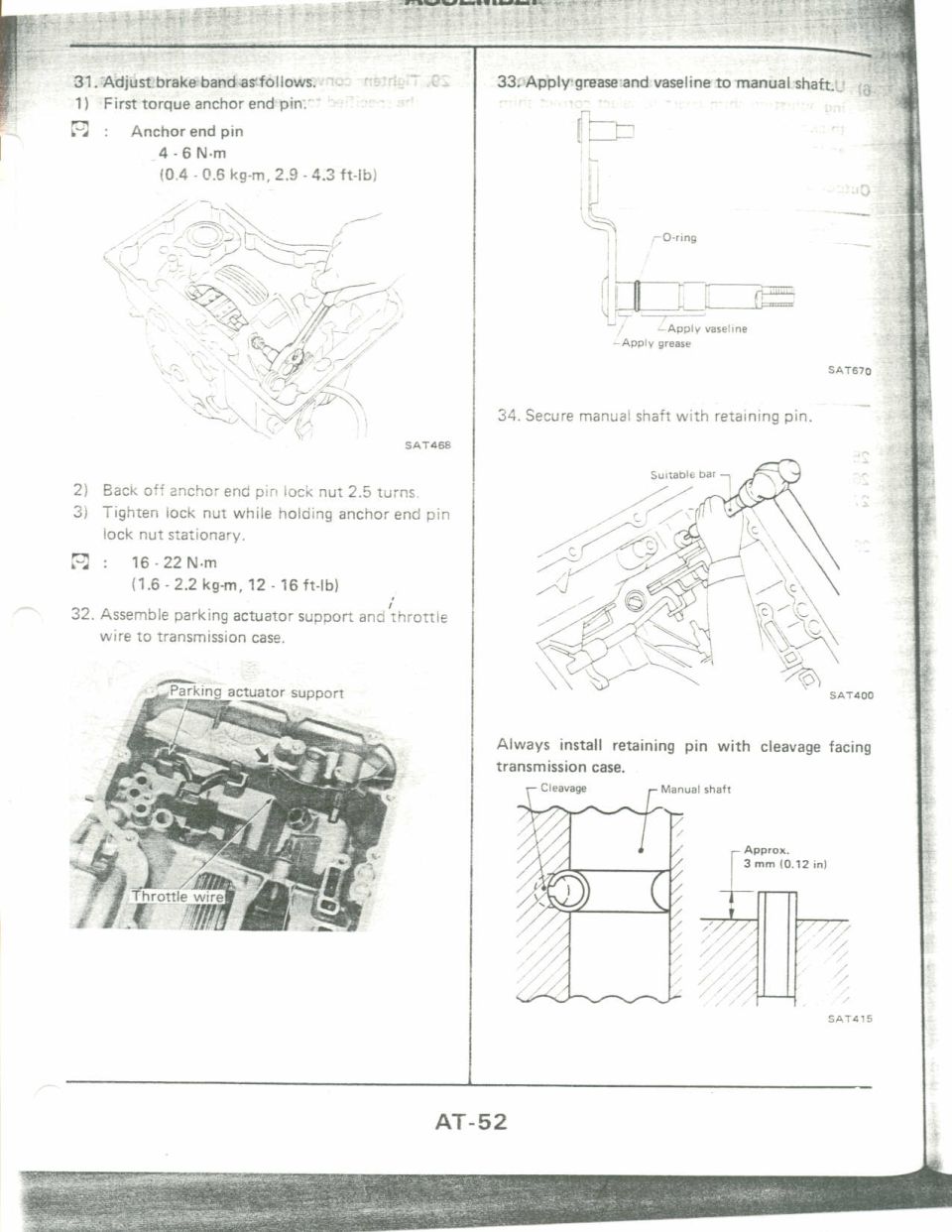

This is page AT-52 from a Nissan automatic transmission service manual section covering assembly procedures (steps 31 through 34). Step 31 describes brake band adjustment: first torque the anchor end pin to 4-6 N·m (0.4-0.6 kg-m, 2.9-4.3 ft-lb), then back the anchor end pin lock nut off 2.5 turns, and finally tighten the lock nut to 16-22 N·m (1.6-2.2 kg-m, 12-16 ft-lb) while holding the anchor end pin stationary. Step 32 covers assembling the parking actuator support and throttle wire to the transmission case, with a labeled photograph. Step 33 instructs applying grease and vaseline to the manual shaft, with an illustration (SAT670) showing where to apply vaseline, grease, and the O-ring location. Step 34 covers securing the manual shaft with a retaining pin using a suitable bar (illustration SAT400), with a caution that the retaining pin must always be installed with its cleavage facing the transmission case, driven to approximately 3 mm (0.12 in) depth (diagram SAT415). Readers can learn the exact brake band adjustment torque sequence and manual shaft installation details for this automatic transmission.
