Front axle service manual page with drive shaft photos and beari…

Front axle service manual page with drive shaft photos and bearing puller diagrams
Front axle service manual page with drive shaft photos and bearing puller diagramsOriginal file
Front axle service manual page with drive shaft photos and bearing puller diagrams

87 Service ManualView all 403

Service manual page AT-69: differential side bearing preload shim selection tables Service manual page AT-70 with transaxle gear part numbers and torque specs Unpainted tubular exhaust header and downpipe with braided flex section laid on concrete Service manual page AT-72 listing Kent-Moore special service tools for automatic transaxle work Service manual page: Section FA Front Axle & Front Suspension contents Exploded view of front axle and front suspension components with torque values Exploded view of front wheel hub and knuckle with drive shaft and bearings Front axle service manual page with drive shaft photos and bearing puller diagrams Front axle wheel hub and knuckle service manual page, page FA-5 Service manual page showing front axle wheel hub and knuckle assembly diagrams Front axle wheel hub and knuckle: bearing preload measurement and drive shaft install Exploded view of front drive shaft with CV joints, boots and snap rings Drive shaft disassembly and inspection instructions with figures Nissan drive shaft assembly service manual page FA-10 with CV boot diagrams Exploded view of front suspension strut and coil spring with torque specs Front suspension: coil spring/strut assembly orientation and transverse link ball joint inspection 403photos in this albumView all

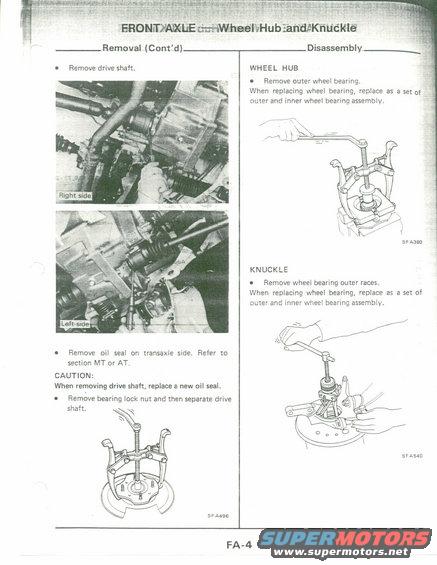

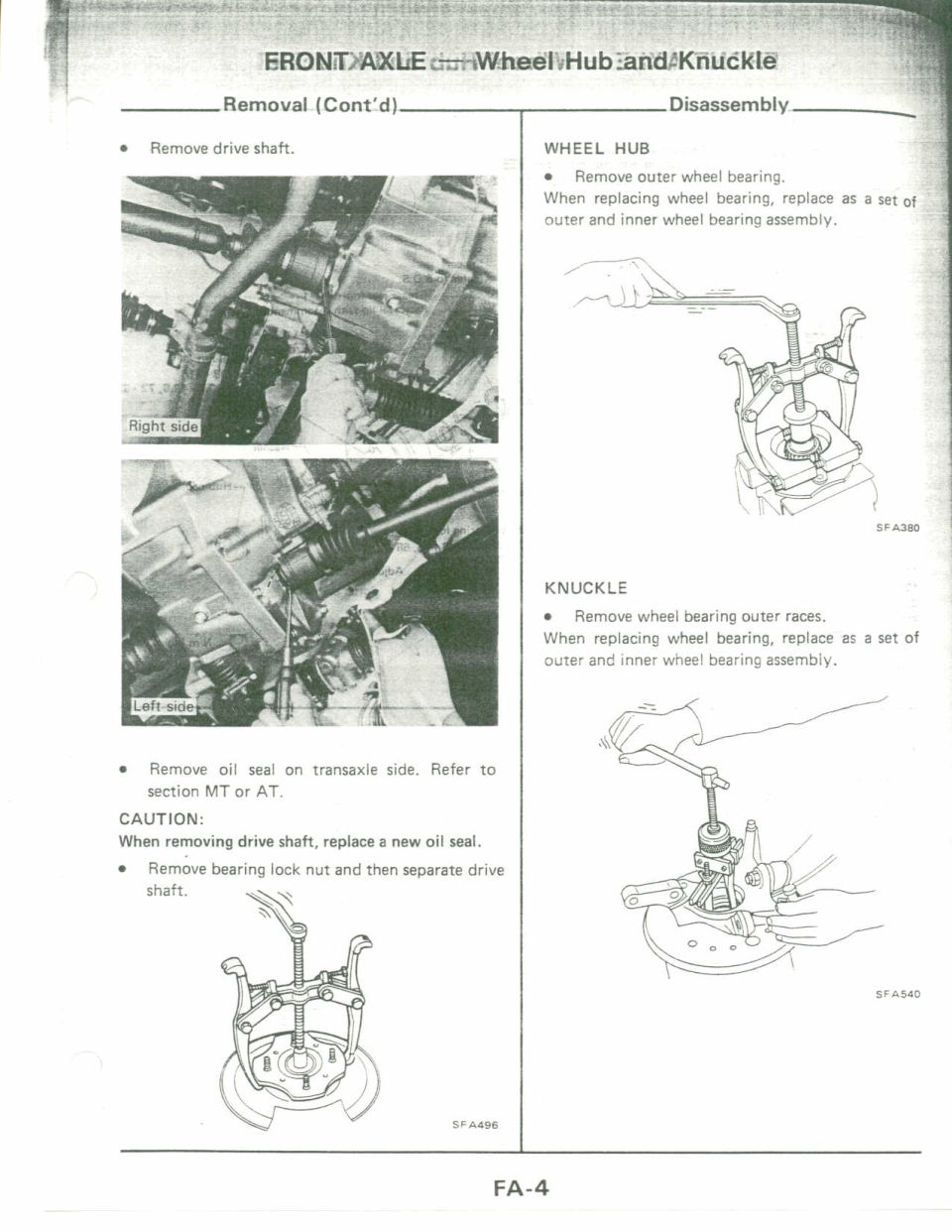

Scanned page FA-4 from a Nissan front axle service manual covering wheel hub and knuckle removal and disassembly, showing two photos of a CV drive shaft (right and left side) and line drawings of bearing pullers.

AI caption · Photo 257 of 412

~ n4 Removal (Cont'd) I Remove drive shaft. - Remove oil seal on transaxle side. Refer to section MT or AT, CAUTION: When removing drive shaft, replace a new oil seal. 0 Remove bearing lock nut and then separate drive shaft. SFAAQS 'ERGNWUE aHWhalivHub E'alidJ-Kukl Disassembly WHEEL HUB I Remove outer wheel bearing. When replacing wheel bearing, replace as a set of outer and inner wheel bearing assembly. / srAaau i KNUCKLE 0 Remove wheel bearing outer races, When replacing wheel bearing, replace as a set of outer and inner wheel bearing assembly smsau FA-4
