Nissan Micra Front Axle Wheel Bearing Preload & Drive Shaft Installation FA-7

Front axle wheel hub and knuckle: bearing preload measurement and drive shaft install

‹ ›

FA-7 front wheel bearing preload; rotation starting torque 0.8-2.7 N-m (15.7-54.9 N at wheel bolt); reselect spacer to adjust, install new cotter pin.

AI caption October 2005 · Photo 260 of 412

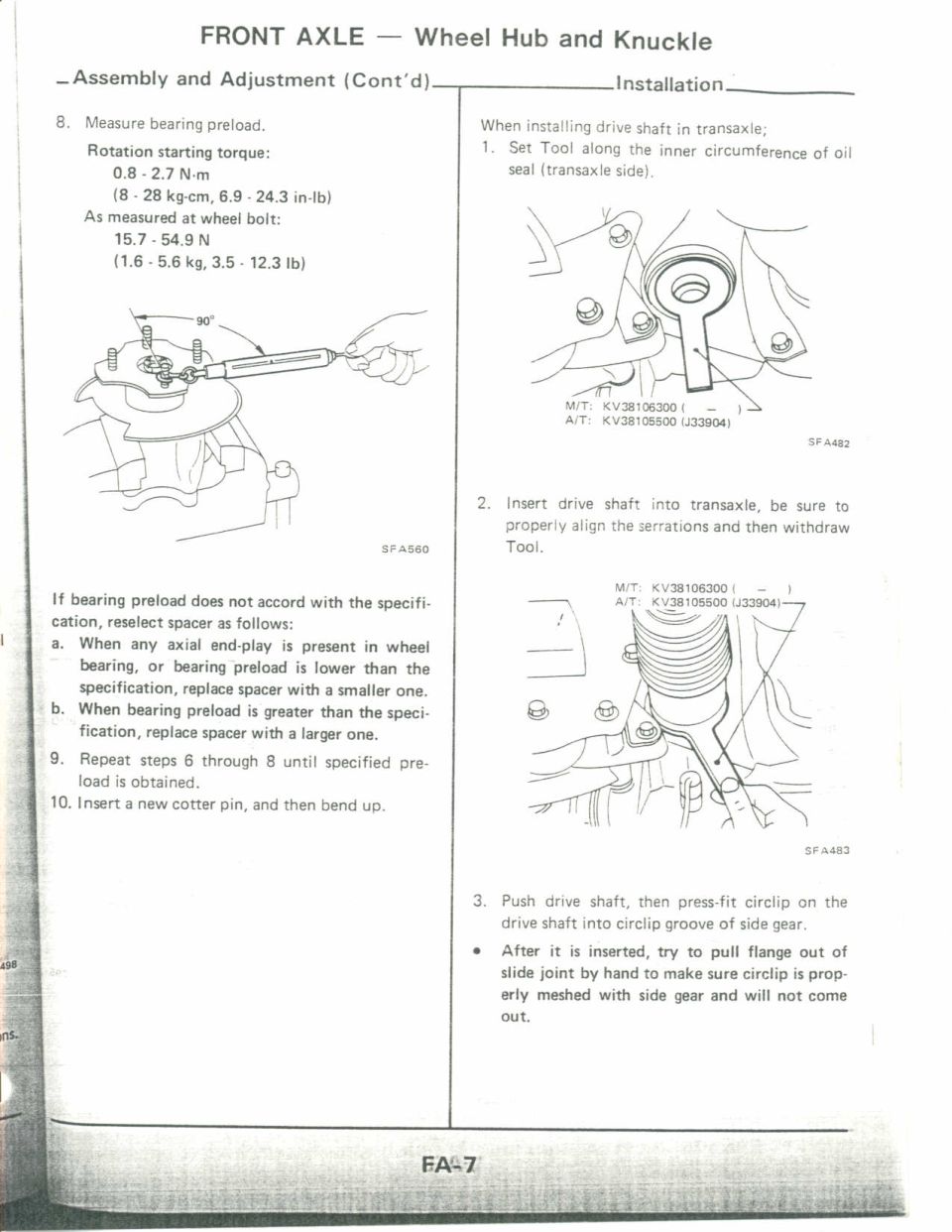

This is page FA-7 from a Nissan factory service manual section covering the Front Axle — Wheel Hub and Knuckle. The left column concludes the Assembly and Adjustment procedure: step 8 details measuring wheel bearing preload, specifying a rotation starting torque of 0.8-2.7 N·m (8-28 kg-cm, 6.9-24.3 in-lb) and, as measured at the wheel bolt with a spring scale, 15.7-54.9 N (1.6-5.6 kg, 3.5-12.3 lb). If preload is out of specification, the spacer must be reselected: a smaller spacer if end-play exists or preload is too low, a larger spacer if preload is too high. Steps 6-8 are repeated until the specified preload is achieved, then a new cotter pin is installed and bent up. The right column covers drive shaft installation into the transaxle: a seal-protector tool (M/T: KV38106300; A/T: KV38105500 / J33904) is set along the oil seal's inner circumference, the drive shaft is inserted with serrations aligned, the tool withdrawn, and the circlip press-fit into the side gear groove, verified by pulling the flange by hand. Illustrations SFA560, SFA482 and SFA483 accompany the text.
