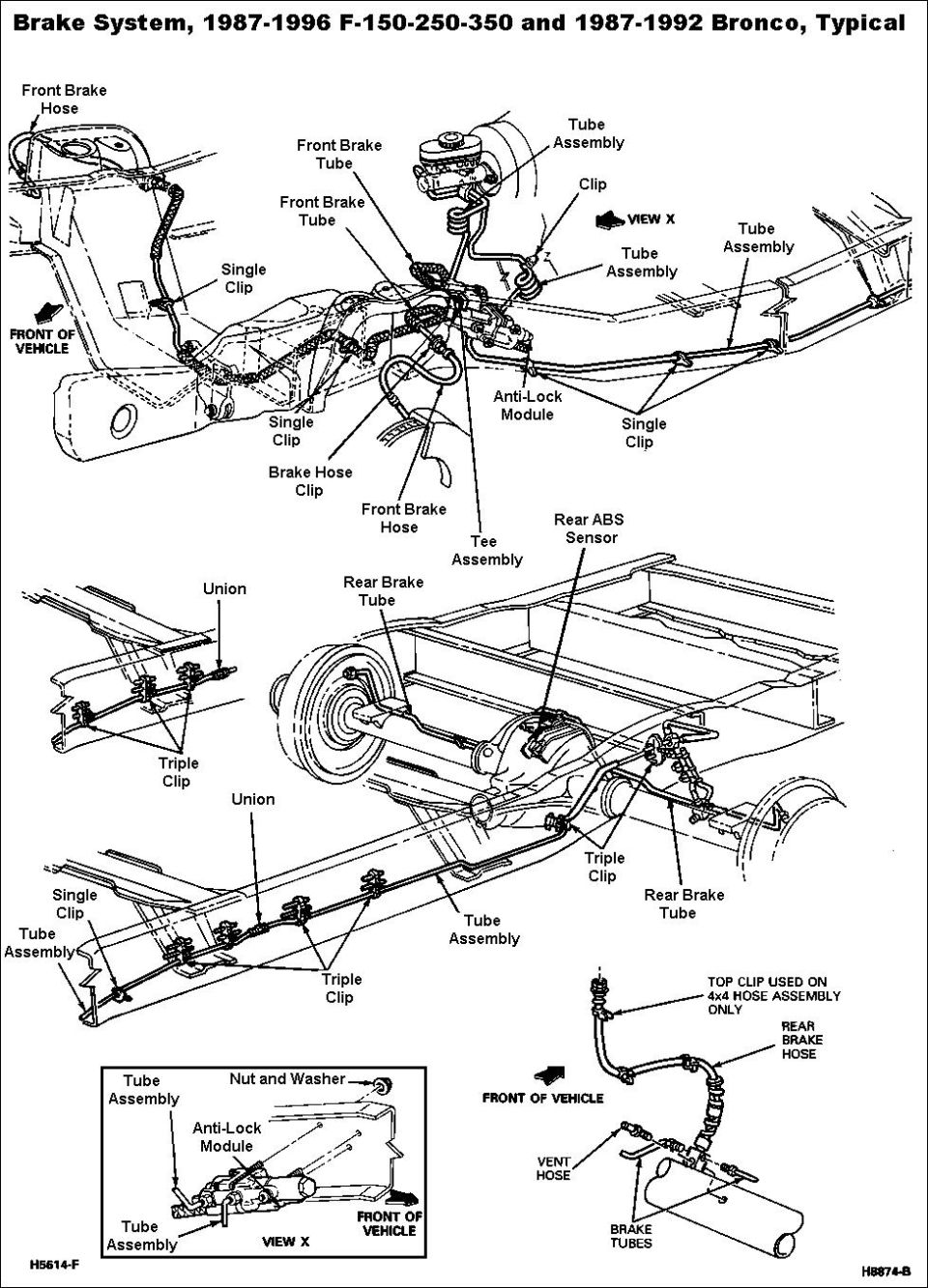

Brake system diagram for 1987-1996 F-150-250-350 and 1987-1992 B…

Brake Lines for RABS Trucks
IF THE IMAGE IS TOO SMALL, click it.

The two middle sections (showing the Union) & the bottom Right view apply to all '80-96 1/2-tons, EXCEPT the ABS sensor (DY1123, F85Z-9E731-AB) which applies to all '87-96 1/2-tons. The top view is only correct for '87-91; later trucks use a slightly different routing for the RHF brake line. The bottom Left (View X) only applies to '87-96 pickups under 8500GVWR & '87-92 Broncos.

See also:



For '93-96 Bronco ONLY, see this:

Owner caption January 2006 · Photo 1122 of 6546
