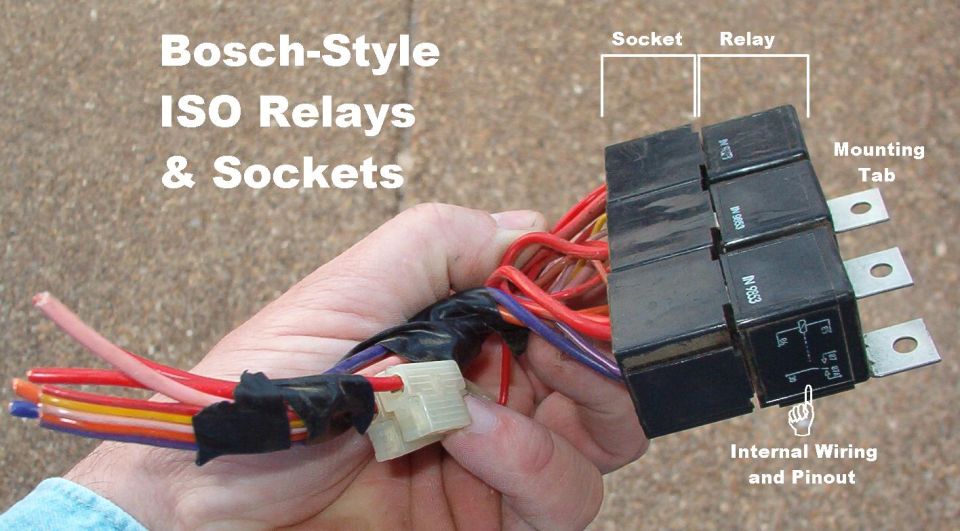

relayblock.jpg Relay Blocks

These slide-together relay sockets are from a cheap aftermarket alarm, but they can be used for almost anything.  These standard Bosch/ISO relays have mounting tabs, but not all do.  All share a pinout, including pin numbers.  The relay coil is between pins 85 & 86.  The common power contact is pin 30; normally closed (NC) is 87a (if present); normally open (NO) is 87.  The standard rating is 30A, but higher ratings are available with larger terminals.

See also:
[url=https://www.fordparts.com/FileUploads/CMSFiles/18376%20Pigtail%20Book%202016.pdf]MotorCraft 2016 Wiring Pigtail Guide[/url]

[url=https://www.supermotors.net/registry/media/507187][img]https://www.supermotors.net/getfile/507187/thumbnail/relays1.jpg[/img][/url]
relayblock.jpg | Hits: 4941 | Posted on: 3/16/06 | View original size (152.69 KB)

Relay Blocks

These slide-together relay sockets are from a cheap aftermarket alarm, but they can be used for almost anything. These standard Bosch/ISO relays have mounting tabs, but not all do. All share a pinout, including pin numbers. The relay coil is between pins 85 & 86. The common power contact is pin 30; normally closed (NC) is 87a (if present); normally open (NO) is 87. The standard rating is 30A, but higher ratings are available with larger terminals.

See also:
MotorCraft 2016 Wiring Pigtail Guide
