Ford Bronco Dana 30 Front Axle Exploded Parts Diagram - FoMoCo

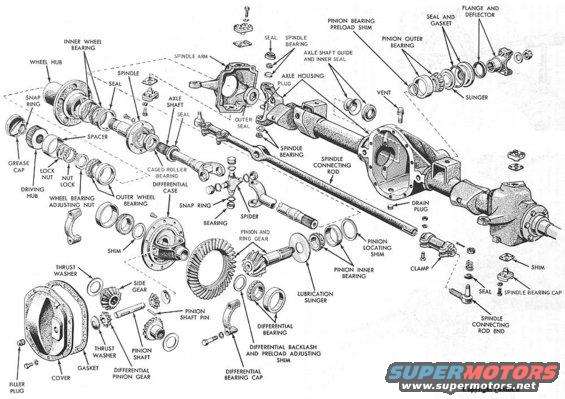

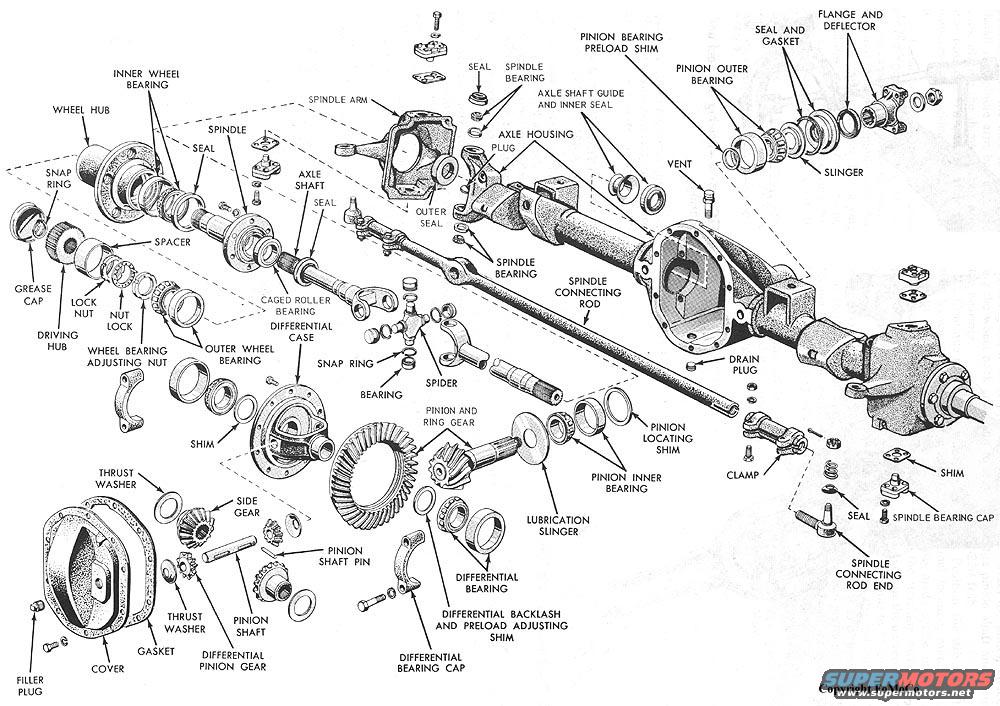

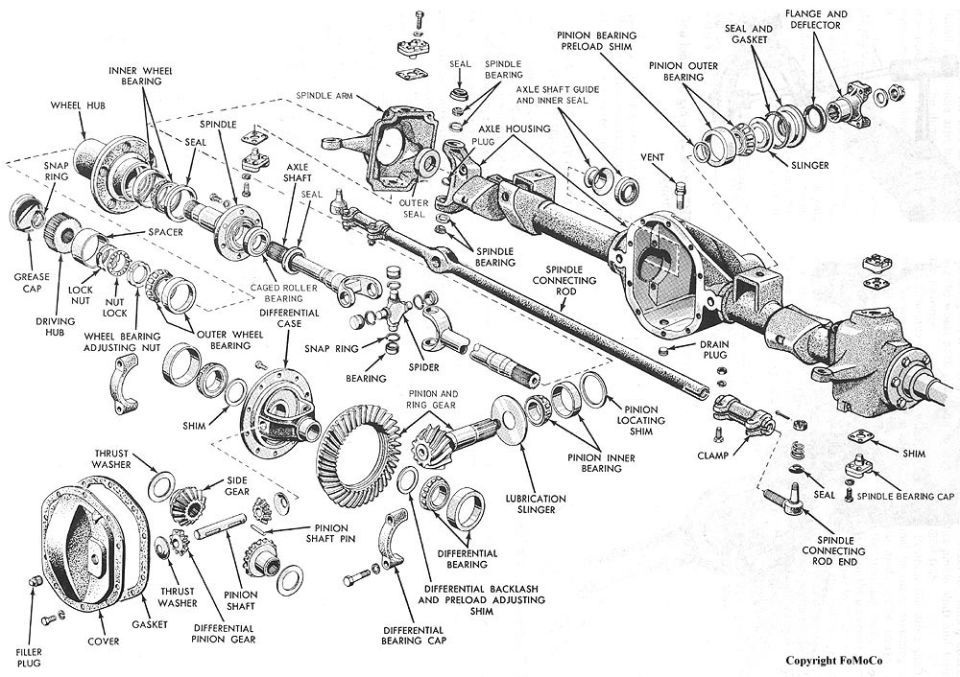

This document is an exploded parts diagram of a front drive axle assembly, copyrighted by FoMoCo (Ford Motor Company), uploaded as "Dana30.jpg" to a 1974 Ford Bronco gallery. The illustration shows the complete front axle disassembled with labeled callouts for every major component. On the wheel end it identifies the wheel hub, inner and outer wheel bearings, seals, snap ring, spacer, grease cap, lock nut, nut lock, driving hub, wheel bearing adjusting nut, spindle, spindle arm, spindle bearings, and axle shaft with caged roller bearing. The differential section labels the differential case, side gears, differential pinion gears, pinion shaft and pin, thrust washers, spider, pinion and ring gear, pinion inner and outer bearings, pinion bearing preload shim, pinion locating shim, differential backlash and preload adjusting shims, differential bearings and bearing caps, lubrication slinger, flange and deflector, slinger, seal and gasket, cover, gasket, and filler and drain plugs. Steering-related parts shown include the spindle connecting rod, connecting rod end, clamp, seals, shims, and spindle bearing cap. The axle housing with vent, plug, and axle shaft guide/inner seal is also depicted. No part numbers, torque values, or year/model applicability text appear; the diagram serves as a visual parts identification and assembly-order reference.
