What components are shown in the hub and wheel bearing area of this Dana 44 diagram?

The diagram labels the spindle bearing & seal, spindle, drum brake assembly, inner wheel bearings, outer wheel bearings, hub, and two lock out assemblies.

Is a limited-slip differential shown?

Yes, a Trac-Loc carrier is shown exploded at the lower right of the diagram.

What steering/knuckle parts are identified?

The knuckle is shown with the upper ball joint and lower ball joint labeled, along with the flange and flange slinger.

Does this diagram list part numbers or torque specs?

No. It is a labeled exploded view only; no part numbers, torque values, or year/model applicability text appear on the document.

Home/ Registry/ Ford/ Bronco/ 1966-1977/ 1974 Ford Bronco/ Photo supermotors.net/registry/media/307967

Ford Dana 44 Front Axle Exploded Parts Diagram - Hub, Knuckle, Trac-Loc, Diff

Exploded diagram of front drive axle, knuckle, hub, and differential with labels

‹ ›

Exploded parts diagram of the front drive axle showing spindle, knuckle, ball joints, lockout hubs, and differential carrier.

AI caption April 2006 · Photo 86 of 206

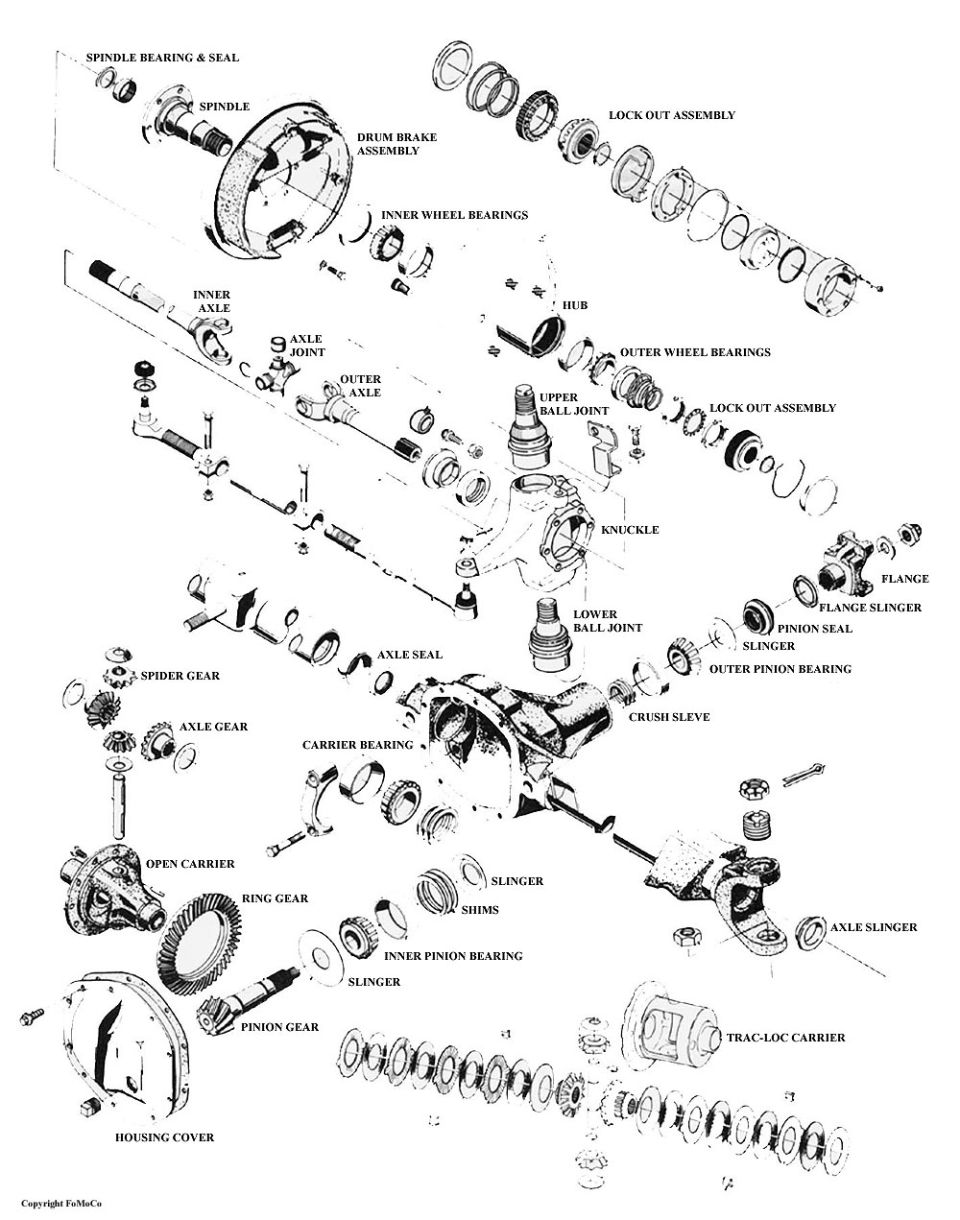

This document is a Ford Motor Company (FoMoCo) exploded parts diagram of a front drive axle assembly, uploaded to a 1974 Ford Bronco gallery under the filename "Dana44.jpg". The illustration shows the complete axle disassembled and labeled, including the hub and spindle area (spindle bearing & seal, spindle, drum brake assembly, inner and outer wheel bearings, lock out assemblies, hub, flange, and flange slinger), the axle shafts (inner axle, axle joint, outer axle), the steering knuckle with upper and lower ball joints, and the differential internals (spider gears, axle gears, open carrier, ring gear, pinion gear, inner and outer pinion bearings, pinion seal, crush sleeve [spelled "CRUSH SLEVE"], carrier bearings, shims, and various slingers). A Trac-Loc limited-slip carrier is also shown exploded with its clutch pack components, along with the axle housing cover and axle seals. The diagram lets a reader see the correct order and orientation of every component when rebuilding the axle, hubs, brakes, knuckles, or differential, though no part numbers, torque specifications, or year/model applicability text appear on the drawing itself.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What components are shown in the hub and wheel bearing area of this Dana 44 diagram?: The diagram labels the spindle bearing & seal, spindle, drum brake assembly, inner wheel bearings, outer wheel bearings, hub, and two lock out assemblies.
Does the diagram show the differential internals?: Yes. It labels the spider gears, axle gears, open carrier, ring gear, pinion gear, inner and outer pinion bearings, pinion seal, crush sleeve, carrier bearing, shims, slingers, and the housing cover.
Is a limited-slip differential shown?: Yes, a Trac-Loc carrier is shown exploded at the lower right of the diagram.
What steering/knuckle parts are identified?: The knuckle is shown with the upper ball joint and lower ball joint labeled, along with the flange and flange slinger.
Does this diagram list part numbers or torque specs?: No. It is a labeled exploded view only; no part numbers, torque values, or year/model applicability text appear on the document.
