1974 Ford Bronco Front Suspension Exploded Parts Diagram - Coil Spring & Axle

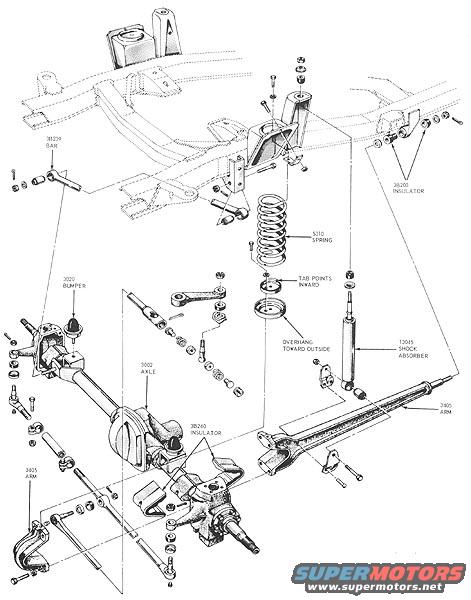

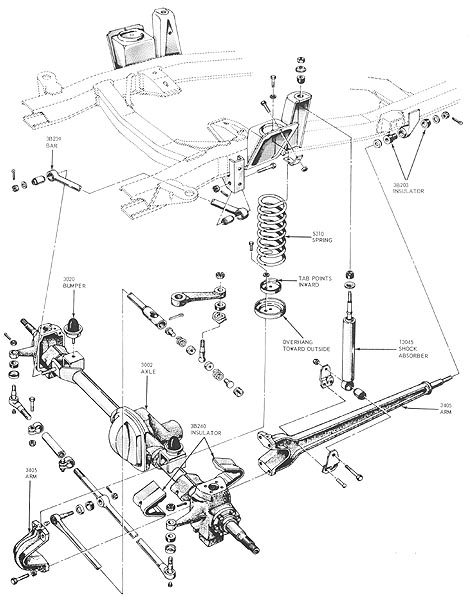

This document is an exploded parts diagram of a Ford front suspension assembly, uploaded to a 1974 Ford Bronco gallery. The line-art illustration shows the front frame section with the coil-spring front suspension components separated for identification. Labeled components (with Ford basic part group numbers) include the stabilizer/track bar (3B239 BAR), spring upper insulator (3B203 INSULATOR), coil spring (5310 SPRING), shock absorber (18045 SHOCK ABSORBER), axle bump stop (3020 BUMPER), the front drive axle assembly (3002 AXLE), a lower spring insulator (3B260 INSULATOR), and two arms (2405 ARM and 3405 ARM), the latter appearing to be the radius/steering arms. Assembly notes on the diagram instruct that the spring seat 'TAB POINTS INWARD' and that a component's 'OVERHANG TOWARD OUTSIDE.' The drawing also depicts associated hardware — bolts, nuts, washers, bushings, U-bolts, tie-rod ends, and steering linkage — though these smaller fasteners are not individually numbered. A reader can use this diagram to identify front suspension part groups by Ford basic number, understand how the coil spring, insulators, shock, and radius arm assemble onto the frame and axle, and note the correct orientation of the spring seat during installation.
