What part number is the Bronco windshield washer reservoir shown in this diagram?

The washer reservoir (bottle) is identified as part number 17K608, with cap 17632.

Does this diagram cover more than one model year?

Yes. It shows two configurations with year callouts: one labeled "1968/" and another assembly labeled "1966/67".

What wiring or harness part numbers appear in this diagram?

Wiring/harness-related numbers include 14401, 14405, 14290, 14A068, 17A605, 17A674, 17A601, and 17A613.

Are the numbers in this diagram official Ford part numbers for ordering?

The footer states "Numbers for reference use only, Copyright FoMoCo," so they are Ford reference/basic part numbers rather than guaranteed service part numbers.

Home/ Registry/ Ford/ Bronco/ 1966-1977/ 1974 Ford Bronco/ Photo supermotors.net/registry/media/308008

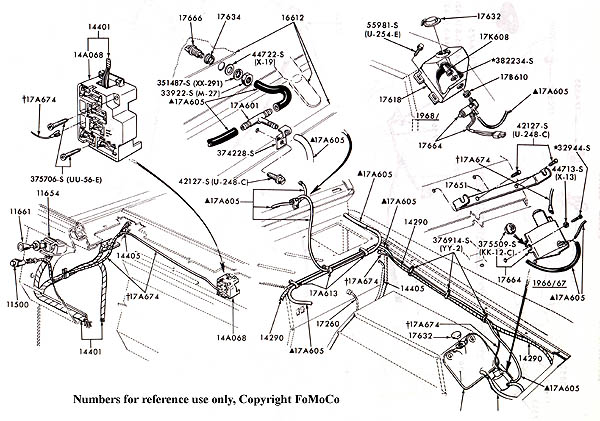

Ford Bronco Windshield Washer Bottle & Wiring Exploded Parts Diagram 1966-68

Exploded diagram of engine compartment wiring harness and connectors with part numbers

‹ ›

Exploded parts/routing drawing of an engine-compartment wiring harness with connectors and Ford part numbers.

AI caption April 2006 · Photo 127 of 206

This is a scanned FoMoCo (Ford Motor Company) exploded parts diagram showing the windshield washer bottle/reservoir system and related wiring/hose routing, uploaded to the gallery of a 1974 Ford Bronco. The drawing depicts two configurations distinguished by year annotations: one labeled "1968/" (upper right, showing the washer reservoir 17K608 with cap 17632 and pump-related hardware) and one labeled "1966/67" (lower right assembly). Each component is identified by Ford basic part numbers and hardware/fastener numbers with size codes, including reservoir 17K608, caps 17632, jar bracket parts 17618 and 178610, nozzle/hose parts 17666, 17634, 17651, 17664, 17260, hoses/wiring 17A605, 17A674, 17A601, 17A613, wiring harness parts 14401, 14405, 14290, 14A068, and switch/relay items 11500, 11654, 11661. Fasteners include 55981-S (U-254-E), 44722-S (X-19), 382234-S, 351487-S (XX-291), 33922-S (M-27), 374228-S, 42127-S (U-248-C), 32944-S, 44713-S (X-13), 375706-S (UU-56-E), 376914-S (YY-2), and 375509-S (KK-12-C). The footer states "Numbers for reference use only, Copyright FoMoCo." A reader can use this to identify part numbers and assembly relationships for the early Bronco windshield washer system.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What part number is the Bronco windshield washer reservoir shown in this diagram?: The washer reservoir (bottle) is identified as part number 17K608, with cap 17632.
Does this diagram cover more than one model year?: Yes. It shows two configurations with year callouts: one labeled "1968/" and another assembly labeled "1966/67".
What fastener numbers are shown for mounting the washer components?: Fasteners called out include 55981-S (U-254-E), 44722-S (X-19), 382234-S, 351487-S (XX-291), 33922-S (M-27), 374228-S, 42127-S (U-248-C), 32944-S, 44713-S (X-13), 375706-S (UU-56-E), 376914-S (YY-2), and 375509-S (KK-12-C).
What wiring or harness part numbers appear in this diagram?: Wiring/harness-related numbers include 14401, 14405, 14290, 14A068, 17A605, 17A674, 17A601, and 17A613.
Are the numbers in this diagram official Ford part numbers for ordering?: The footer states "Numbers for reference use only, Copyright FoMoCo," so they are Ford reference/basic part numbers rather than guaranteed service part numbers.
