What does this diagram show?

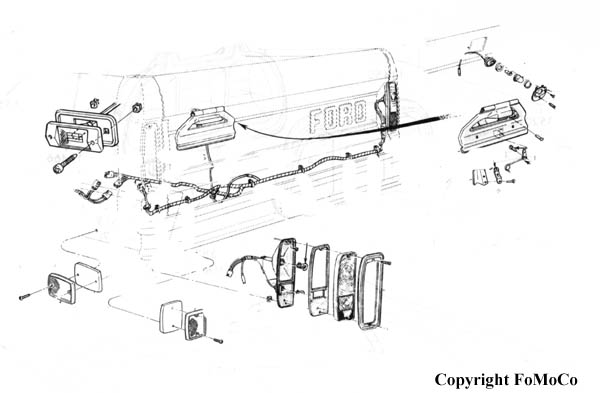

It is a FoMoCo exploded parts illustration of the rear lighting on an early Ford Bronco/truck, including the taillight assembly (housing, gasket, lens, bezel), side marker/reflector lamps, license plate lamp parts, and the rear wiring harness routing.

In what order do the taillight components assemble?

The exploded view shows the taillight housing with wiring/socket first, followed by a gasket, the lens, and an outer bezel/trim ring secured with fasteners.

Does this diagram list Ford part numbers?

No. No part numbers, callout numbers, or legend text are legible in this scan; it is a visual assembly reference only.

Does the diagram show how the rear wiring harness routes?

Yes. It illustrates the rear harness running across the back of the body/frame behind the tailgate, branching to the left and right rear lamp assemblies and the license plate lamp area.

Home/ Registry/ Ford/ Bronco/ 1966-1977/ 1974 Ford Bronco/ Photo supermotors.net/registry/media/308003

1974 Ford Bronco Taillight & Rear Lamp Exploded Parts Diagram (FoMoCo)

Exploded diagram of rear tail light and wiring harness routing on truck bed

‹ ›

Exploded parts and harness-routing drawing of rear tail lights and the bed wiring harness on a Ford pickup.

AI caption April 2006 · Photo 122 of 206

This document is a scanned exploded-view parts illustration from a Ford factory parts reference (marked "Copyright FoMoCo"), uploaded to a 1974 Ford Bronco gallery as "taillight.jpg." The drawing depicts the rear lighting system of an early Ford Bronco/truck body. Shown are the rear of the vehicle with the "FORD" lettered tailgate, the rear wiring harness and its routing across the frame rails to both rear corners, side marker or reflector lamp assemblies on the left and right rear quarters, license plate lamp hardware, and an exploded stack of taillight assembly components — housing, bulb/socket wiring, gasket, lens, and bezel/trim ring with fasteners. Additional small marker or reflector lamps and their lenses and gaskets are shown exploded at the lower left. A reader can learn how the rear lamp assemblies fit together, the order of gaskets, lenses and bezels, and how the taillight wiring harness routes along the rear of the body. The scan contains no legend, callout numbers, or part numbers that are legible, so it serves primarily as an assembly-order and component-identification visual reference rather than a parts-number lookup.
