What wire color is used at connectors C461 and C462?

Both connectors list Terminal 02 with wire color BK (black).

Which connector is the luggage compartment release solenoid/ajar switch?

C478, shown at the rear of the vehicle in the full body view illustration.

What connectors make up the LF door module?

The LF door module is shown as connectors C518, C519, and C520.

Home/ Registry/ Mercury/ Grand Marquis/ 1992-1997/ “The "LSE S/C"”/ Photo supermotors.net/registry/media/404346

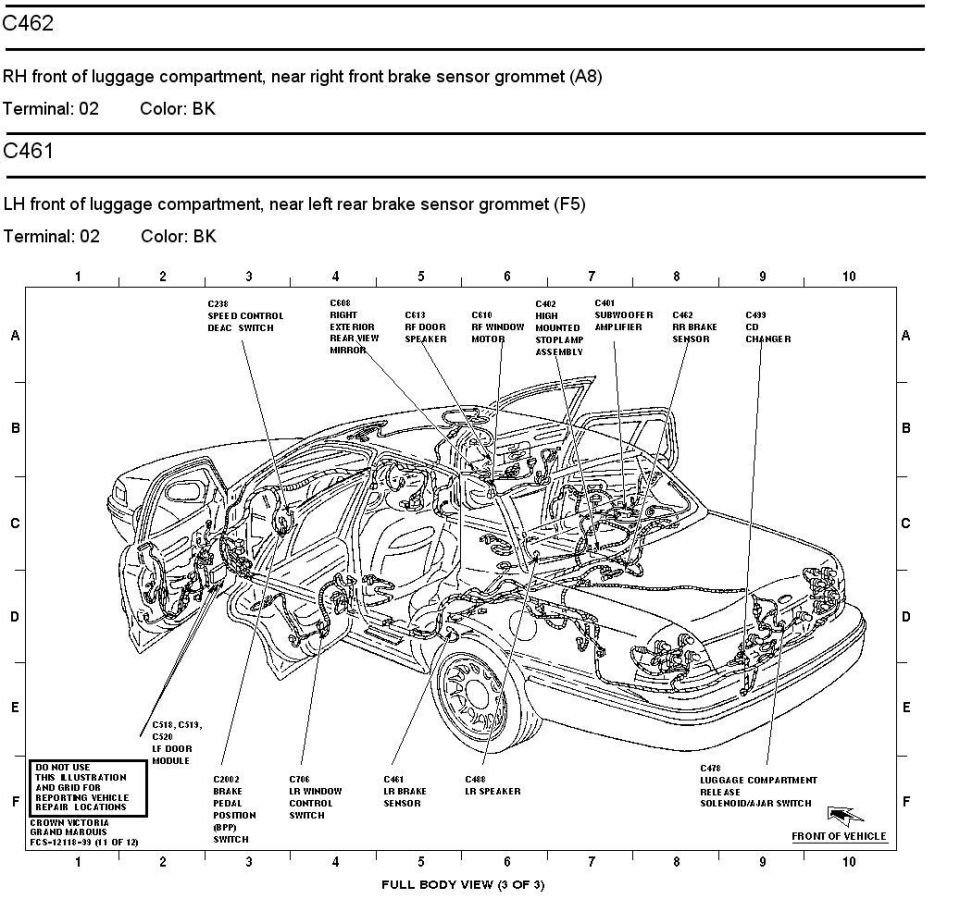

Crown Victoria/Grand Marquis Rear ABS Wheel Sensor Connectors C461 & C462 Location

Service manual full body view showing connector and component locations on a sedan with a grid index

‹ ›

Crown Victoria service-manual body-view illustration mapping connector and component locations with a labeled grid index.

AI caption July 2006 · Photo 194 of 1452

This manual page from the Ford Crown Victoria / Mercury Grand Marquis wiring/connector locator guide (publication FCS-12118-99, sheet 11 of 12) documents the physical locations of connectors C461 and C462, the rear wheel brake (ABS) sensor connectors. C462 (RH rear brake sensor) is located at the RH front of the luggage compartment near the right front brake sensor grommet at grid location A8; C461 (LH rear brake sensor) is at the LH front of the luggage compartment near the left rear brake sensor grommet at grid F5. Both connectors have Terminal 02 with wire color BK (black). The lower two-thirds of the page is 'Full Body View (3 of 3)', a lettered/numbered grid illustration of the car showing rear-half connector locations including C238 speed control deactivation switch, C608 right exterior mirror, C613 RF door speaker, C610 RF window motor, C402 high-mounted stoplamp, C401 subwoofer amplifier, C499 CD changer, C518/C519/C520 LF door module, C2002 brake pedal position switch, C706 LR window control switch, C488 LR speaker, and C478 luggage compartment release solenoid/ajar switch. A note warns not to use the illustration grid for reporting vehicle repair locations.

This document covers 1999, which may differ from this 1996 Mercury Grand Marquis.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is connector C462 located on the Crown Victoria / Grand Marquis?: C462 (RR brake sensor) is at the RH front of the luggage compartment, near the right front brake sensor grommet, grid location A8.
Where is connector C461 located?: C461 (LR brake sensor) is at the LH front of the luggage compartment, near the left rear brake sensor grommet, grid location F5.
What wire color is used at connectors C461 and C462?: Both connectors list Terminal 02 with wire color BK (black).
Which connector is the luggage compartment release solenoid/ajar switch?: C478, shown at the rear of the vehicle in the full body view illustration.
What connectors make up the LF door module?: The LF door module is shown as connectors C518, C519, and C520.
