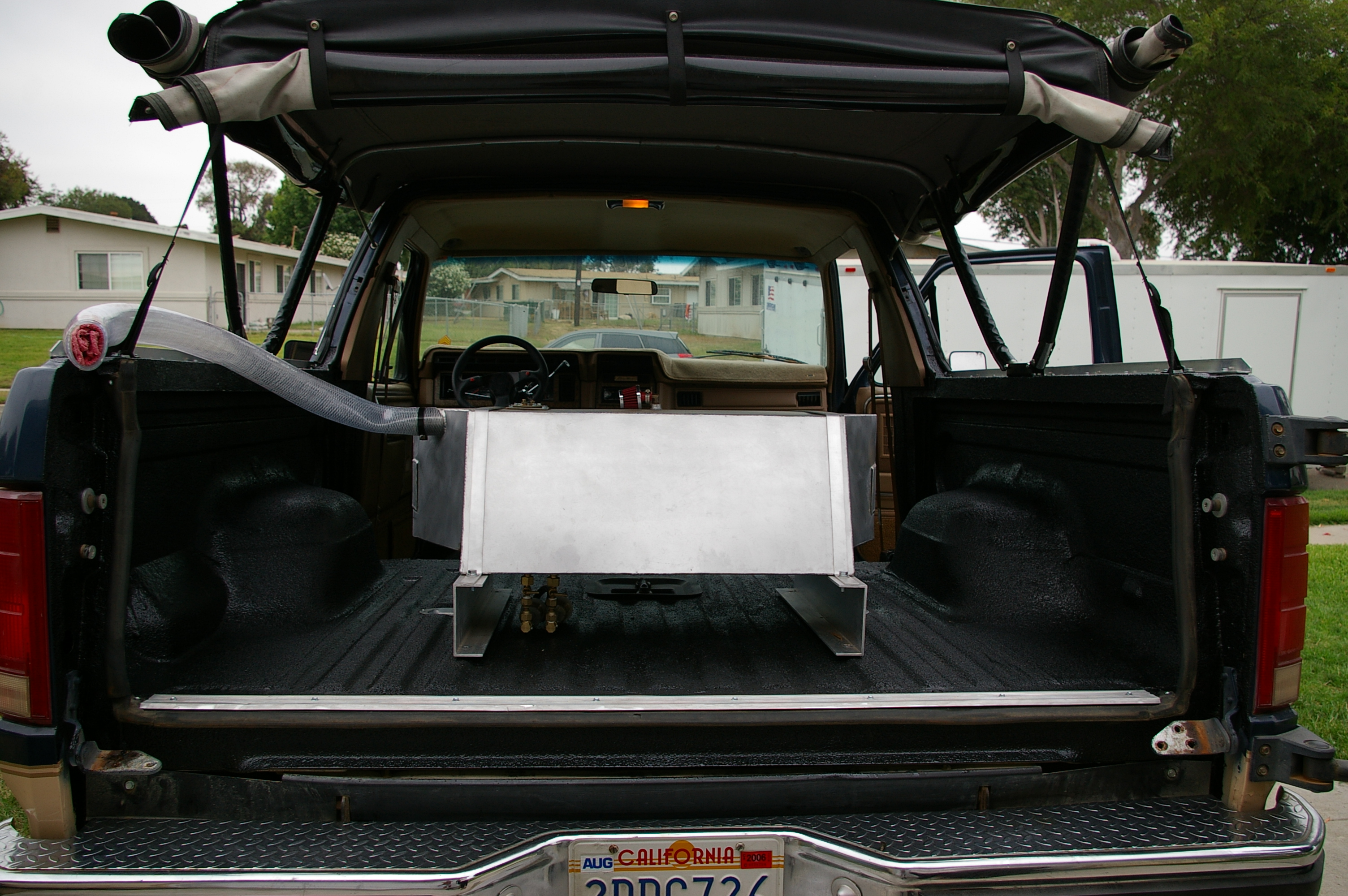

Tank with plumbing visible, and filler neck...
2 Petcocks, 1 for the gravity feed to the main tank, 1 for the aux fuel hose, connected to a electric fuel pump, with the ability to hook up 10 feet of fuel line to fill other vehicles, motorcycles, etc.

I ran the gravity feed to the filler neck on the Bronco main tank, now when the main gets low, i flop the lever and refill with the Aux...

Both tanks have replaceable, clear filters located after the petcocks, leading into the fuel lines
