Disassembled 1997 Ford F250/F350 gasoline instrument cluster cir…

97 HD Cluster
IF THE IMAGE IS TOO SMALL, click it.

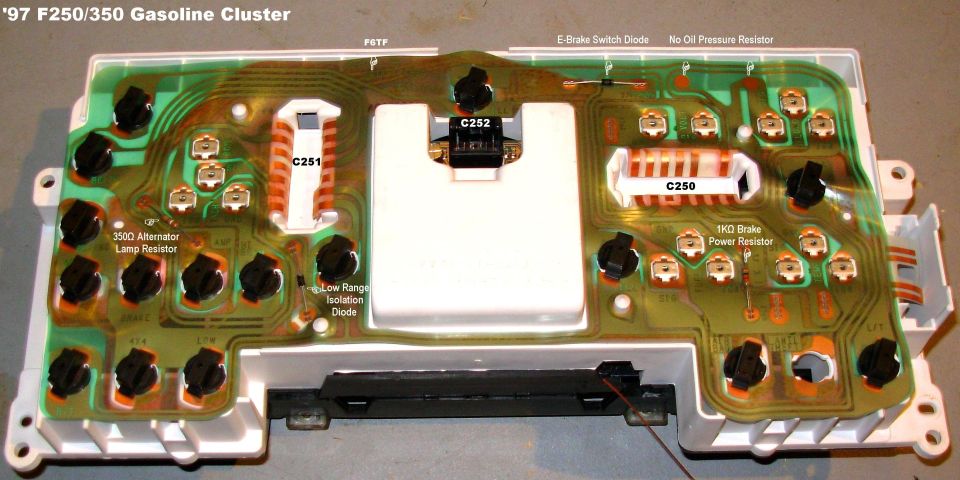

Note the lack of a resistor for the oil pressure gauge. Modifying this cluster to show true oil pressure is different because the resistor is integrated into the gauge head. The gauge head would have to be swapped for an older one & then the sender installed in place of the pressure switch.

But it can still have a low fuel light.
