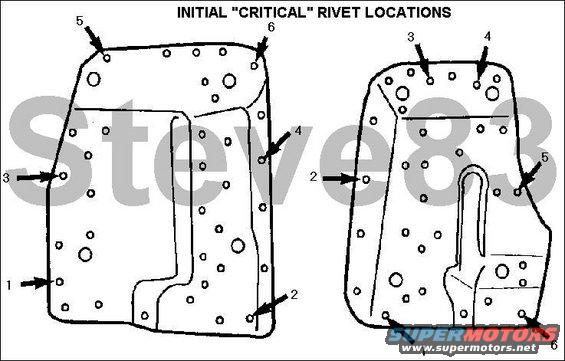

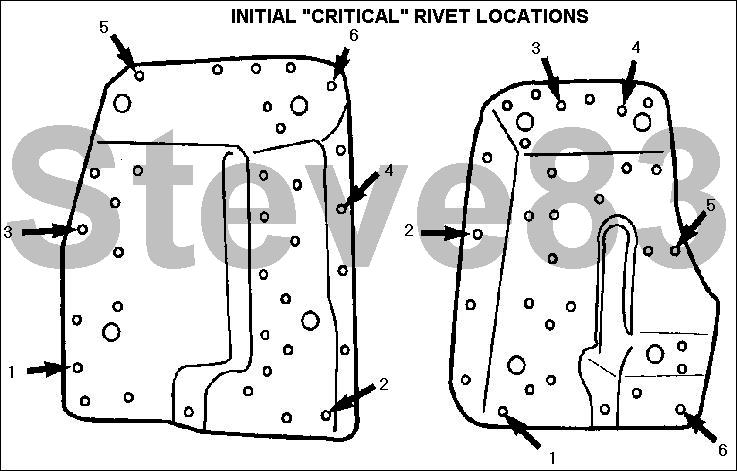

Diagram labeling initial critical rivet locations on reinforceme…

16.b. Drill the remaining twenty-seven (27) 1/4" diameter holes in the reinforcement and floor pan.

c. Install the remaining twenty-seven (27) pop rivets.

d. Remove the (4) seat track mounting bolts and flat washers.

17. Repeat the above procedure for the right hand reinforcement, if required.

18. Spray Super Seal on top of both reinforcements and about 1" (25.4 mm) beyond the edge of the reinforcements.

19. Replace the carpets/mats.

20. Replace both seats.

21. Raise the vehicle and spray Super Seal over the bottom side of the floor pan to cover all cracks and pop rivets.
