Transfer case opened up with labels for chain, sprocket, ATF fil…

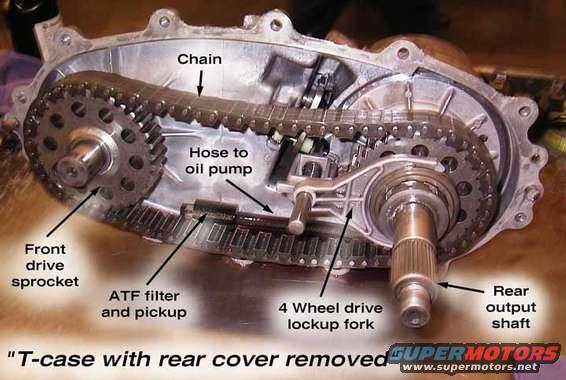

Annotated photo of a transfer case on a bench with the rear cover removed, exposing the drive chain, front drive sprocket, ATF filter and pickup, oil pump hose, four-wheel-drive lockup fork and splined rear output shaft. Overlaid text labels each component and captions the image "T-case with rear cover removed".
Front drive sprocket ATF filter f-nl! andplckup "T-case with rear cover removed"
