Ford Crown Victoria & Grand Marquis Battery Junction Box Fuse & Relay Chart

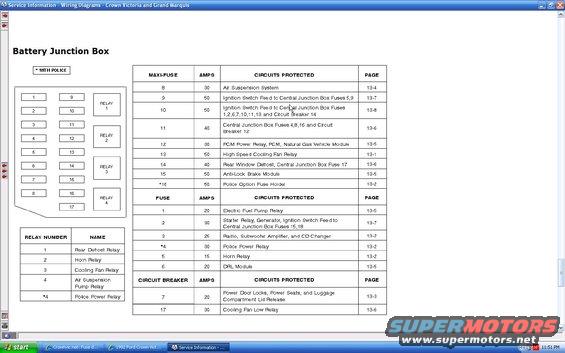

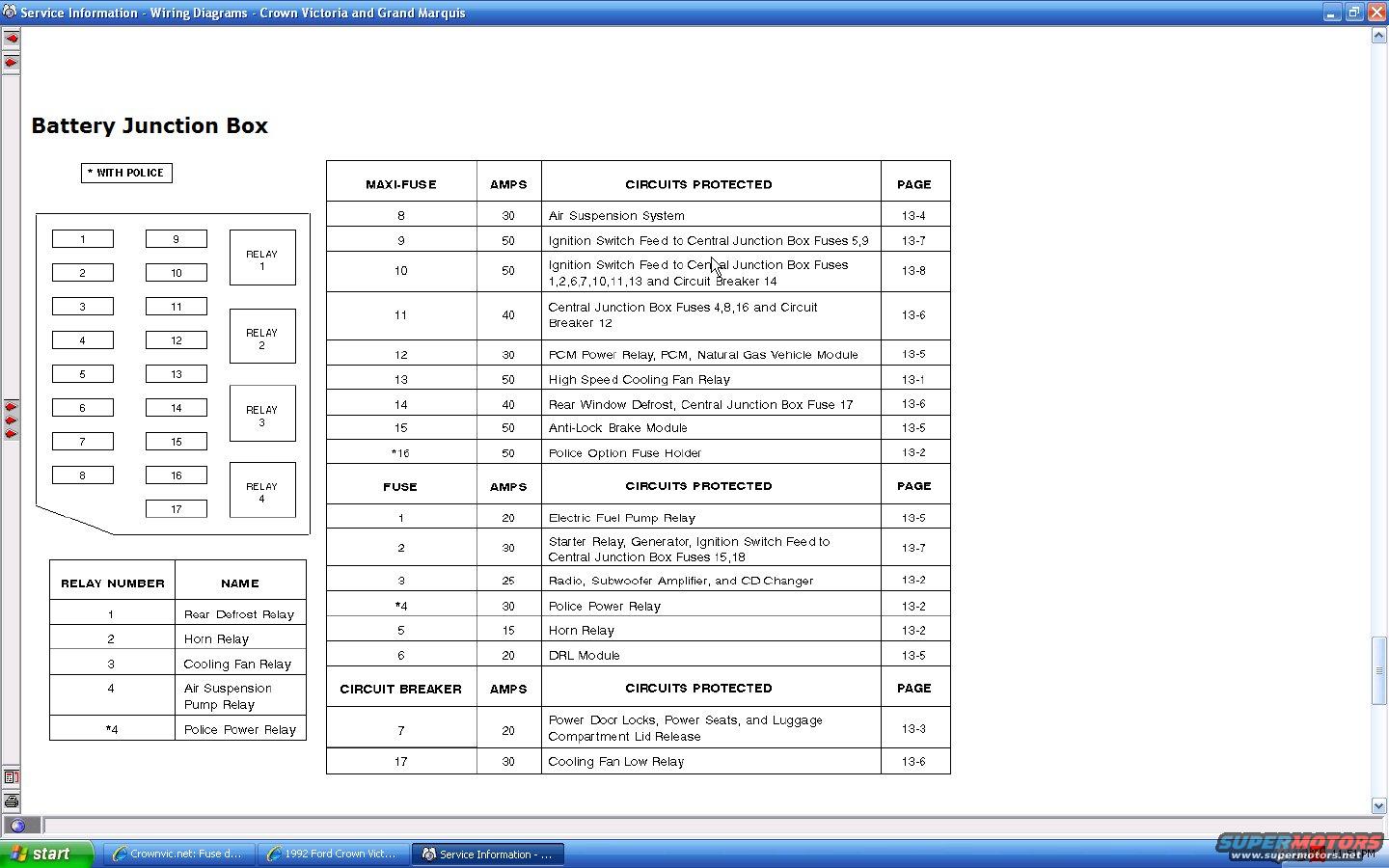

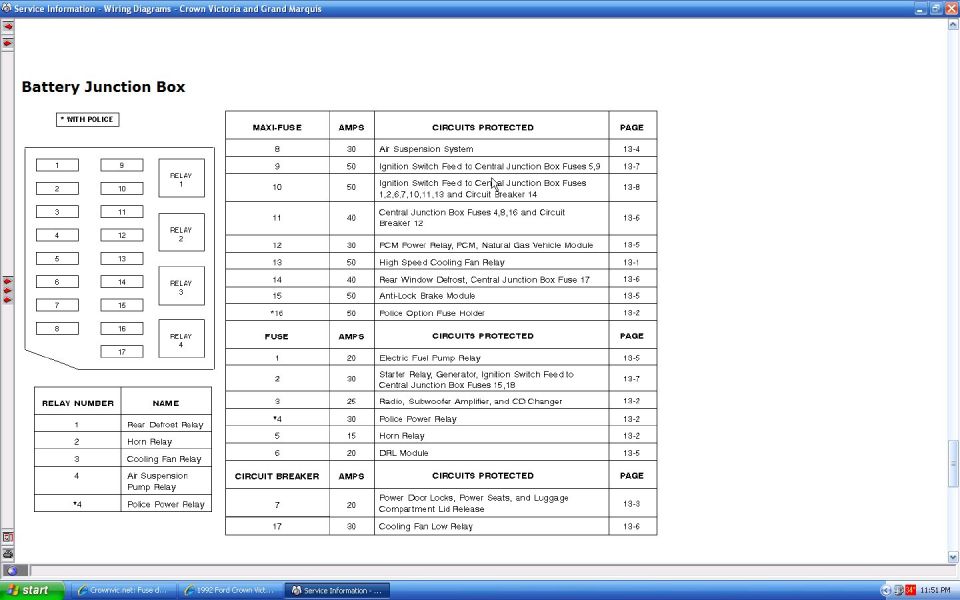

This document is a screenshot from a Ford Service Information wiring diagram source titled 'Wiring Diagrams - Crown Victoria and Grand Marquis.' It shows the Battery Junction Box (underhood fuse/relay panel) layout and legend. A diagram depicts fuse positions 1-17 in two columns alongside four relay positions (Relay 1-4). A relay legend identifies Relay 1 as the Rear Defrost Relay, Relay 2 as the Horn Relay, Relay 3 as the Cooling Fan Relay, and Relay 4 as the Air Suspension Pump Relay (or, with the police package, the Police Power Relay). Three tables list maxi-fuses (positions 8-16, 30-50 amps) covering circuits such as the air suspension system, ignition switch feeds to the Central Junction Box, PCM power relay, high speed cooling fan relay, rear window defrost, anti-lock brake module, and police option fuse holder; regular fuses (positions 1-6, 15-30 amps) covering the electric fuel pump relay, starter relay/generator, radio/subwoofer amplifier/CD changer, police power relay, horn relay, and DRL module; and circuit breakers (positions 7 and 17) for power door locks/seats/luggage compartment lid release and the cooling fan low relay. Each row references a wiring diagram page number (13-1 through 13-8). Entries marked with an asterisk apply only to police-package vehicles.
