Ford Crankshaft Position Sensor Location & Screw Torque Diagram (1992 Crown Vic)

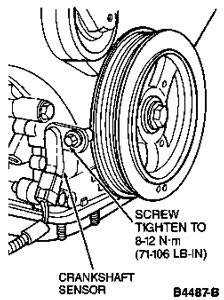

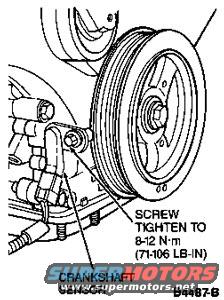

This document is a service illustration showing the location and mounting of the crankshaft position sensor on an engine, viewed from the front of the engine near the crankshaft pulley/damper. The line drawing depicts the crankshaft pulley with its drive belt grooves, and a callout arrow identifies the crankshaft sensor mounted low on the front of the engine adjacent to the pulley. A second callout points to the sensor mounting screw and specifies its torque: tighten to 8-12 N·m (71-106 lb-in). The figure reference number B4487-B appears in the lower right corner, consistent with Ford service manual artwork. A reader can learn where the crankshaft position sensor is physically located (behind/beside the crankshaft pulley at the lower front of the engine) and the correct fastener torque specification for reinstalling the sensor retaining screw. No year, model, or engine applicability is stated on the illustration itself; it was uploaded to a 1992 Ford Crown Victoria gallery, and nothing in the drawing contradicts that attribution.
