Leaf Spring Suspension Diagram - How the Axle Moves (Hanger & Shackle Geometry)

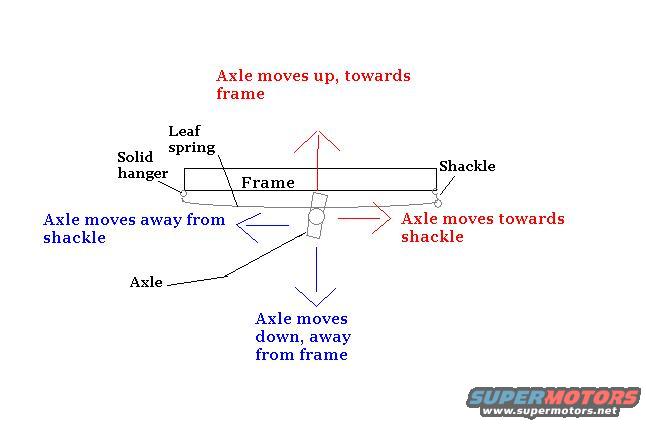

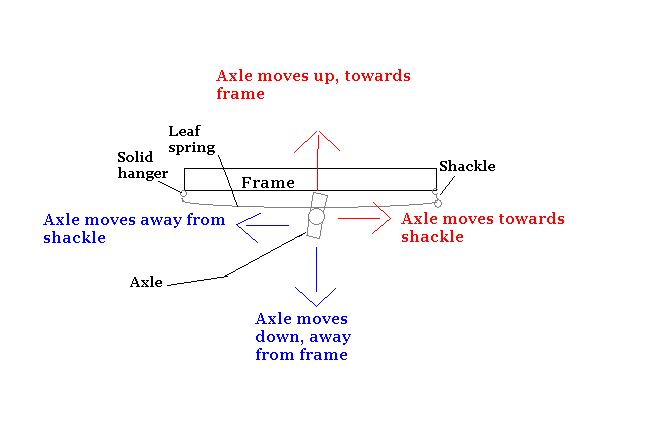

This is a hand-drawn schematic illustrating how a solid axle on a leaf-spring suspension moves relative to the vehicle frame. The diagram shows a horizontal box labeled "Frame" with a leaf spring mounted beneath it. The leaf spring attaches to a "Solid hanger" at the front (left) end and a "Shackle" at the rear (right) end. The axle is shown mounted to the middle of the leaf spring. Four directional arrows explain the axle's paths of movement: an upward red arrow labeled "Axle moves up, towards frame," a downward blue arrow labeled "Axle moves down, away from frame," a red arrow pointing toward the shackle end labeled "Axle moves towards shackle," and a blue arrow pointing toward the fixed hanger labeled "Axle moves away from shackle." The color coding pairs the movements: as the axle compresses upward toward the frame (red), it also shifts fore/aft toward the shackle; as it droops down away from the frame (blue), it moves away from the shackle. A reader learns the basic geometry of leaf-spring suspension travel — that vertical axle movement is accompanied by horizontal movement accommodated by the swinging shackle, while the solid hanger remains a fixed pivot point.
