What vehicle does this exterior moulding diagram cover?

It is labeled '1967 FAIRLANE - BODY TYPE 66A - SIDE' in the Ford Car Parts Exterior Moulding Illustration Section B, and the illustration shows a Ranchero-style body with 'Ranchero' script.

What clip is used at positions B, G, J, and L on the side mouldings?

Screw/nut 353911-S (MM-191-E), paired with retainers C50Z-6229120-A (B), C5AZ6340248-A (G), C70Z-6629120-A (J), and C70Z-6229092-A (L).

What do the asterisks next to some part numbers mean?

The footnote states '* REFER TO GROUP IN CHASSIS SECTION' — asterisked items (e.g., C5TZ-16B840-A at positions M and P) are listed in the chassis section.

What part number is the fastener at position K?

Position K says 'USE 376378-S (UU-97)' with retainer C70Z-6229144-A.

When was this parts illustration page published?

Home/ Registry/ Ford/ Ranchero/ 1966-1971/ “Sunshine”/ Photo supermotors.net/registry/media/527082

1967 Ford Fairlane/Ranchero Body Side Moulding Clips - Exterior Trim Diagram

1967 Fairlane exterior moulding parts illustration with clips and fasteners and part numbers

‹ ›

Ford exterior moulding illustration for a 1967 Fairlane showing clips, retainers and fasteners with their part numbers.

AI caption June 2007 · Photo 125 of 142

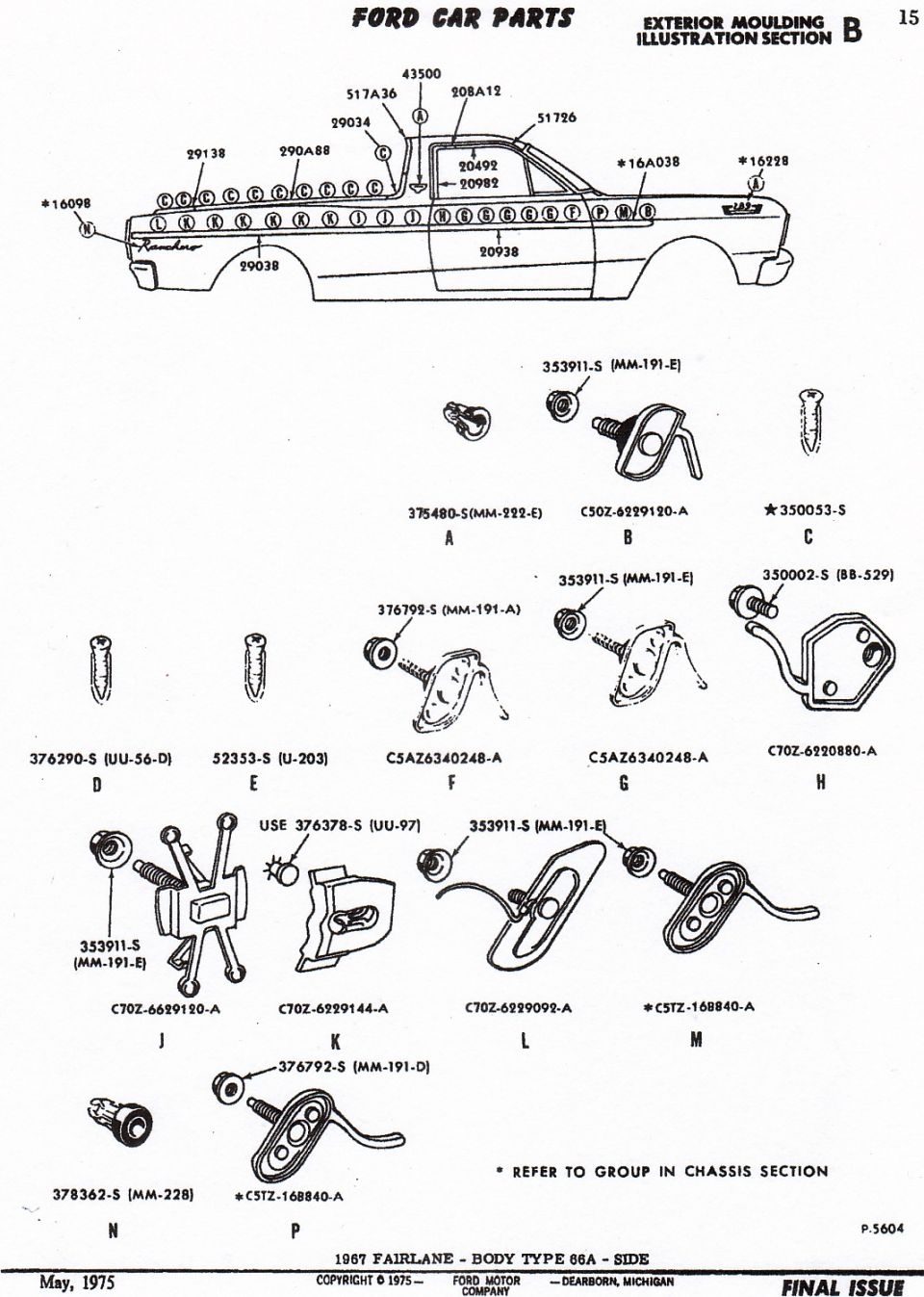

This is page 15 of the Ford Car Parts Exterior Moulding Illustration Section B, dated May 1975 (Final Issue, copyright Ford Motor Company, Dearborn, Michigan). It covers the 1967 Fairlane, Body Type 66A (side), illustrated as a Ranchero-style body with 'Ranchero' script and a 289 emblem. The upper portion shows a side-view exploded diagram of the vehicle with base part numbers for exterior side mouldings and trim (e.g., 43500, 517A36, 208A12, 29034, 51726, 29138, 290A88, 20492, 20982, 16A038, 16228, 16098, 29038, 20938). Circled letters (A through P) along the mouldings identify fastener/clip locations. The lower portion is a lettered legend illustrating each clip, nut, screw, and retainer with its service part number, such as 375480-S (MM-222-E), 353911-S (MM-191-E), C50Z-6229120-A, 350053-S, 376290-S (UU-56-D), 52353-S (U-203), 376792-S, C5AZ6340248-A, 350002-S (BB-529), C70Z-6220880-A, C70Z-6629120-A, C70Z-6229144-A, C70Z-6229092-A, C5TZ-16B840-A, and 378362-S (MM-228). Items marked with an asterisk refer the reader to the chassis section group. This page lets a restorer identify the correct body-side moulding clips and hardware for a 1967 Fairlane/Ranchero 66A body.
