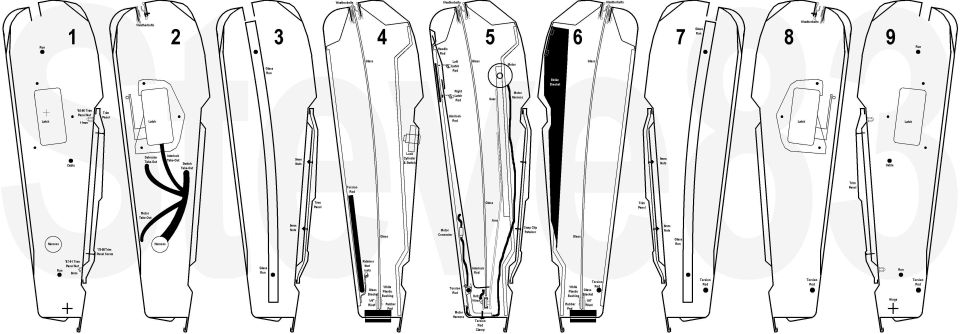

tgsections.jpg '83-96 Bronco Tailgate in cross-sectional views

'78-82 is only different in the latches & interlock switch takeout, which comes off the motor harness near the center mechanism.  For latch details, see this:

[url=http://www.supermotors.net/vehicles/registry/media/669370][img]http://www.supermotors.net/getfile/669370/thumbnail/tglatch78-82.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/160923][img]http://www.supermotors.net/getfile/160923/thumbnail/strikebolt-78bronco.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/737405][img]http://www.supermotors.net/getfile/737405/thumbnail/strikebolt832.jpg[/img][/url]

The wiring harness is slightly different behind the taillight: early trucks have a large 3-blade connector for the window motor, and optionally a 1-blade for the defrost; later trucks' harnesses continue to a 4-pin connector inside the frame rail forward of the bumper.  All with defrost have a ring terminal behind the taillight (G400).
tgsections.jpg | Hits: 8912 | Posted on: 7/29/07 | View original size (644.79 KB)

'83-96 Bronco Tailgate in cross-sectional views

'78-82 is only different in the latches & interlock switch takeout, which comes off the motor harness near the center mechanism. For latch details, see this:

. .

The wiring harness is slightly different behind the taillight: early trucks have a large 3-blade connector for the window motor, and optionally a 1-blade for the defrost; later trucks' harnesses continue to a 4-pin connector inside the frame rail forward of the bumper. All with defrost have a ring terminal behind the taillight (G400).
