Where is the fuel pump relay in the Jeep power distribution center?

The Fuel Pump Relay is in row D, on the right side of the PDC, using pin cavities 6, 8, 5, 2, and 4.

Where is the Automatic Shut Down (ASD) relay located?

The Automatic Shut Down Relay is in row C, on the right side of the power distribution center, using pins 6, 8, 5, 2, and 4.

What amperage is fuse F18 in the power distribution center?

Fuse F18 is a 25A fuse located at cavities 17 and 18 in row A.

Where is the A/C compressor clutch relay?

The A/C Compressor Clutch Relay is in row B on the left side of the PDC, with pin cavities 1, 2, 3, 4, and 5.

What are the M1 and M2 terminals at the bottom of the box?

M1 is the Battery connection and M2 is the Generator connection at the bottom of the power distribution center.

Home/ Registry/ Jeep/ Wrangler/ 1997-2006/ “Heep”/ Photo supermotors.net/registry/media/590607

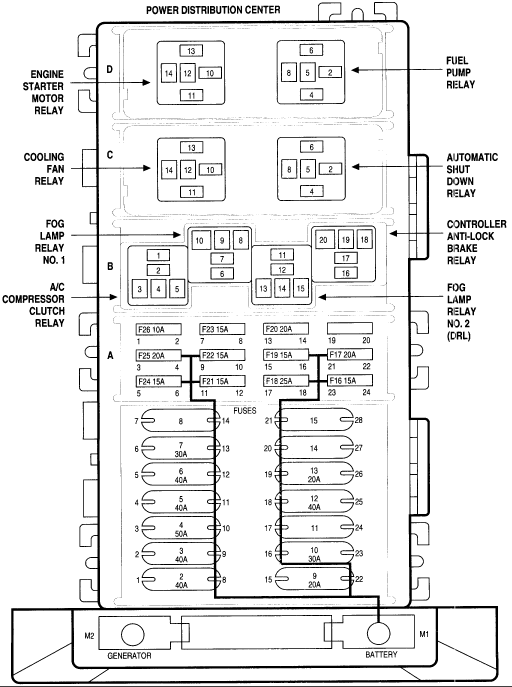

Jeep Power Distribution Center Diagram - PDC Fuse & Relay Layout

Power distribution center diagram showing fuse and relay positions with legend labels

‹ ›

Fuse and relay legend for a power distribution center identifying relays, fuse amperages and circuit names.

AI caption December 2007 · Photo 158 of 394

This document is a labeled layout diagram of a Jeep Power Distribution Center (PDC), the underhood fuse and relay box. The diagram is divided into lettered rows. Row D holds the Engine Starter Motor Relay (pin cavities 13, 14, 12, 10, 11) and the Fuel Pump Relay (pins 6, 8, 5, 2, 4). Row C holds the Cooling Fan Relay and Automatic Shut Down Relay with the same pin patterns. Row B contains the Fog Lamp Relay No. 1, A/C Compressor Clutch Relay, Fog Lamp Relay No. 2 (DRL), and the Controller Anti-Lock Brake Relay, each with numbered pin cavities. Row A shows a bank of cartridge fuses labeled F16 through F26 with amperage ratings ranging from 10A to 25A and their cavity numbers (1–24). Below is a block of larger blade fuses numbered 2 through 15 with ratings including 20A, 30A, 40A, and 50A, each shown with its cavity positions (1–28). At the bottom, main power terminals M2 (Generator) and M1 (Battery) are identified. A reader can use this to locate specific relays and fuses in the PDC and identify fuse amperages by position.
