What amperage is the fuel pump relay fuse?

Fuse 21 is a 15A fuse feeding circuit A61 14DG/BK to the fuel pump relay, fed by A0 6RD.

Which fuse protects the anti-lock brake controller?

Two fuses: Fuse 12 (40A, circuit A10 12RD/DG) and Fuse 13 (20A, circuit A20 14RD/DB), both fed by A0 6RD.

Which fuse positions are unused?

Fuse positions 1, 8, 11, 14, and 15 show no amperage or circuit assignment.

What fuse feeds the blower motor relay and what size is it?

Fuse 6, a 40A fuse, feeds circuit A111 12RD/LG to the blower motor relay, fed by A0 6RD.

What is the fuse for the Automatic Shut Down (ASD) relay output?

Fuse 20 (20A) protects circuit A142 18DG/OR ASD Relay Output, fed by A999 16RD; the ASD relay itself is fed by Fuse 18 (25A, A16 16RD/LG).

Home/ Registry/ Jeep/ Wrangler/ 1997-2006/ “Heep”/ Photo supermotors.net/registry/media/590608

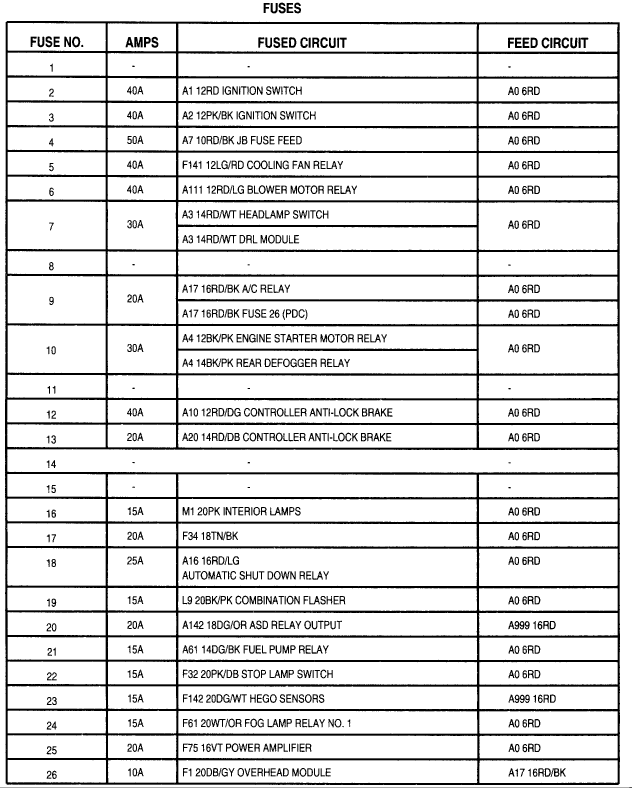

Jeep Wrangler TJ PDC Fuse Chart - Fuse Numbers, Amps & Circuit Wire Codes

Power distribution center fuse chart with fuse numbers, amp ratings, and fused circuits

‹ ›

PDC fuse identification table listing 26 fuse positions with amperage and the circuit each protects, e.g. fuse 4 is a 50A JB fuse feed and fuse 12 is 40A for the anti-lock brake controller.

AI caption December 2007 · Photo 159 of 394

This document is a fuse chart titled "FUSES," presented as a four-column table listing Fuse No., Amps, Fused Circuit, and Feed Circuit for fuse positions 1 through 26 in what appears to be a Power Distribution Center (PDC is referenced in fuse 9). Each populated row gives the fuse amperage, the circuit designation with wire gauge and color code (e.g., A1 12RD Ignition Switch, F141 12LG/RD Cooling Fan Relay, A111 12RD/LG Blower Motor Relay), and the feed circuit (mostly A0 6RD, with A999 16RD for fuses 20 and 23, and A17 16RD/BK for fuse 26). Covered circuits include the ignition switch, JB fuse feed, cooling fan relay, blower motor relay, headlamp switch/DRL module, A/C relay, engine starter motor relay, rear defogger relay, anti-lock brake controllers, interior lamps, automatic shut down relay, combination flasher, ASD relay output, fuel pump relay, stop lamp switch, HEGO sensors, fog lamp relay, power amplifier, and overhead module. Positions 1, 8, 11, 14, and 15 are blank/unused. A reader can identify each fuse's amperage, the circuit it protects, and the associated wiring color codes for diagnostics.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What amperage is the fuel pump relay fuse?: Fuse 21 is a 15A fuse feeding circuit A61 14DG/BK to the fuel pump relay, fed by A0 6RD.
Which fuse protects the anti-lock brake controller?: Two fuses: Fuse 12 (40A, circuit A10 12RD/DG) and Fuse 13 (20A, circuit A20 14RD/DB), both fed by A0 6RD.
Which fuse positions are unused?: Fuse positions 1, 8, 11, 14, and 15 show no amperage or circuit assignment.
What fuse feeds the blower motor relay and what size is it?: Fuse 6, a 40A fuse, feeds circuit A111 12RD/LG to the blower motor relay, fed by A0 6RD.
What is the fuse for the Automatic Shut Down (ASD) relay output?: Fuse 20 (20A) protects circuit A142 18DG/OR ASD Relay Output, fed by A999 16RD; the ASD relay itself is fed by Fuse 18 (25A, A16 16RD/LG).
