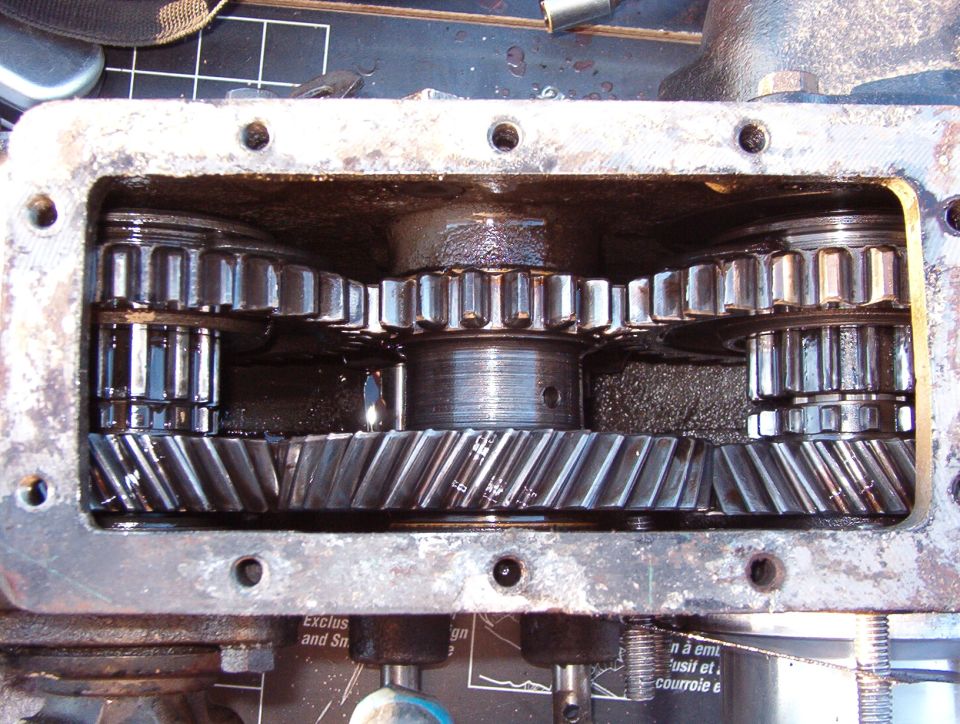

With both output gears slid rearward, the t-case is in 4L. The…

With both output gears slid rearward, the t-case is in 4L. The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.
With both output gears slid rearward, the t-case is in 4L. The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.Original file
With both output gears slid rearward, the t-case is in 4L. The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.

T-Case RebuildView all 22

1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo 1975 Ford Bronco photo Dana Model 20 transfer case exploded parts diagram with labels 1975 Ford Bronco photo 22photos in this albumView all

With both output gears slid rearward, the t-case is in 4L.

The Aluminum sleeve & stub shaft at the lower R are for the Advance Adapters kit for the AOD. Removing that shaft from the t-case allows about a dozen roller bearings to fall loose into & out of the t-case. Finding & re-installing them is a challenge.

Owner caption · Photo 193 of 657

Is this accurate? Sign in to help verify it.
