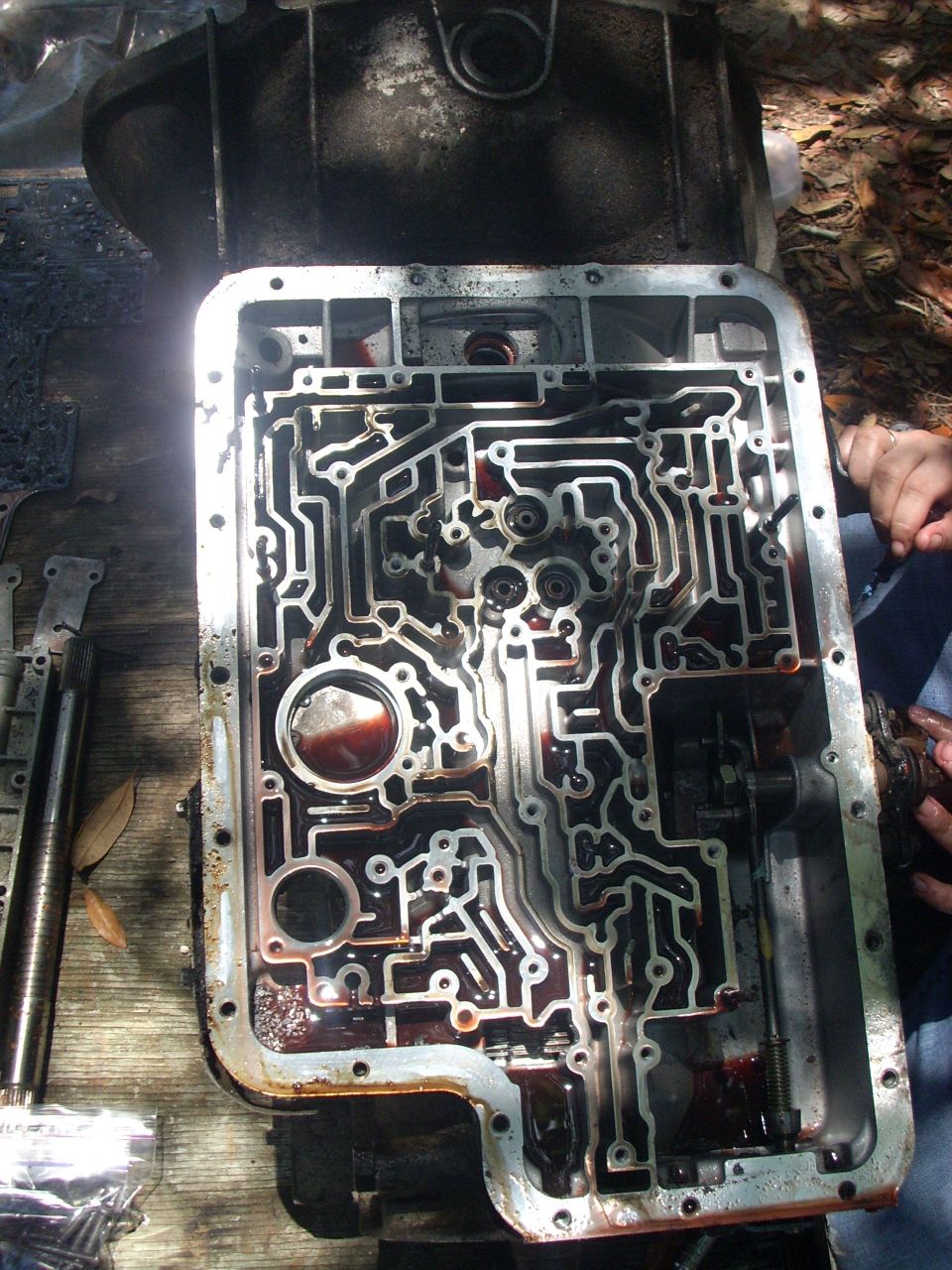

trans11.jpg when the seperator plate is off you will see 8-10 balls, 1 steel ball w/ spring, a couple of filters, the OD servo cover, and 3 bolts holding the center support, i cleaned everything off with brake cleaner then marked each ball/spring/filter with white out.....you could use something else to mark it, then remove em along with the 3 bolts

DONT remove the servo cover yet, leave it be to hold pressure on the internals to make it easier to work with
trans11.jpg | Hits: 780 | Posted on: 11/21/08 | View original size (1.4 MB)

when the seperator plate is off you will see 8-10 balls, 1 steel ball w/ spring, a couple of filters, the OD servo cover, and 3 bolts holding the center support, i cleaned everything off with brake cleaner then marked each ball/spring/filter with white out.....you could use something else to mark it, then remove em along with the 3 bolts

DONT remove the servo cover yet, leave it be to hold pressure on the internals to make it easier to work with
