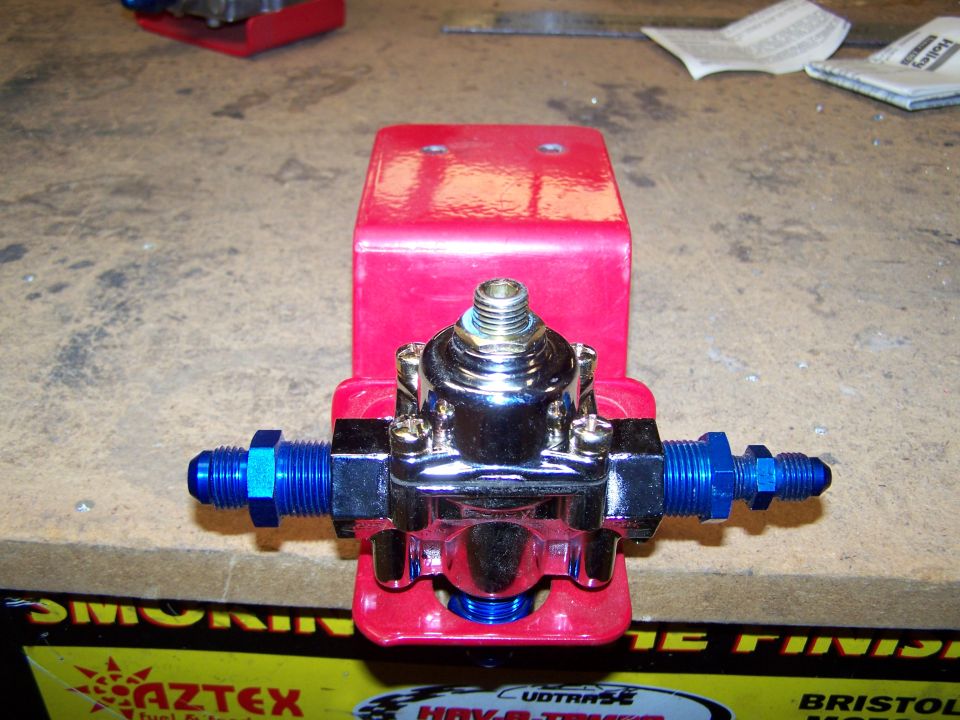

I'm planning on mounting my pump on the crossmember in front of the gas tank. Then my plan is:

hose from tank to "in" on pump

out of pump to "in" on filter, mounted on driver side frame rail

out of filter to "in" on regulator, mounted on bottom of cowl, beside M/C

1 hose out of reg. to carb inlet, which will be at the rear of carb

1 hose,4AN, out of reg. to the gauge, mounted on cowl, in front of driver

Owner caption April 2009 · Photo 1293 of 1632
