tsb951411inoplamps.jpg TSB 94-09-12 Visor Screws

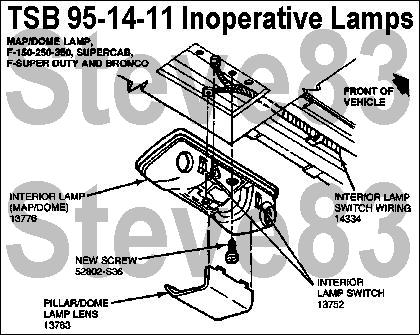

TSB 95-14-11 Dome Lamp Screws
Publication Date: JULY 17, 1995

LIGHT TRUCK:  1994-95 BRONCO, F SUPER DUTY, F-150-350 SERIES

ISSUE: Some customers may have concerns that the following features are inoperative:
* All courtesy lamps
* Map lamps
* Engine compartment lamp
* Glove compartment lamp
* Odometer in the instrument cluster
* Dome lamp
* Power mirrors
* Lighted vanity
* Cargo lamp
* Remote keyless entry

This is due to insufficient clearance between the outer roof panel of the cab and a map/dome lamp mounting screw, causing a short in Circuit 54, which causes Fuse 8 (15 amp) to become inoperative. This fuse protects the wiring for the above vehicle features.

ACTION: Replace existing dome mounting screws with new, shorter screws. Refer to the following procedure for service details.

BACKGROUND
Three (3) screws (52814-S36) are required to mount the map/dome lamp to the inner roof panel of the cab. Two (2) of the three (3) screws are used to complete two (2) electrical circuits, 53 and 54. Circuit 53 is after the lamp switches and is "cold" ("cold" means that 12 volts are not present) and Circuit 54 is before the lamp switches and is "hot" at all times ("hot" means that there are always 12 volts present).

The 52814-S36 screw is approximately 25.4mm (1") long. When there is a sufficient amount of downward force applied to the outer roof panel of the cab, the panel will make contact with the screw that has Circuit 54 (12 volts) on it. For example: When the brushes and dryer pass over the roof of the truck in a car wash or when traveling at highway speeds. As the roof panel contacts the screw, it causes a direct short-to-ground. When this occurs, Fuse 8 will be overloaded (15 amp), open and disable the listed features.

SERVICE PROCEDURE
1. Carefully pry pillar/dome lamp lens from interior lamp body.
2. Remove screws retaining interior lamp (map/dome) to roof trim panel.
3. Install new screws (52802-S36, 19mm).
NOTE:  ANOTHER OPTION WOULD BE TO REMOVE OLD SCREWS AND CUT/GRIND APPROXIMATELY 6.35mm (1/4") OFF THE END AND REINSTALL.
4. Reinstall pillar/dome lamp lens.

PART NUMBER  PART NAME
52802-S36B  Screw (19mm)

OTHER APPLICABLE ARTICLES:
95-2-11

WARRANTY STATUS:
Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION  DESCRIPTION  TIME
951411A  Replace Dome Lamp Mounting Screws  0.3 Hr.

For other TSBs, check [url=http://www.revbase.com/BBBMotor/]here[/url].

See also:
[url=https://www.supermotors.net/registry/media/1168564][img]https://www.supermotors.net/getfile/1168564/thumbnail/dometerms.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/76023][img]http://www.supermotors.net/getfile/76023/thumbnail/cluster-front.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/646262][img]http://www.supermotors.net/getfile/646262/thumbnail/tsb950521-hegofusee.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/892593][img]http://www.supermotors.net/getfile/892593/thumbnail/bpillarpadding.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/832986][img]http://www.supermotors.net/getfile/832986/thumbnail/bulbsfuseswire.jpg[/img][/url]
---------------------------------------------------------------------------
TSB 94-09-12 Visor Screws

Publication Date: MAY 4, 1994

LIGHT TRUCK:  1994 BRONCO, F-150, F-250, F-350

ISSUE: The Instrument Panel Electrical PSOM (Programmable Speedometer/Odometer Module) may be inoperative or not function properly and the #8 fuse may be blown. In addition, if the vehicle is equipped with an E4OD transmission, it may exhibit a harsh shift. These conditions may be caused by trim screws installed through the 17K745 visor wire between the left hand "A" pillar and the left hand visor bullet connector.

ACTION: Tape the damaged or exposed wire conductor and add scrolling to protect the wiring from trim screw shorts. Refer to the following service procedures for service details.

SERVICE PROCEDURE
1. Remove the garnish moulding. Refer to the 1994 Econoline, F-150-350, Bronco F-Super Duty Service Manual, Page 01-05A-5, for the removal procedure.
a. Inspect the wiring condition against the trim screws.
b.Check screws for burn marks.
2. If burn mark is found, use electrical tape to protect exposed/damaged wire. Add 1/4" (6.35 mm) scrolling to maximize protection.
3. Replace #8 fuse.
4. Reset the PSOM to see if it is functioning properly. Refer to the 1994 Econoline, F-150-350, Bronco F-Super Duty Service Manual, Page 13-01A-8, for the reset procedure.
5. Reinstall trim. Refer to the 1994 Econoline, F-150-350, Bronco F-Super Duty Service Manual, Page 01-05A-5, for the installation procedure.
6. Recheck fuse #8 and PSOM final verification.

PART NUMBER  PART NAME
D4FZ-14A099-B  1/4" Scrolling (25 Ft. Roll) ([url=https://www.amazon.com/dp/B00KW9PQTE]100 Ft. Roll[/url])
D6AZ-19627-A  [url=https://www.amazon.com/dp/B06Y5GY83W]Electrical Tape[/url]
D9ZZ-14526-D  Fuse

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of The Bumper To Bumper Warranty Coverage

OPERATION  DESCRIPTION  TIME
940912A  Check And Repair Wiring  0.6 Hr.
