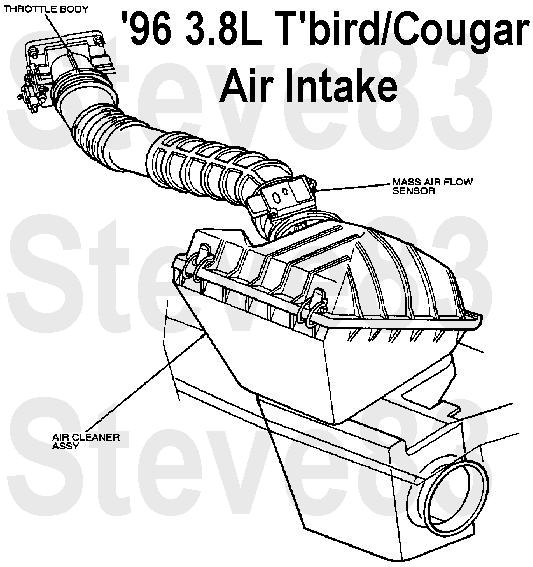

Line diagram of 96 3.8L Thunderbird Cougar air intake assembly

I removed the MAF and found some JY elbows to make the turns into the CV throttle body. The lower box was also deleted (actually, I never knew about it) and I cut a new hole on the L side (R in the diagam). The box bolts flat to the front of the driver's wheelwell, sealing the original hole in the bottom that goes to the resonator box shown (which I didn't use).

Owner caption August 2010 · Photo 401 of 657
