What vehicle does this exterior moulding diagram cover?

The page is labeled '1971 TORINO - BODY TYPE 66C - SIDE' and shows the Ranchero script emblem, from the Ford Car Parts Exterior Moulding Illustration Section B.

What is the part number for the KV side moulding clip?

Callout KV uses clip C8LY-6520818-A with screw 379560-S (UU-89-CA).

Which fastener attaches at callout BY?

Callout BY uses screw 381671-S (UU-89-C).

What do the asterisked part numbers mean?

A footnote states '*REFER TO GROUP IN CHASSIS SECTION' for asterisked items such as *45271-S, *16098, *16038, and *16003.

What part number is shown for the Ranchero script emblem?

The Ranchero script is callout CB, basic number 16098, attached with clip 375890-S (MM222-A); the round emblem next to it is 517A56.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/841596

1971 Ford Torino/Ranchero Body 66C Side Moulding Diagram & Clip Part Numbers

Ford Ranchero exterior moulding exploded parts illustration with clips and fasteners

‹ ›

Ford car parts exterior moulding illustration showing Ranchero trim, clips and fasteners with part numbers.

AI caption December 2010 · Photo 646 of 708

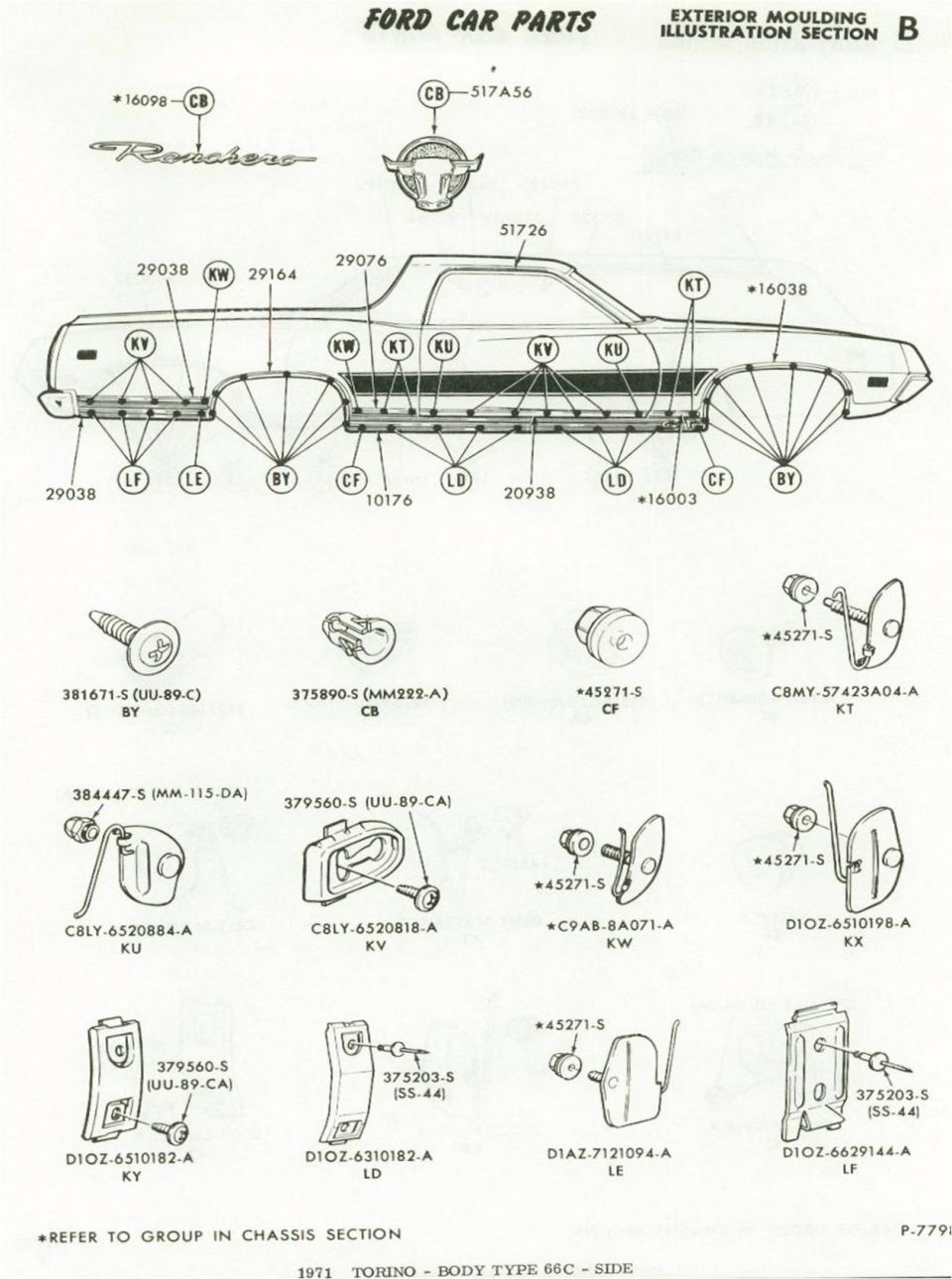

This is a page from a Ford Car Parts exterior moulding illustration section (Section B, page P-7798) covering the side mouldings of the 1971 Torino, Body Type 66C (the Ranchero pickup body style). A side-view exploded illustration identifies exterior side trim and moulding part groups (16098 Ranchero script, 517A56 emblem, 51726, 29076, 29038, 29164, 16038, 10176, 20938, 16003) and uses two-letter callout codes (BY, CB, CF, KT, KU, KV, KW, KX, KY, LD, LE, LF) to locate attaching clips and fasteners along the body. Below the illustration, each callout code is illustrated with its clip or screw and its Ford service part number, e.g. 381671-S (UU-89-C) for BY, 375890-S (MM222-A) for CB, 45271-S for CF, C8MY-57423A04-A for KT, C8LY-6520884-A for KU, C8LY-6520818-A for KV, C9AB-8A071-A for KW, D1OZ-6510198-A for KX, D1OZ-6510182-A for KY, D1OZ-6310182-A for LD, D1AZ-7121094-A for LE, and D1OZ-6629144-A for LF. Asterisked items refer to the chassis section. Restorers can use this page to identify correct side moulding clips and hardware for a 1971 Torino/Ranchero.
