What is the spark plug and gap for the MGB 18V 581Y/582Y/583Y engines?

Champion N9Y plugs gapped .024 to .026 in. (.625 to .66 mm.).

What is the ignition timing for these MGB 18V engines?

Static timing is 10° B.T.D.C. for both H.C. and L.C.; stroboscopic timing is 13° B.T.D.C. at 600 r.p.m. for both.

What are the valve rocker clearances?

Set cold: .015 in. (.38 mm.); set hot: .013 in. (.33 mm.).

What distributor and points gap are specified?

Lucas 25D4 distributor with a contact breaker gap of .014 to .016 in. (.35 to .40 mm.), anti-clockwise rotor rotation, and a dwell angle of 60°±3°.

What carburetter needle and jet does this engine use?

S.U. HIF4 carburetters with a .090 in. (2.2 mm.) jet, AAU needle, and red piston spring.

Home/ Registry/ MG/ B/ “Lisa's B”/ Photo supermotors.net/registry/media/946792

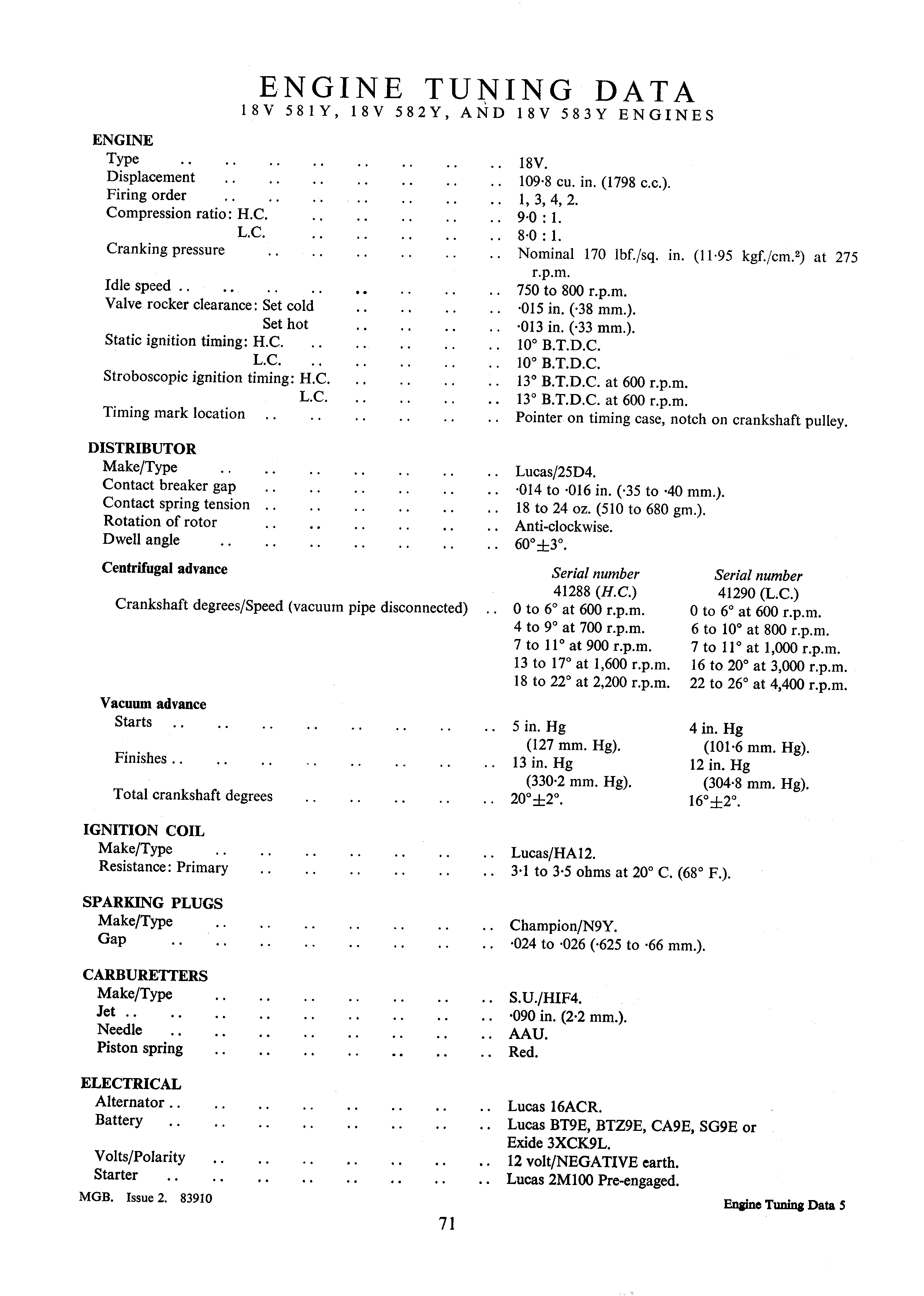

MGB 18V 581Y/582Y/583Y Engine Tuning Data - Timing, Plugs, Carb Specs

MGB 18V 581Y/582Y/583Y engine tuning data: timing, dwell, plug gap, carburetter specs, page 71

‹ ›

MGB Engine Tuning Data for 18V 581Y/582Y/583Y engines listing compression 9.0:1, idle 750-800 rpm, valve clearance .015 in cold, ignition timing 10 BTDC, Lucas 25D4 distributor and plug gaps.

AI caption September 2012 · Photo 41 of 101

This is page 71 of an MG B workshop manual (marked 'MGB. Issue 2. 83910', 'Engine Tuning Data 5') giving complete engine tuning data for the 18V 581Y, 18V 582Y, and 18V 583Y engines. It lists engine specifications: 1798 c.c. (109.8 cu. in.) displacement, firing order 1-3-4-2, compression ratios of 9.0:1 (H.C.) and 8.0:1 (L.C.), nominal 170 psi cranking pressure, 750–800 rpm idle, valve clearances (.015 in. cold / .013 in. hot), static timing 10° BTDC and stroboscopic timing 13° BTDC at 600 rpm. Distributor data covers the Lucas 25D4: points gap .014–.016 in., anti-clockwise rotor rotation, 60°±3° dwell, plus centrifugal advance curves for serial numbers 41288 (H.C.) and 41290 (L.C.) and vacuum advance start/finish values. Ignition coil is Lucas HA12 (3.1–3.5 ohms primary); spark plugs are Champion N9Y gapped .024–.026 in. Carburetters are S.U. HIF4 with .090 in. jet, AAU needle, and red piston spring. Electrical specs list Lucas 16ACR alternator, Lucas BT9E/BTZ9E/CA9E/SG9E or Exide 3XCK9L batteries, 12-volt negative earth, and Lucas 2M100 pre-engaged starter. Useful for tune-ups, ignition timing, and carburettor setup on these engines.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the spark plug and gap for the MGB 18V 581Y/582Y/583Y engines?: Champion N9Y plugs gapped .024 to .026 in. (.625 to .66 mm.).
What is the ignition timing for these MGB 18V engines?: Static timing is 10° B.T.D.C. for both H.C. and L.C.; stroboscopic timing is 13° B.T.D.C. at 600 r.p.m. for both.
What are the valve rocker clearances?: Set cold: .015 in. (.38 mm.); set hot: .013 in. (.33 mm.).
What distributor and points gap are specified?: Lucas 25D4 distributor with a contact breaker gap of .014 to .016 in. (.35 to .40 mm.), anti-clockwise rotor rotation, and a dwell angle of 60°±3°.
What carburetter needle and jet does this engine use?: S.U. HIF4 carburetters with a .090 in. (2.2 mm.) jet, AAU needle, and red piston spring.
