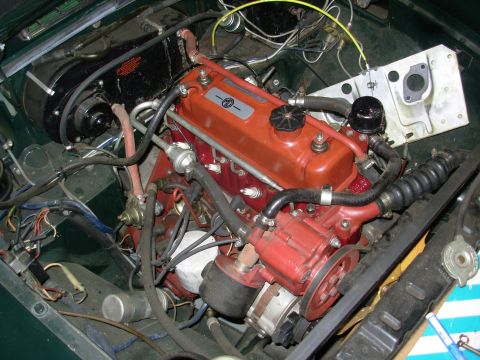

MGB wiring diagram 11 with numbered components and color-coded w…

MGB wiring diagram 11 with numbered components and color-coded wire runs
MGB wiring diagram 11 with numbered components and color-coded wire runsOriginal file
MGB wiring diagram 11 with numbered components and color-coded wire runs

Reference · 1962-1974 BAll 6 wiring diagrams

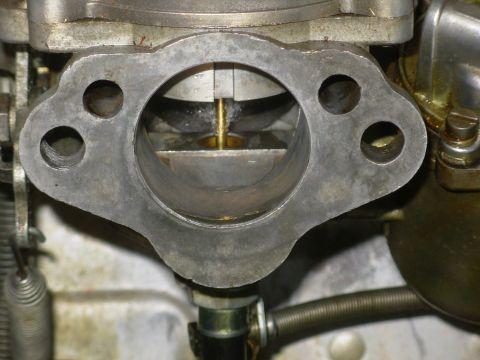

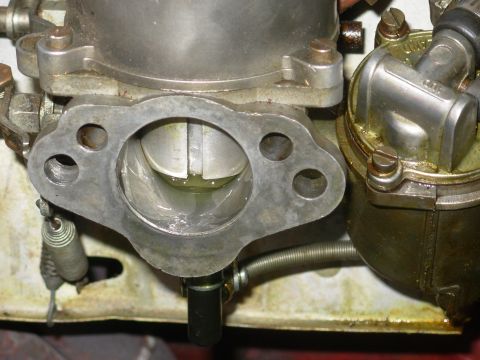

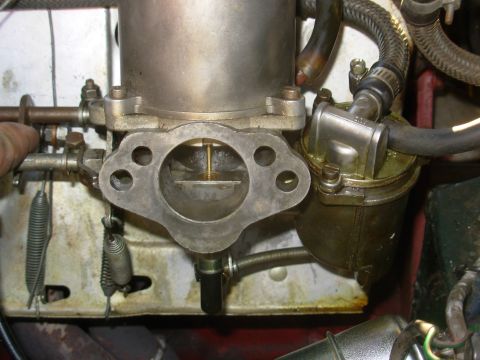

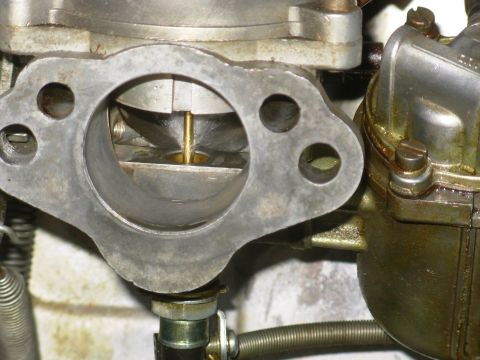

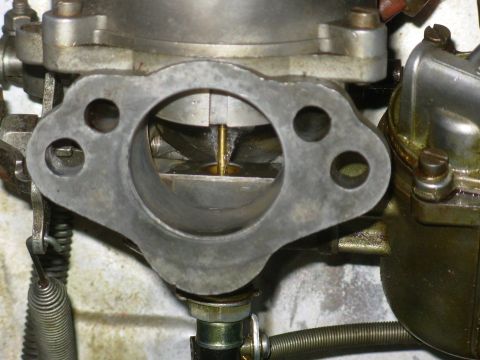

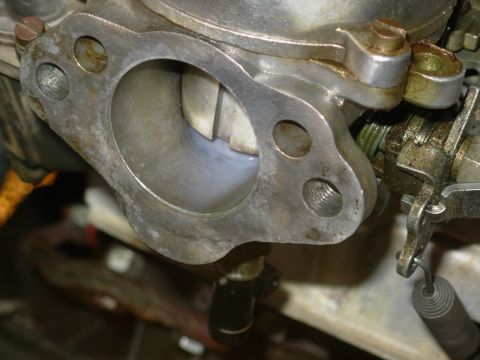

MGB wiring diagram 13 with numbered components and color-coded wire runs MGB wiring diagram 12 with numbered components and color-coded wire runs MGB wiring diagram 11 with numbered components and color-coded wire runs MGB wiring diagram 10 with numbered components and color-coded wire runs MGB wiring diagram 6 with numbered components and color-coded wire runs MGB Wiring Diagram with Key & Cable Colour Code - Workshop Manual Page 13 6wiring diagrams1962-1974 MG B More reference MGB Tourer & GT 1962-1972 Workshop Manual Table of Contents - Wiring & TuningManual page MGB twin carburetter linkage setup page with throttle and jet interconnection levers and fast-idle screwsService procedure MGB Tuning Data to 1971 & 1971 - Ignition Timing, Distributor, SU Carb SpecsSpec plate MGB 18V Engine Tuning Data (ECE 15 European Spec) - Timing, Plugs, SU HIF4Torque spec MGB SU Carburetter Components Exploded Parts Diagram - Workshop Manual p132Exploded parts MGB 18GB Engine Oil Pump Cover & Oil Filter Head Machining Diagrams (Figs 7-8)Blueprint MGB Engine Lubrication System Diagram - Oil Flow, Filter & Rocker Gear DetailSchematic Morris Oxford Traveller brochure cover with a family above the estate car and "That's our Traveller!" scriptBrochure

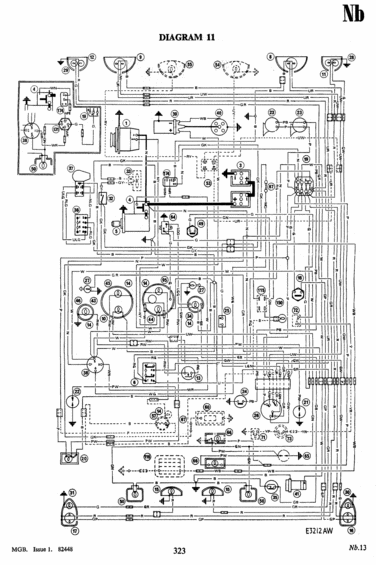

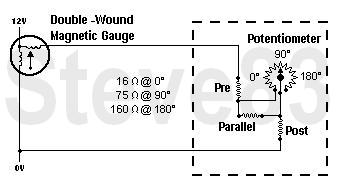

MGB Diagram 11 full-vehicle wiring schematic with numbered components and wire color codes, page 323, Nb.13.

Part of 1962-1974 MG B Wiring Diagrams

AI caption · Photo 57 of 101

DIAGRAM ll Nb.13 323 MGB. Issue 1. 82448
