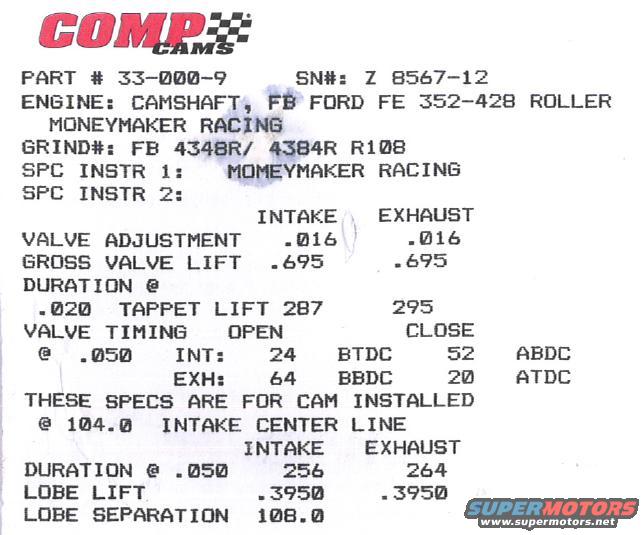

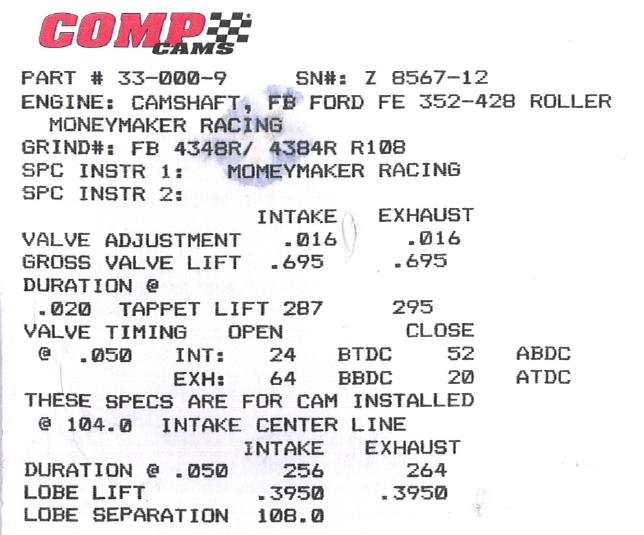

Comp Cams spec card for the FB Ford FE 352-428 roller cam: .695 gross lift, 256/264 duration @ .050, .3950 lobe lift and 108.0 lobe separation.

Part of 1966-1967 Ford Fairlane Brochures & Literature

AI caption December 2012 · Photo 119 of 121

0051353 PART # 33003919 5N5}: Z 856712 ENGINE: CAMSHAFT, F3 FORD FE 352429 ROLLER MONEYMAKER RACING GRIND: FB 4348R/ 54R RIDE SPC INSTR I- MOHEVIIAKER RACING SPC INSTR 2: INTAKE EXHAUST VALVE ADJUSTMENT .O16 .O16 GROSS VALVE LIFT .695 .695 DURATION E .IZO TAPPET LIFT 287 295 VALVE TIMING OPEN CLOSE @ .OSB INT: 24 BTDC 52 ABDC EXH: 54 BBDC 2O ATDC THESE SPECS ARE FOR CAM INSTALLED @ 104.D INTAKE CENTER LINE INTAKE EXHAUST DURATION E .BSB 256 264 LOBE LIFT .395B .395O LOBE SEPARATION IDS.
