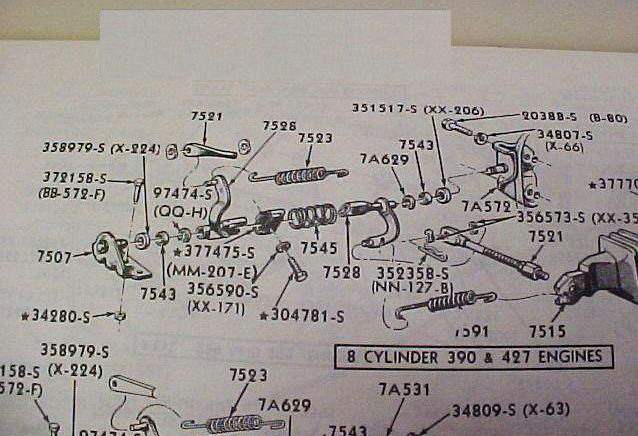

Ford 390 & 427 Clutch Z-Bar Linkage Exploded Parts Diagram with Part Numbers

This document is a scanned exploded parts diagram from a Ford parts catalog illustrating the clutch release equalizer bar (Z-bar) linkage assembly for 8-cylinder 390 and 427 cubic-inch engines, as stated in the caption box '8 CYLINDER 390 & 427 ENGINES.' The illustration shows the equalizer bar (7521), release rod components (7528, 7523), springs (7A629), bushings and washers (7543, 7545), pivot brackets (7507, 7A572, 7A531, 7591, 7515), and associated hardware. Numerous standard-hardware part numbers with suffix codes are called out, including 358979-S (X-224), 372158-S (BB-572-F), 97474-S (QQ-H), 351517-S (XX-206), 2038B-S (B-80), 34807-S (X-66), 377475-S (MM-207-E), 356590-S (XX-171), 304781-S, 352358-S (NN-127-B), 34280-S, 356573-S (XX-35...), and 34809-S (X-63). A reader can use this diagram to identify the individual parts, fasteners, springs, and bushings needed to rebuild or reassemble the clutch linkage on FE-series 390/427 engine applications. A second, partially visible diagram (presumably for a different engine application) begins at the bottom of the scan. No year, model name, or page title is visible in the cropped image.
