3. When the pawl and sector gear are fully engaged, depress the parking brake pedal until a full travel position is achieved. This will allow more working room and make the installation of the wedge easier.

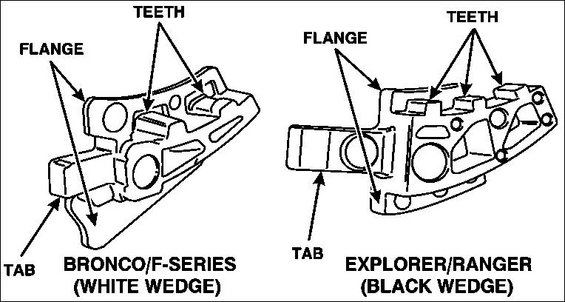

NOTE: The Bronco/F-Series uses a white wedge and the Explorer/Ranger uses a black wedge. They are not interchangeable.

4. Obtain the proper lock-in wedge for the vehicle.

5. Grab the tab of the lock-in wedge with a pair of needle nose pliers and position the wedge so the teeth of the wedge are pointing up.
