What is the pinout of the 7-pin trailer connector (C417M) on a 1996 Ford Bronco/F-Series?

Pin 1: 963 (BK/LG) Trailer Backup Lamps; Pin 2: 49 (O) Trailer Battery Charge; Pin 3: 64 (DG) Trailer RH Turn Signal; Pin 4: 43 (DB) Trailer Brakes; Pin 5: 206 (W) Trailer Ground; Pin 6: 52 (Y) Trailer LH Turn Signal; Pin 7: 962 (BR/W) Trailer Running Lamps.

What is the pinout of the C210M trailer electronic brake control connector?

Pin 1: 43 (DB) Trailer Brakes; Pin 2: 206 (W) Ground; Pin 3: 511 (LG) BOO (brake on/off); Pin 4: 14 (BR) Running Lamps; Pin 5: 50 (R) Battery; Pin 6: unused. The connector part number shown is 14401.

Which fuses power the trailer wiring circuits?

Engine compartment fuse box: fuse 4 (25A) hot at all times feeding wire 14 (Y), fuse 5 (15A) hot in start or run feeding wire 298 (P/O), fuse 18 (30A) hot at all times feeding wire 37 (Y), fuse 21 (30A) hot at all times feeding wire 50 (R), and fuses 7 (10A) and 6 (10A) for the turn/stop circuits. Interior fuse panel: fuse 7 (15A) hot in run and fuse 13 hot at all times (383 BR/W).

What wire color is the trailer brake feed circuit?

Circuit 43, dark blue (DB), runs from the trailer electronic brake control through connectors C210, C205, C424, and C417 to the trailer electric brake feed.

Does this diagram apply to non-factory trailer wiring?

The document warns: 'Be sure that trailer adapter is a FACTORY OPTION unit before using this document.'

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1175011

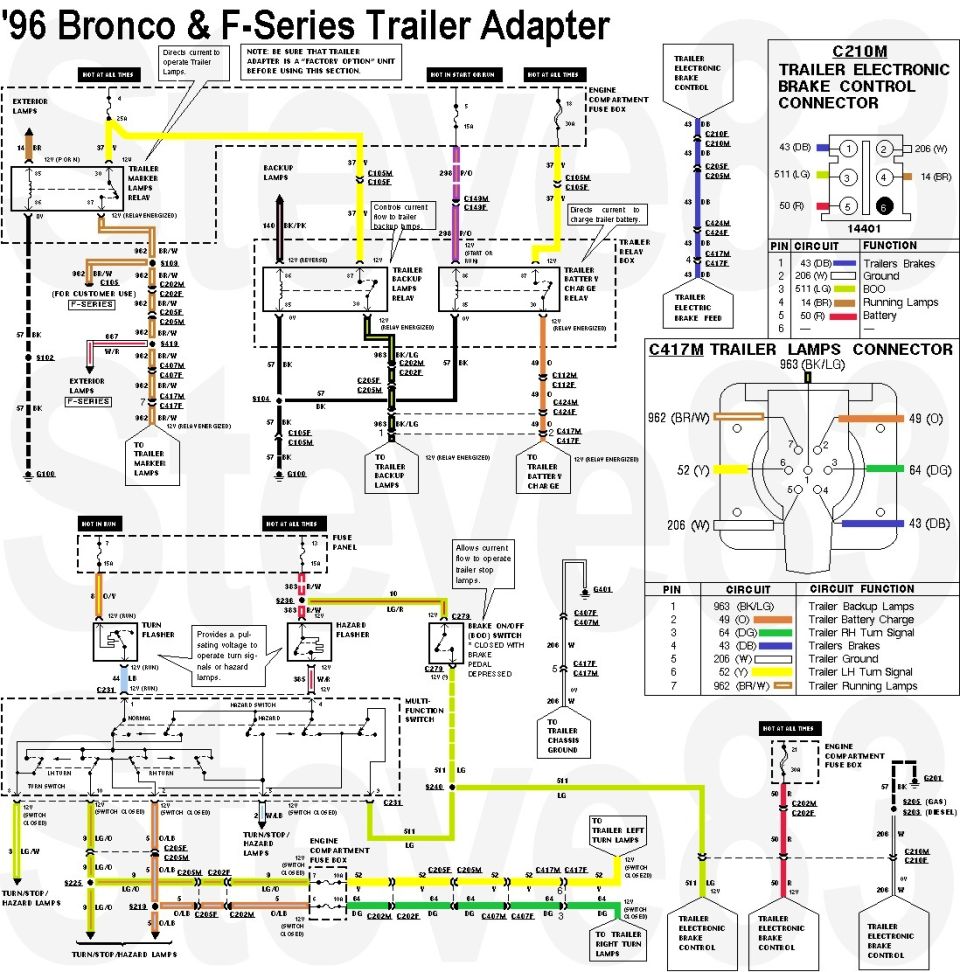

1996 Ford Bronco & F-Series Trailer Wiring Diagram - 7-Pin Connector Pinout

'96 Bronco and F-Series trailer adapter wiring diagram with color-coded wires and connector pinouts

Trailer & Camper Wiring for '94 & '96 trucks
IF THE IMAGE IS TOO SMALL, click it.

BOO (E9LY-13480-A) Motorcraft SW2237

'95 is similar to '96.
See also:
The first 2 pages of this PDF are virtually identical to a Bronco.
. . . . C417 (WPT-421) . .
--------------------------------------------------------------------------------

TSB 89-14-17 Trailer Wiring Colors

Publication Date: JULY 14, 1989

LIGHT TRUCK: 1990 BRONCO, F-150, F-250, F-350

ISSUE: Trailer tow wire harness color codes have been revised to be compatible with SAE color code standards. When hooking up a vehicle to a trailer that has been wired according to the SAE standard, the wire color/circuits will match.

ACTION: Refer to the following Circuit Color Code Chart for the correct color/circuit usage.

CIRCUIT COLOR CODE CHART
CIRCUIT FUNCTION - OLD COLOR* - SAE COLOR*
Trailer LH Turn/Stop - LG/O - Y
Trailer RH Turn/Stop - O/LB - DG
Trailer Brake Lamp From Controller - R/LG - R/LG
Trailer Electric Brakes Solenoid - BL/BR - DB
Trailer Back Up - BK/PK - R/Y
Trailer Ground - W - W
Trailer Running/Tail - W/R - BR/W
Trailer Power (Battery Charge) - Y - O
Trailer Brake Control Feed - R - R

Color Key - Color Abbreviations
BL or BU-Blue
BK-Black
BR-Brown
DB-Dark Blue
DG-Dark Green
LB-Light Blue
LG-Light Green
O-Orange
P-Pink
R-Red
W-White
Y-Yellow

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY

Owner caption March 2026 · Photo 0 of 5000

This document is a factory-style trailer adapter wiring diagram for the 1996 Ford Bronco and F-Series trucks. It maps the complete trailer towing electrical system, including the trailer marker lamps relay, trailer backup lamps relay, trailer battery charge relay (all in the trailer relay box), the turn and hazard flashers, multi-function switch, brake on/off (BOO) switch, and the trailer electronic brake control circuit. Power sources are identified by fuse position and amperage in the engine compartment fuse box (fuses 4/25A, 5/15A, 18/30A, 21/30A, 6/10A, 7/10A) and interior fuse panel (fuse 7/15A, fuse 13). Every wire is labeled with circuit number and color code (e.g., 962 BR/W trailer running lamps, 963 BK/LG backup lamps, 49 O battery charge, 43 DB trailer brakes, 511 LG BOO, 206 W ground). Two pinout tables are provided: the C210M trailer electronic brake control connector (part 14401, 6-pin) and the C417M 7-pin trailer lamps connector, each listing pin numbers, circuit numbers/colors, and functions. A note warns to verify the trailer adapter is a factory-option unit before using the document. Connector, splice, and ground identifiers (C202, C205, C407, C417, S225, G100, G201, G401, etc.) are shown throughout.
