Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1174917

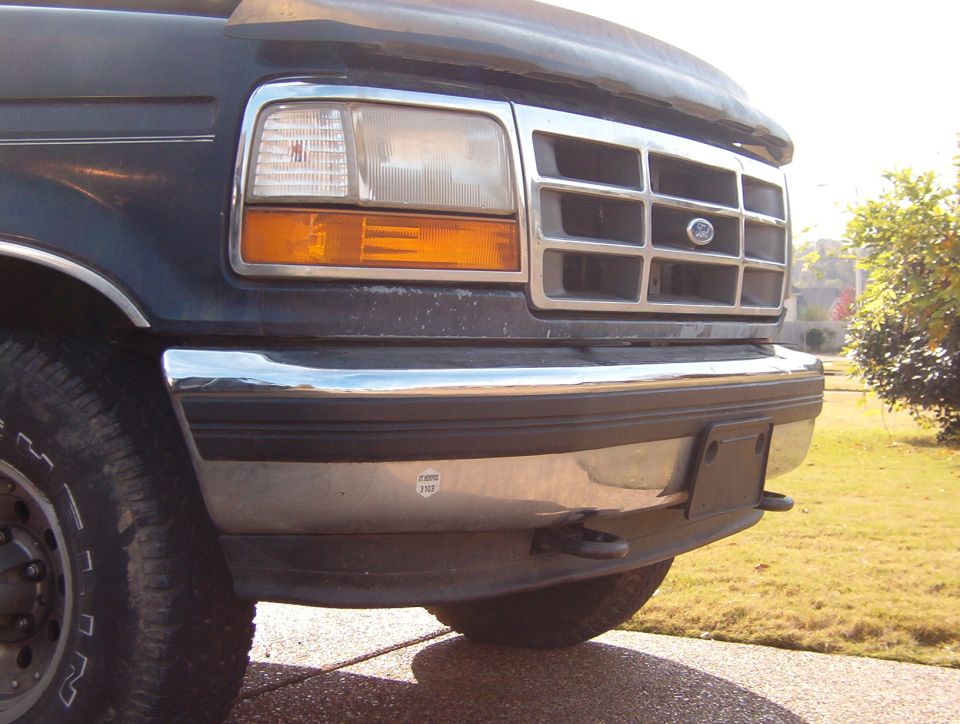

1995 Ford F-150 front grille, headlights, and bumper with a tow…

‹ ›

'92-96 Towing EyesView all 15

Rusty underside view of a truck frame, axle and suspension

Two gloss-black painted aluminum Ford towing eyes hanging on wire

rusted metal bracket with two bolts and a pipe attached, close-up view

Close-up of a black tow hook attached to a chrome bumper and frame, with a tape measure nearby

Four Ford front tow eyes and two 3/4" shackles, one 1" shackle eye hook, and a caliper

Ford F-Series truck front end with black grille and chrome bumper; inset shows tow hook installation

1995 Ford F-350 XLT crew cab pickup truck, two-tone brown paint, chrome trim, side steps

Ford F-Series truck front ends with different bumper materials and tow brackets shown

Collage of vehicle frame components, including condenser, core support, bumper arms, and frame horns, with var

Rusty bumper with air dam being cut, tools shown

rusted bumper and air dam sections with labels 'Bumper', 'Bumper Arm', 'Air Dam', and 'Plate used in Bronco on

Rusty frame tabs, one labeled 'bumper tab' and the other 'frame horn', are shown not aligned. Another view sho

Front end of a white 1990s Ford truck with blue oval grille badge and black headlight trim, collage

15photos in this albumView all

They're very subtle, but very functional; both as front recovery points, and also as steps. Other than folding down 2 flaps of the plastic air dam, the truck is not modified in any way, and no additional fasteners are needed. The only new fasteners are those for the recovery eyes.

F65A17A954BA - Cast Aluminum (6 lbs/pr) '97-99
F85Z17A954CA/F85A17A954CA - Cast steel (13 lbs/pr) '97-04
6L3Z17A954AA - Fabricated steel (12 lbs/pr) '04-14
FL3Z17A954C/7L1Z17A954AA/FL3Z17A954E/FL3Z17N808A - short steel (7.5 lbs/pr) '07-20
FL3Z17A954D - short chromed steel
FL3Z17N808A - short red steel
M-18954-F15B - short blue steel
Imported hooked 3/4" shackle mounts (10 lbs/pr)

Torque eye bolts to 59 lb-ft (78 Nm)
Torque bumper nuts to 44-59 lb-ft (60-80 Nm)
