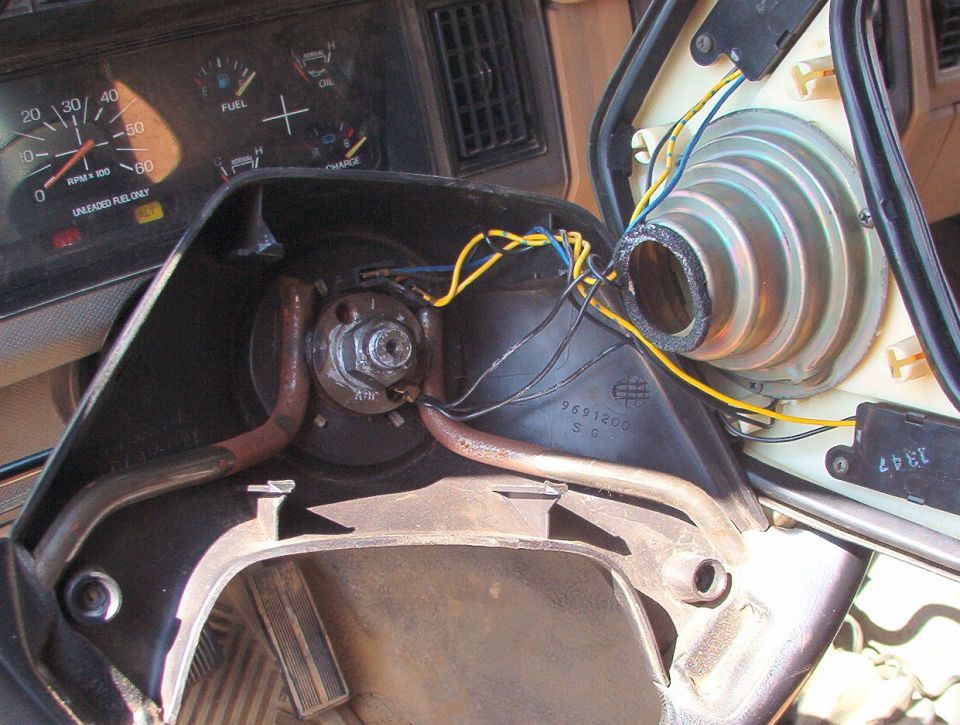

steeringwheel-1.jpg This is how the cruise button wires are connected on all pre-'93 trucks.  The horn pad connector is the same for all '78-91 steering wheels, regardless of shape or cruise control.  Cruise horn pads have the additional black ground wires that clip into a steering wheel hub puller hole.  To pull the steering wheel, see the NEXT few captions...

For more info on pre-'93 cruise, read this caption:
[url=https://www.supermotors.net/registry/media/494370][img]https://www.supermotors.net/getfile/494370/thumbnail/cruisevacuum92circuit.jpg[/img][/url]

For pre-'92 turn/hazard switch replacement, see:
[url=https://www.supermotors.net/registry/3536/76840-4][img]https://www.supermotors.net/getfile/868718/thumbnail/09fordin.jpg[/img][/url]

For '92-97 non-airbag, see:
[url=https://www.supermotors.net/registry/media/901660][img]https://www.supermotors.net/getfile/901660/thumbnail/slidingcontact.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/217654][img]https://www.supermotors.net/getfile/217654/thumbnail/column92.jpg[/img][/url]

See also:
[url=https://www.supermotors.net/vehicles/registry/media/894815][img]https://www.supermotors.net/getfile/894815/thumbnail/columnsexploded.jpg[/img][/url] . [url=https://www.supermotors.net/vehicles/registry/media/72346][img]https://www.supermotors.net/getfile/72346/thumbnail/columntilt-exploded.jpg[/img][/url]
steeringwheel-1.jpg | Hits: 5267 | Posted on: 12/6/04 | View original size (456.7 KB)

This is how the cruise button wires are connected on all pre-'93 trucks. The horn pad connector is the same for all '78-91 steering wheels, regardless of shape or cruise control. Cruise horn pads have the additional black ground wires that clip into a steering wheel hub puller hole. To pull the steering wheel, see the NEXT few captions...

For more info on pre-'93 cruise, read this caption:


For pre-'92 turn/hazard switch replacement, see:


For '92-97 non-airbag, see:
.

See also:
.
