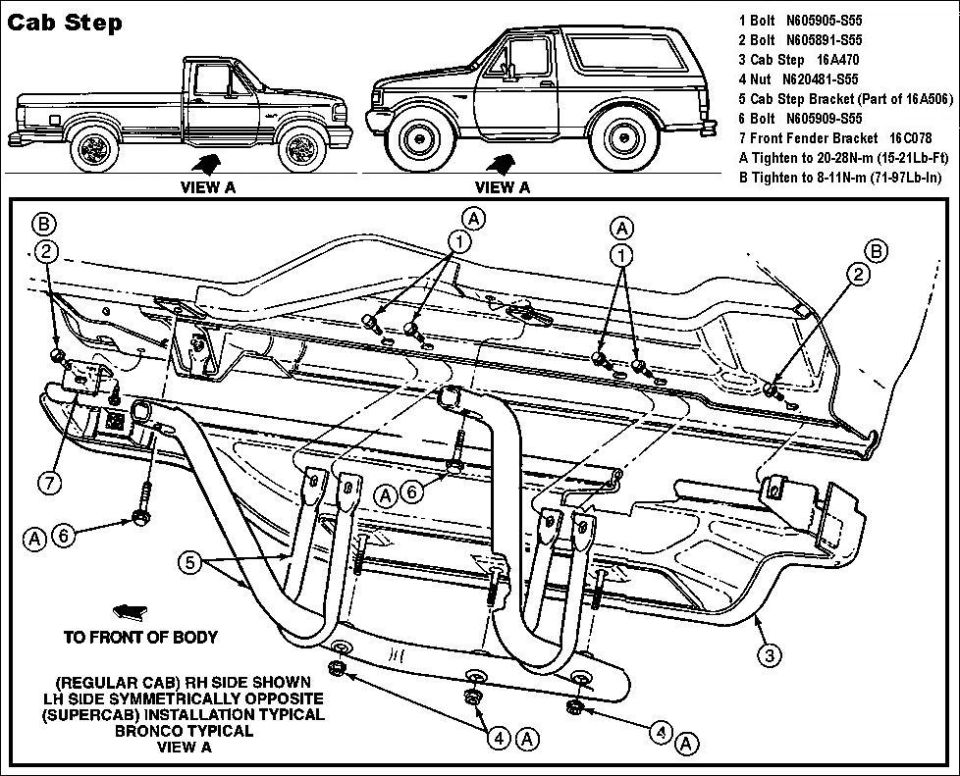

Cab Step
IF THE IMAGE IS TOO SMALL, click it.

Passenger step is 16A740; driver is 16A741

INSTALLATION
1) Install bracket 7 using existing screw (shown but not labelled) through wheel well liner. Install U-nuts (not shown) onto U-tubes of bracket 5, and U-nuts (shown but not labelled) onto underbody lip for bolts 6 (do not install bolts 6 yet).
2) Support step 3 and attach to bracket 7 using bolt 2, aligning to rocker & fender.
3) Install bolt 2 at rear of step 3.
4) Raise bracket 5 onto studs of step 3 and secure with nuts 4.
5) Install bolts 6 and secure.
6) Raise bracket 5 to support step against rocker and secure with bolts 1.

REMOVAL
1) Remove screws 2.
2) Remove bolts 6.
3) Remove bolts 1 and lower step/bracket assembly from rocker.

For replacement brackets (#5), see:
