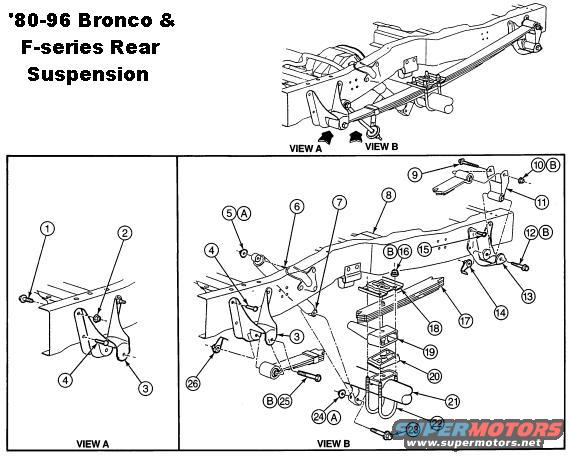

8.8" Suspension

1 Bolt N802114-S2
2 Nut N620483-S56
3 Rear Spring Front Bracket 5785 (see below)
4 Rivet 65092
5 Nut and Washer Assembly N806085-S8
6 Rear Shock Absorber Bracket 18192
7 Shock Absorber 18080
8 Frame 5005
9 Bolt N804028-S2 (M14x2mmx130mm double shoulder, mat'l.cl. 9.8 )
10 Nut N620484-S56
11 Rear Spring Shackle 5776
12 Bolt N804028-S2 (M14x2mmx130mm double shoulder, mat'l.cl. 9.8 )
13 Rear Spring Shackle Bracket 5775 (see below)
14 Nut and Retainer N806368-S56
15 Rivet N647096-S
16 Nut N620484-S56
17 Rear Spring 5560
18 Rear Spring Cap and Plate 5796
19 Spacer, Rear Spring (F-150 4x4 Only) 5729
20 Spacer, Rear Spring (Bronco Only) F3TZ5729A
21 Rear Axle 4001
22 Bolt N800751-S101
23 Bolt N605705-S2
24 Nut and Washer N806496-S100
25 Bolt N804028-S2 (M16x2mmx130mm long shoulder, mat'l.cl. 10.9)
26 Nut and Retainer N806368-S56
A Tighten to 53-73 Nm (39-53 Lb-Ft)
B Tighten to 113-153 Nm (83-113 Lb-Ft)
