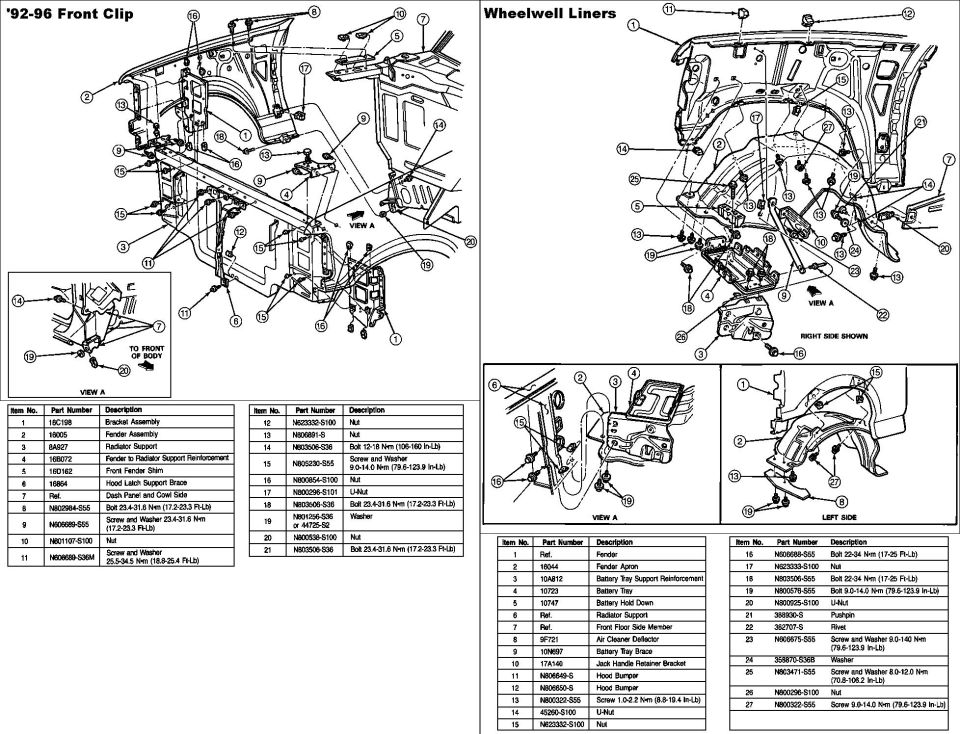

frontclip92.jpg Front Clip '92-96 F-series & Bronco IF THE IMAGE IS TOO SMALL, click it. '94-96 (R134a) Hood Latch Brace #6 has a deeper offset at the bottom & a wider plate at the top than '92-93 (R12); there are also a pair of vertical rubber flaps along the sides of the radiator opening. [url=http://www.supermotors.net/registry/media/978973][img]http://www.supermotors.net/getfile/978973/thumbnail/latchmts.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/988364][img]http://www.supermotors.net/getfile/988364/thumbnail/35intakescreen.jpg[/img][/url] Fender Brackets (#1 behind headlights) Left F4TZ16C199A Right F4TZ16C198A Wheel arch mouldings LHF E7TZ16039A, E7TZ16039B, XC3Z-9829077-PTM, FO1290106 RHF E7TZ16038A, E7TZ16038B, XC3Z-9829076-PTM, FO1291106 LHR E7TZ-9829165-A RHR E7TZ-9829164-A Sound absorbers (not shown, cowl-to-fender) Left F2TZ16B281A Right F2TZ16B280A [url=https://www.supermotors.net/registry/media/959954][img]https://www.supermotors.net/getfile/959954/thumbnail/27xmat.jpg[/img][/url] See also: [url=http://www.supermotors.net/registry/media/859410][img]http://www.supermotors.net/getfile/859410/thumbnail/103rhffenderoff.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/829927][img]http://www.supermotors.net/getfile/829927/thumbnail/enginebay93rhf.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/148977][img]http://www.supermotors.net/getfile/148977/thumbnail/5.8l-right.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/901663][img]http://www.supermotors.net/getfile/901663/thumbnail/connectors93.jpg[/img][/url] . [url=http://www.supermotors.net/registry/21191/71870-4][img]http://www.supermotors.net/getfile/770511/thumbnail/12greaseman.jpg[/img][/url]
frontclip92.jpg | Hits: 13266 | Posted on: 12/31/06 | View original size (600.47 KB)

Front Clip '92-96 F-series & Bronco
IF THE IMAGE IS TOO SMALL, click it.

'94-96 (R134a) Hood Latch Brace #6 has a deeper offset at the bottom & a wider plate at the top than '92-93 (R12); there are also a pair of vertical rubber flaps along the sides of the radiator opening.

.

Fender Brackets (#1 behind headlights)
Left F4TZ16C199A
Right F4TZ16C198A

Wheel arch mouldings
LHF E7TZ16039A, E7TZ16039B, XC3Z-9829077-PTM, FO1290106
RHF E7TZ16038A, E7TZ16038B, XC3Z-9829076-PTM, FO1291106
LHR E7TZ-9829165-A
RHR E7TZ-9829164-A

Sound absorbers (not shown, cowl-to-fender)
Left F2TZ16B281A
Right F2TZ16B280A
