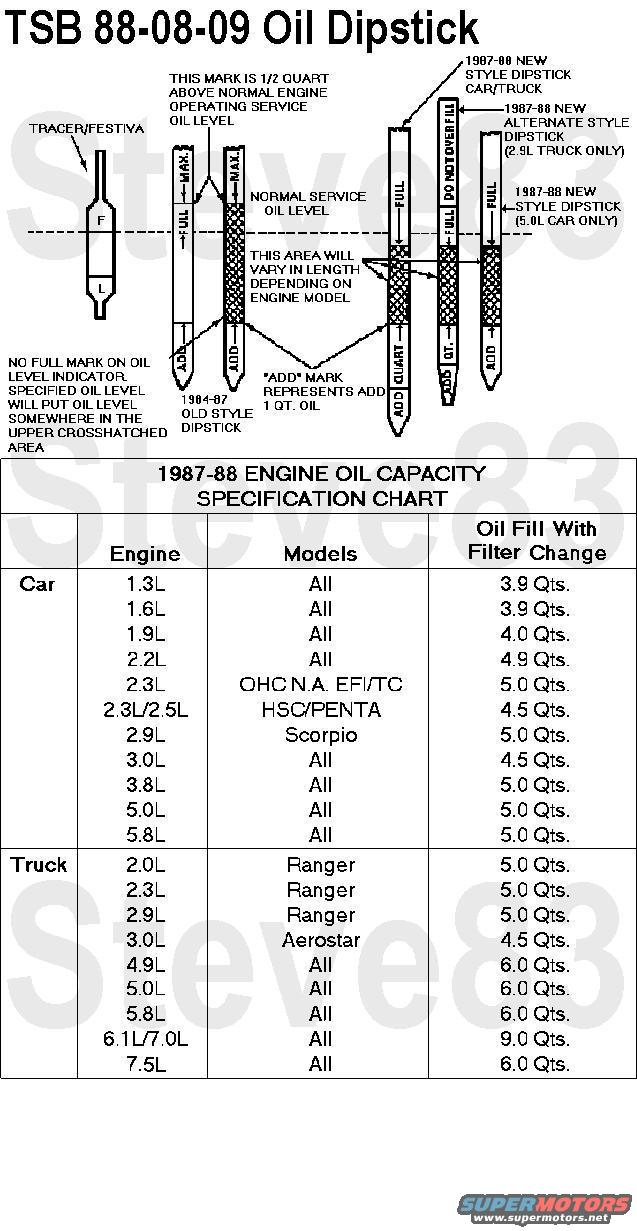

TSB 88-08-09 Oil Dipstick
IF THE IMAGE IS TOO SMALL, click it.
Publication Date: APRIL 15, 1988

FORD: 1984-88 ALL CAR LINES
LINCOLN-MERCURY: 1984-88 ALL CAR LINES
MERKUR: 1985-88 ALL CAR LINES
LIGHT TRUCK: 1984-88 ALL LIGHT TRUCK LINES

ISSUE: The "markings" on the engine oil level dipstick (indicator) may not be read correctly or could possibly be misinterpreted. This can result in overfilling the engine with oil in newly delivered vehicles or thinking that the engine has been overfilled with the specified amount of oil during oil and filter changes.

ACTION: If service is required, use the following guidelines to make sure of correct oil fill.

NOTE: PROPER OIL FILL IS BASED ON A SPECIFIED VOLUME AND IS LISTED IN THE "VEHICLE ENGINE OIL LEVEL CAPACITY SPECIFICATION CHART" AND THE "FLUID REFILL CAPACITIES CHART" OF THE VEHICLE OWNERS GUIDE. USE THESE RECOMMENDED VOLUMES WHENEVER REFILLING THE ENGINE WITH OIL.

Old Style Design Dipstick
On "MAX/ADD" style dipsticks the "MAX" line represents an allowable tolerance limit of approximately 1/2 quart above the specified (normal) engine operating level. The oil level of a properly filled engine should indicate an oil level reading in the upper crosshatched area of the dipstick.

NOTE: DO NOT "TOP OFF" TO THE "MAX" LINE. IF THE OIL LEVEL GOES ABOVE THE "MAX" LINE, A SUFFICIENT AMOUNT OF OIL SHOULD BE REMOVED TO BRING THE OIL LEVEL READING BACK INTO THE CROSSHATCHED AREA OF THE DIPSTICK.

New Style Design Dipstick
On "FULL/ADD", "FULL/ADD 1 QUART" or "F" style dipsticks the oil level of an engine filled with the correct amount of oil, as listed in the "Vehicle Oil Capacity Specification Chart" will normally occur slightly above the "FULL" line. This occurs because the "FULL" mark on the dipstick represents the lowest level of oil that could occur when an engine is filled with the specified volume of oil. This variation in oil level is due to manufacturing tolerances and oil level checking conditions.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY

For other TSBs, check here.
____________________________________________________
1993 5.8L Bronco original dipstick: F2TE-6750-DA
1995 4.9L F150 original dipstick: F1TE-6750-BA
'93-95 Lightning 5.8L original: F2TE-6750-A
'93-95 Lightning 5.8L replacement: F2TZ-6750-A (29-7/8")
'93 7.3L replacement F4TZ-6750-B (possibly 20 1/4")


____________________________________________________
TSB 01-24-6 ENGINE - ENGINE OIL SYSTEM PRIMING PROCEDURES - SERVICE TIPS
12/10/01

FORD:1995-1997 PROBE, THUNDERBIRD
1995-2000 CONTOUR
1995-2002 CROWN VICTORIA, ESCORT, MUSTANG, TAURUS
2000-2002 FOCUS
2002 THUNDERBIRD
1995-1996 BRONCO
1995-1997 AEROSTAR, F-250, F-350
1995-2002 E SERIES, EXPLORER, F-150, RANGER, WINDSTAR
1997-2002 EXPEDITION
1999-2002 SUPER DUTY F SERIES
2000-2002 EXCURSION
2001-2002 ESCAPE, EXPLORER SPORT TRAC, EXPLORER SPORT
LINCOLN:1995-1998 MARK VIII
1995-2002 CONTINENTAL, TOWN CAR
2000-2002 LS
1998-2002 NAVIGATOR
2002 BLACKWOOD
MERCURY:1995-1997 COUGAR
1995-1999 TRACER
1995-2000 MYSTIQUE
1995-2002 GRAND MARQUIS, SABLE
1999-2002 COUGAR1995-2002 VILLAGER
1997-2002 MOUNTAINEER

ISSUE: Reports of premature engine failure suggest some overhauled, new and/or remanufactured engine oil Systems are not correctly primed prior to initial engine start-up, after being installed in the vehicle. This may cause oil starvation during initial engine start-up.ACTIONPrior to starting a new, overhauled or remanufactured engine, the oil pump and oil system should be primed to eliminate the possibility of oil starvation at start-up. Refer to the following Service Information for details.

SERVICE INFORMATION: Regardless of engine design, it is extremely important that the engine oil pump is correctly primed, prior to initial engine start-up.

Overhead Cam Engines (OHC): Overhead cam engines use a G-rotor pump design and is driven by the crankshaft. If the engine is overhauled, the oil pump (prior to assembly) should be fed oil through the oil pick-up passage, prior to installing the pick-up tube and screen assembly. This can usually be accomplished by rotating the oil pump while oil is being fed into the oil pump inlet. Once the oil pump is primed, the oil pump can then be installed onto the engine.Remanufactured engines are usually cold tested before leaving the plant. As a result, the oil pump should not have to be removed from the engine and primed. Overhead cam engines, whether overhauled or remanufactured, prior to starting the engine, ensure the engine crankcase is filled to specification with engine oil. Disable the fuel supply to the fuel injectors (disable inertia fuel shut-off switch) and crank the engine in fifteen (15) second increments, until the oil pump is primed. An oil pressure gauge can be used to assist in determining when oil pressure is obtained. NOTE: ENSURE THE INERTIA FUEL SHUT-OFF SWITCH IS RE-ENABLED PRIOR TO ATTEMPTING TO START ENGINE.

Overhead Valve Engines (OHV): Overhead valve engines (push-rod type) use an oil pump driven by the camshaft via an intermediate shaft connected to the distributor or camshaft synchronizer assembly.Whether the engine is overhauled or remanufactured, the oil pump should be primed prior to starting the engine. If the engine is overhauled, ensure the crankcase is filled to specification with engine oil and using an engine oil pump priming tool kit, (commercially available) rotate oil pump until it is primed. An oil pressure gauge can be used to assist in determining when oil pressure is obtained.If a remanufactured engine is being installed, after the installation has been completed, ensure the crankcase is filled to specification with engine oil. Disable the fuel supply to the fuel injectors (disable inertia fuel shut-off switch) and crank the engine in (15) second increments, until the oil pump is primed. An oil pressure gauge can be used to assist in determining when oil pressure is obtained. NOTE ENSURE THE INERTIA FUEL SHUT-OFF SWITCH IS RE-ENABLED PRIOR TO ATTEMPTING TO START ENGINE.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 401000, 497000, 499000
