psom-f-series.jpg | Hits: 1753 | Posted on: 11/25/03 | View original size (98.25 KB)

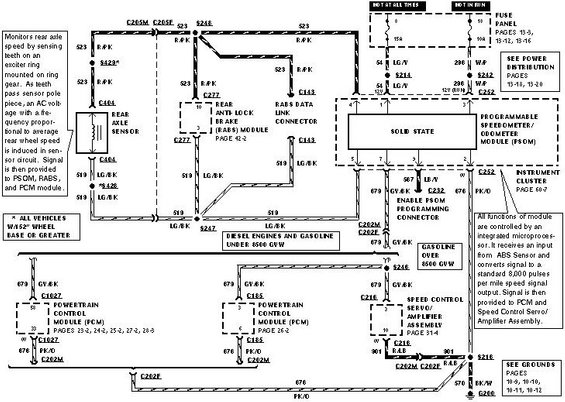

PSOM for '96 pickups. '92-95 similar.

CHECK SPEED INPUT SIGNAL

NOTE: Only wiring harness end of connector is to be probed.
* Connect Rotunda Digital Volt-Ohmmeter 014-00407 or equivalent to Pin 4 (speed in ) and Pin 5 (speed in -).
* Does the voltage increase smoothly and continuously from 0 to approximately 3.5 volts as vehicle speed increases from 0 to 48 km/h (0 to 30 mph)?
OR:
* If available, a frequency counter may be connected to Pin 4 (Speed in ) and Pin 5 (Speed in -).
* Does the displayed frequency of the signal increase smoothly and continuously from 0 to approximately 667 Hz at approximately 48 km/h (30 mph)?
OR:
* If neither a voltmeter nor frequency counter is available, vehicle speed control may be used as a good indicator. If it works normally, then the speedometer module is at least receiving a speed input signal and the wiring and sensor can be assumed to be good.
