1997 service manual

From 1997 Pontiac Grand Prix — documented by jem270.

19 photos
← Back to this vehicle

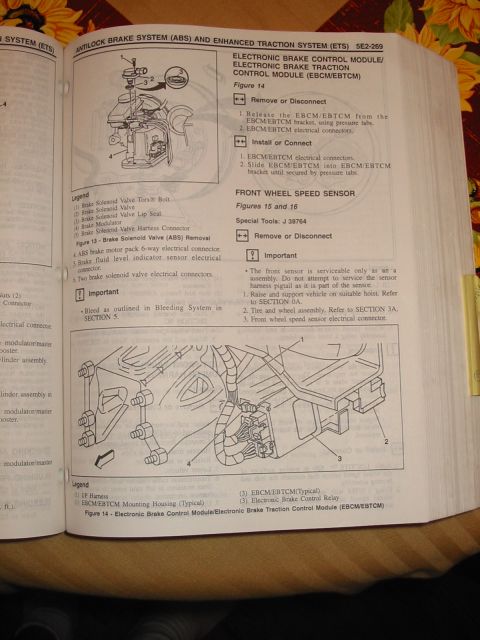

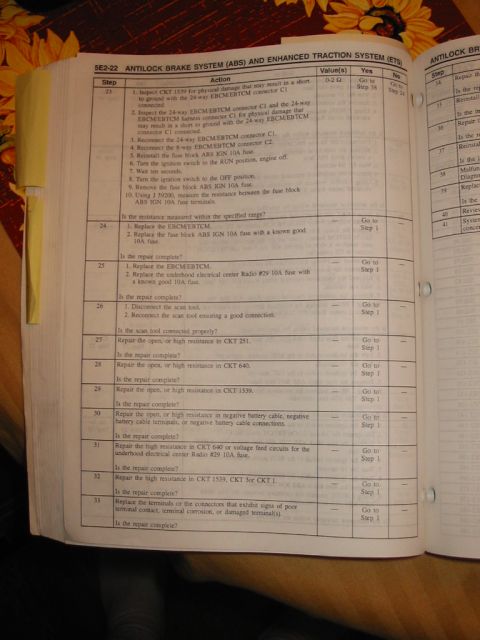

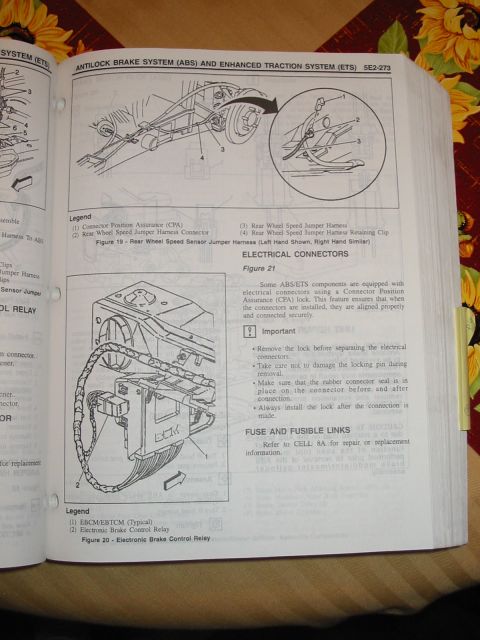

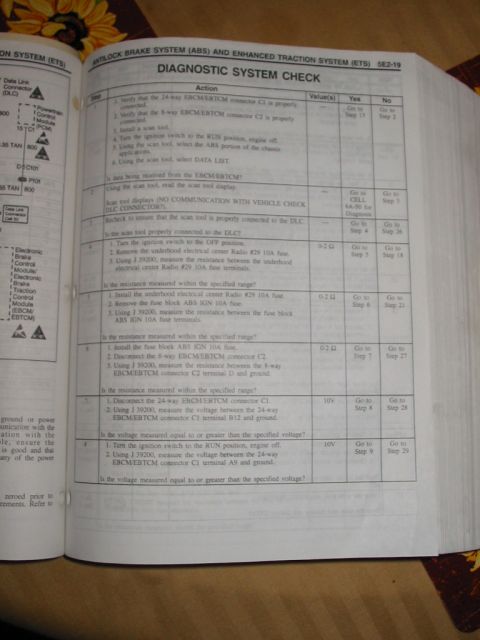

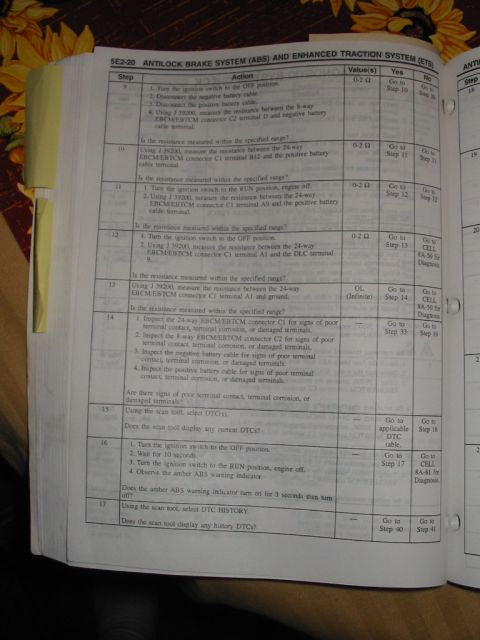

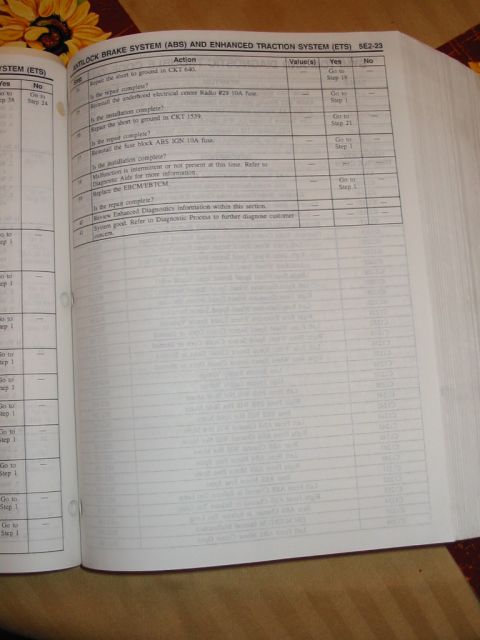

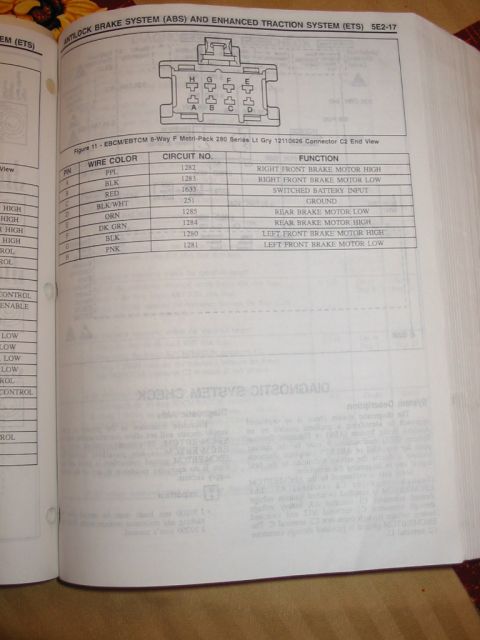

1997 Pontiac Grand Prix - Open factory service manual page 5E2-7 titled "Antilock Brake System (ABS) and Enhanced Traction System (ETS)," covering spare/replacement… 1997 Pontiac Grand Prix - Service manual page for the antilock brake and enhanced traction systems with a component location view and numbered legend. 1997 Pontiac Grand Prix - Ford service-manual page 5E-9 covering ABS/ETS: Electronic Brake Control Module (EBCM/EBTCM, non-serviceable), brake fluid level sensor, wi… 1997 Pontiac Grand Prix - Factory service manual page 5E2-10 for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), with sections on warning indicat… 1997 Pontiac Grand Prix - Open factory service manual page 5E2-11 titled "Antilock Brake System (ABS) and Enhanced Traction System (ETS)," covering self-diagnostics,… 1997 Pontiac Grand Prix - Service manual page 5E2-16 headed "EBCM/EBTCM Connector View," with Figure 10 showing the 24-way F Micro-Pack 100 Series light gray 1211008… 1997 Pontiac Grand Prix - Service manual page 5E2-17 showing Figure 11, the EBCM/EBTCM 8-way F Metri-Pack 280 Series light gray 12110626 connector C2 end view, above… 1997 Pontiac Grand Prix - Service manual page 5E2-19 headed "Diagnostic System Check" for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), with st… 1997 Pontiac Grand Prix - Service manual page 5E2-20 for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), listing diagnostic steps 9 through 17 wi… 1997 Pontiac Grand Prix - Open service manual page 5E2-21 for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), showing a numbered diagnostic step… 1997 Pontiac Grand Prix - Service manual page 5E2-22 for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), showing diagnostic steps 23 through 33 i… 1997 Pontiac Grand Prix - Service manual page 5E2-23 for the Antilock Brake System (ABS) and Enhanced Traction System (ETS), continuing the diagnostic table with ste… 1997 Pontiac Grand Prix - Service procedure for the ABS electronic brake control module and front wheel speed sensor with remove/install steps and figures. 1997 Pontiac Grand Prix - Service manual page documenting ABS/ETS rear wheel speed sensor jumper harness with Connector Position Assurance locks and the Electronic B… 1997 Pontiac Grand Prix - A page from an automotive service manual titled 'ELECTRICAL DIAGNOSIS 8A-65-1' showing a Schematic Icon Table, a Component/Location list (i… 1997 Pontiac Grand Prix - Ford electrical diagnosis (8A-65-2): HVAC air-delivery and temperature control (C60) system-check table listing action and normal results f… 1997 Pontiac Grand Prix - A page from an electrical diagnosis service manual (section 8A-65-3) showing 'Chart #1' for diagnosing when the temperature control knob do… 1997 Pontiac Grand Prix - HVAC air delivery and temperature controls wiring diagram showing the fan switch, A/C control and color-coded circuits. 1997 Pontiac Grand Prix - A scanned page from an automotive service manual (Section 18-4, Heater, Ventilation, and Air Conditioning) showing line-drawing diagrams of…
