Dana 20 Transfer Case

From 1974 Ford Bronco, documented by Indybronco.

8 photos
← Back to this vehicle

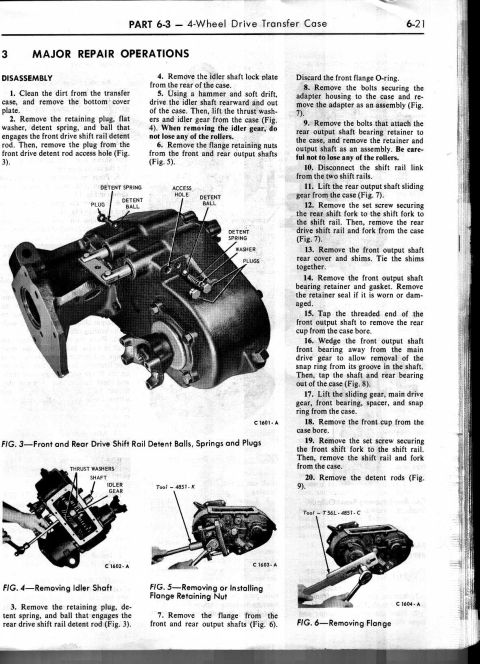

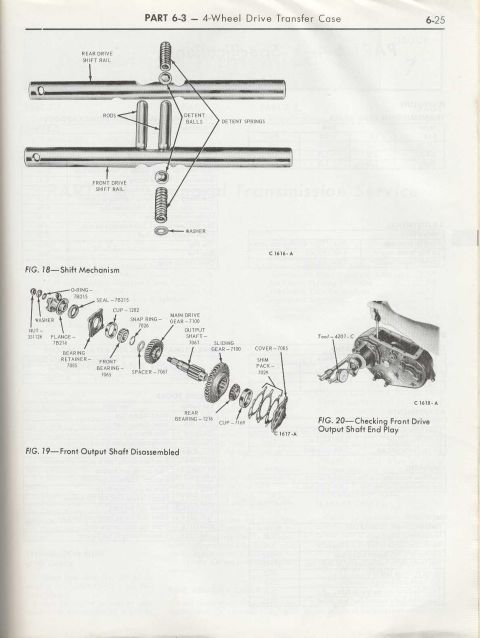

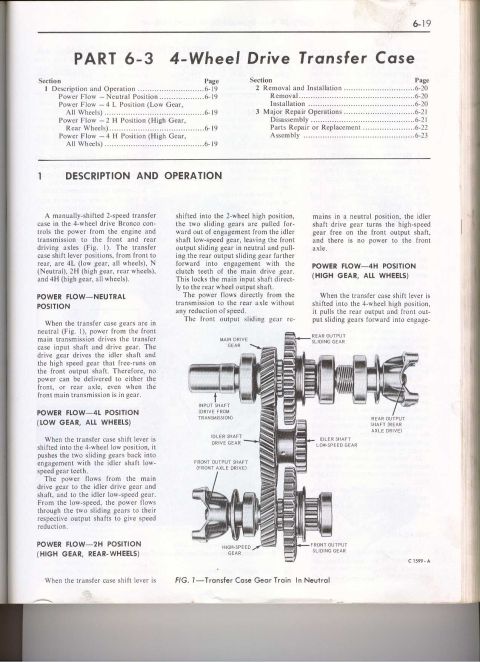

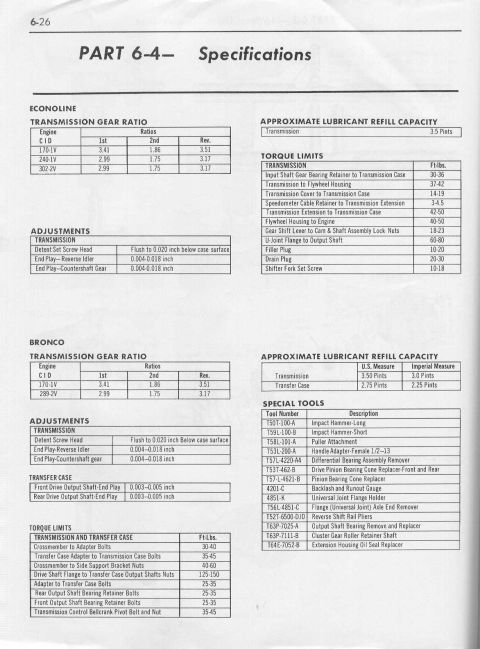

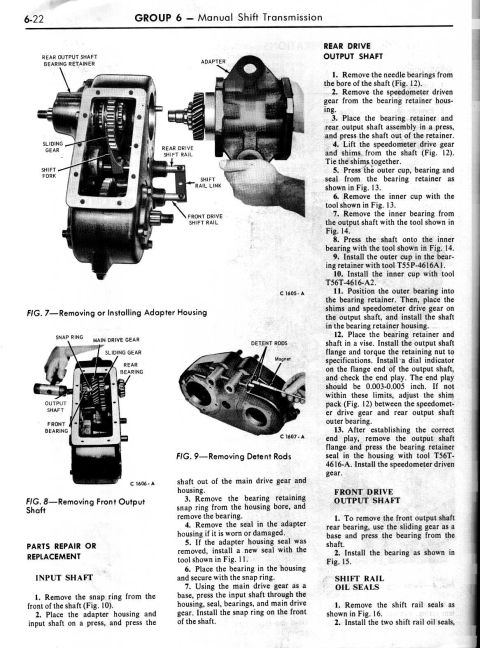

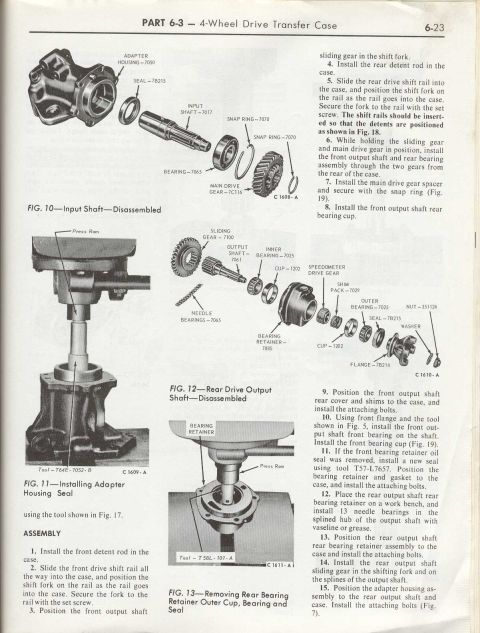

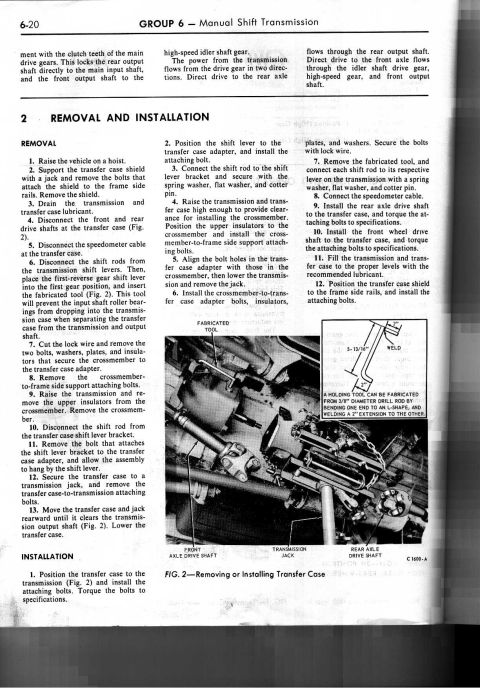

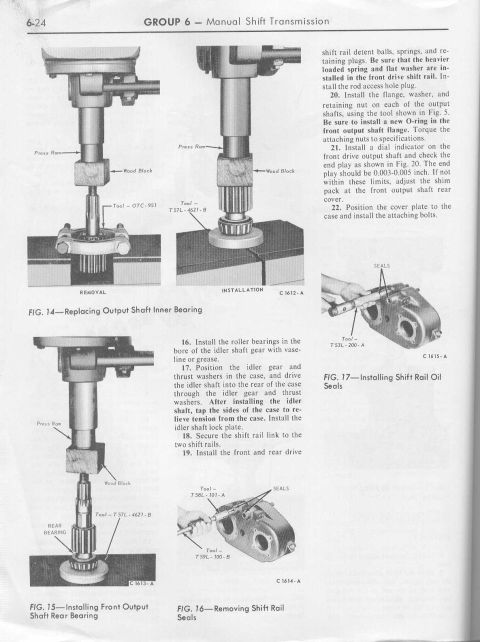

1974 Ford Bronco - Service manual page covering 4-wheel drive transfer case description and operation with a cutaway gear train figure. 1974 Ford Bronco - Manual-shift transmission/transfer case service page: describes power flow to front and rear axles and step-by-step transfer case removal a… 1974 Ford Bronco - Service procedure page detailing 4-wheel drive transfer case major repair disassembly steps with labeled photographs. 1974 Ford Bronco - Manual-shift transmission overhaul page (Group 6, p.6-22) covering input shaft, rear drive output shaft and adapter housing teardown; outpu… 1974 Ford Bronco - Service procedure page showing transfer case input and output shaft disassembly figures alongside assembly instructions. 1974 Ford Bronco - Manual-shift transmission reassembly page (p.6-24): set front output shaft end play to 0.003-0.005 in via shim pack, install idler gear/thr… 1974 Ford Bronco - Exploded parts diagrams of the transfer case shift mechanism and front output shaft showing bearings, gears, and detent components. 1974 Ford Bronco - Transmission spec page (Part 6-4) listing C10 gear ratios (170-1V/240-1V/302-2V), refill capacities and torque limits incl. input shaft ret…
