Divorced 205

From 1982 Ford F-100, documented by 1TonF100.

17 photos
← Back to this vehicle

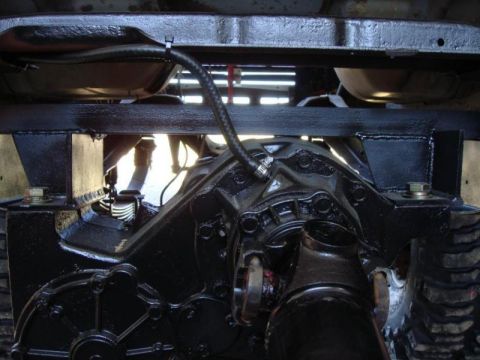

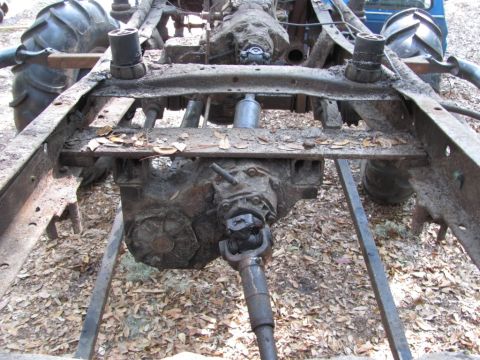

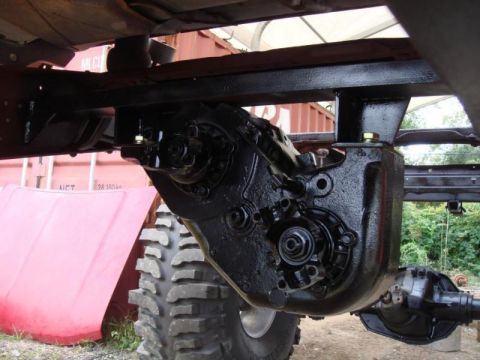

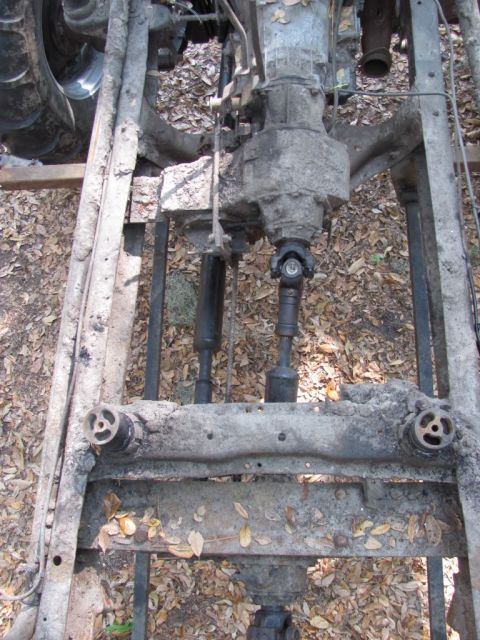

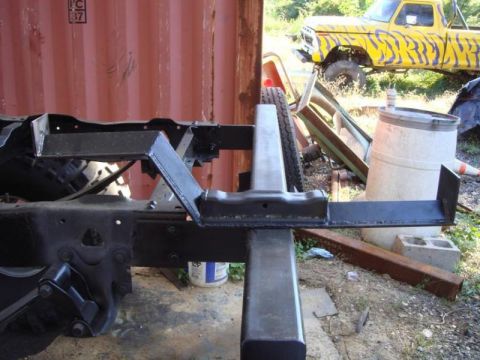

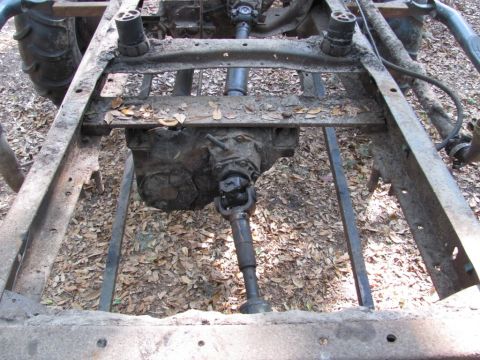

1982 Ford F-100 - Overhead view down a stripped truck frame with the body removed, showing the bare ladder rails and crossmembers, the transfer case with its… 1982 Ford F-100 - Overhead view of a bare, leaf-strewn truck frame outdoors with the body removed, showing the transmission and transfer case sitting on the… 1982 Ford F-100 - Overhead shot down into a bare truck frame with the body removed, showing the transmission and transfer case mounted between the rails with… 1982 Ford F-100 - Underbody close-up of a double-cardan driveshaft with twin U-joints running to a cast transfer case output, with a slip yoke and shift link… 1982 Ford F-100 - Side view under a red-and-white pickup showing a freshly painted black rear axle and driveshaft with long tubular triangulated four-link ar… 1982 Ford F-100 - The transfer case and drivetrain of a vehicle are shown, with a red hood in the background. 1982 Ford F-100 - Close-up of the rear differential and suspension system of a vehicle, showing various mechanical components. 1982 Ford F-100 - A box of National Wheel-End Components, part number 99212, is shown with other automotive parts in the background. 1982 Ford F-100 - Truck frame and parts with a tiger-striped truck in the background. 1982 Ford F-100 - Ford shop-manual page (06-07-02) covering F-250 4x4 transfer case removal and installation, including mounting-stud insulators and U-bolt/u… 1982 Ford F-100 - Ford F-250 New Process 205 transfer case installation drawing showing linkage, mounting bracket and torque specs in chassis. 1982 Ford F-100 - Ford F-250 New Process 205 transfer case installation exploded detail views showing linkage, bushings, bearing and stabilizer bar assembly. 1982 Ford F-100 - A rusty metal rod with clevis-style connectors on both ends lies horizontally on a weathered wooden surface. 1982 Ford F-100 - A rusty metal rod with a clevis-style end on the left and a bent end on the right rests on a weathered wooden surface. The rod appears to b… 1982 Ford F-100 - A close-up of a metal rod with a bent end and a small pin protruding from it, resting on a weathered wooden surface. 1982 Ford F-100 - A close-up view of a metal turnbuckle with a nut and cotter pin, resting on a weathered wooden surface. 1982 Ford F-100 - A close-up shot shows a metal part with an L-shaped bend, resting on a weathered wooden surface. The metal piece appears to be a component…
