This is starting half way into the installation of my Eddie Bauer Over Head Console in my 1983 Brion...
Rosie 007a.jpg
710 hits | 51.45 KB | Posted: 6/21/11
This is starting half way into the installation of my Eddie Bauer Over Head Console in my 1983 Brion...

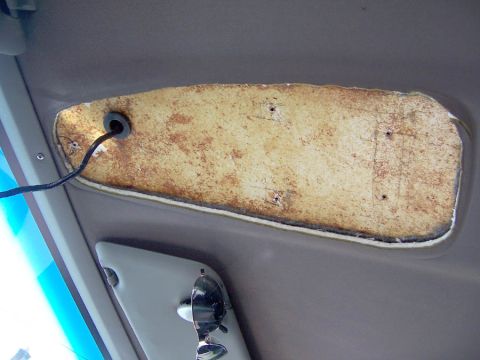

Just another view of the cable routing. I used a hole cutter to make a place for the cable to enter...
Rosie 006a.jpg
655 hits | 73.03 KB | Posted: 6/21/11
Just another view of the cable routing. I used a hole cutter to make a place for the cable to enter...

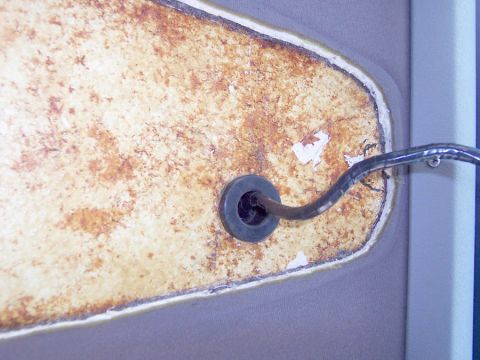

I made a template using the OHC and then cutting it about 5/16 inches smaller all around
Rosie 009.jpg
733 hits | 94.24 KB | Posted: 6/21/11
I made a template using the OHC and then cutting it about 5/16 inches smaller all around

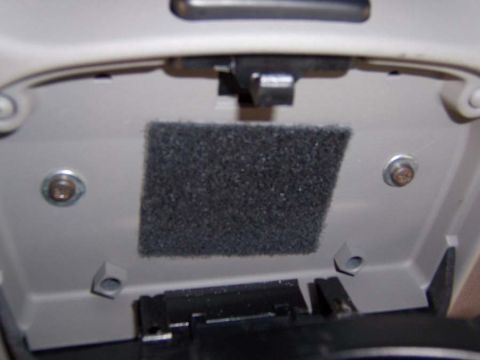

Here is the unit all fastened to the ceiling of the cab. I used the original holes and screwed it di...
Rosie 013.jpg
923 hits | 43.96 KB | Posted: 6/21/11
Here is the unit all fastened to the ceiling of the cab. I used the original holes and screwed it di...

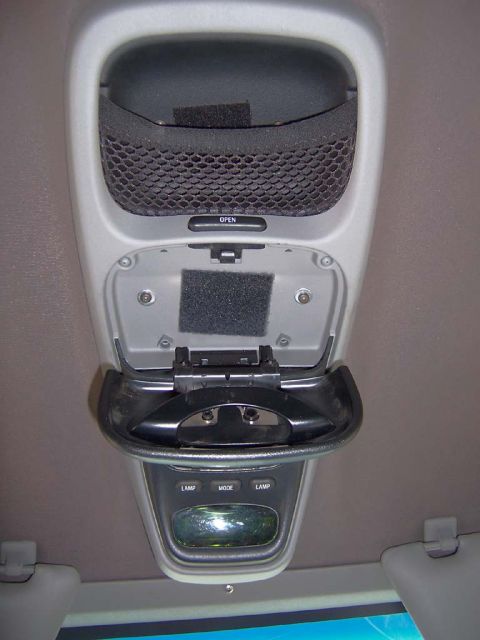

It is all held in place by 4 screws, 2 using the original holes, better picture next, and two screws...
Rosie 010.jpg
851 hits | 55.05 KB | Posted: 6/21/11
It is all held in place by 4 screws, 2 using the original holes, better picture next, and two screws...

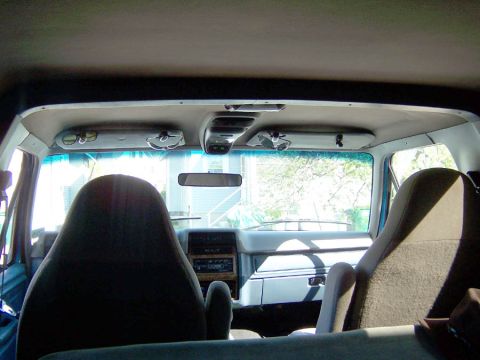

Just a view of the installation from the back.
Rosie 016.jpg
1009 hits | 78.57 KB | Posted: 6/26/11
Just a view of the installation from the back.

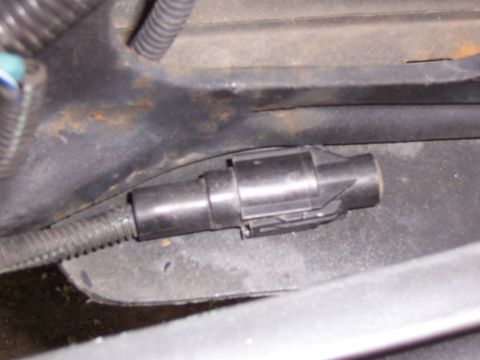

OK, where to mount the temperature sensor. I initially mounted it on the radiator support just to t...
Temperature Sensor 001.jpg
753 hits | 41.35 KB | Posted: 6/21/11
OK, where to mount the temperature sensor. I initially mounted it on the radiator support just to t...

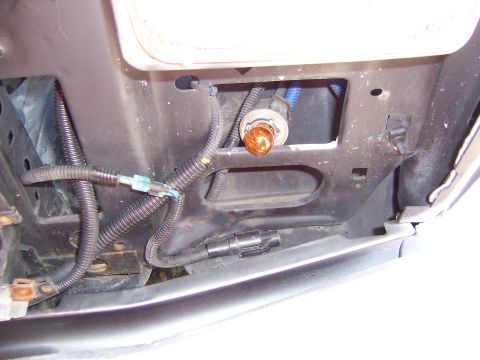

As it turns out, monting it on the radiator support was a bad idea because the metal heats up and th...
Temperature Sensor 002.jpg
762 hits | 51.1 KB | Posted: 6/21/11
As it turns out, monting it on the radiator support was a bad idea because the metal heats up and th...

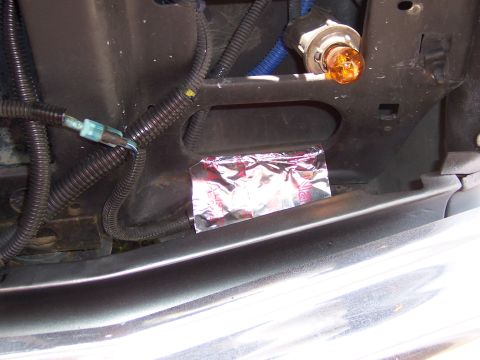

to prevent any possible windchill problems, I made a bridge over the sensor with a piece fo metal du...
Temperature Sensor 003.jpg
785 hits | 52.65 KB | Posted: 6/21/11
to prevent any possible windchill problems, I made a bridge over the sensor with a piece fo metal du...

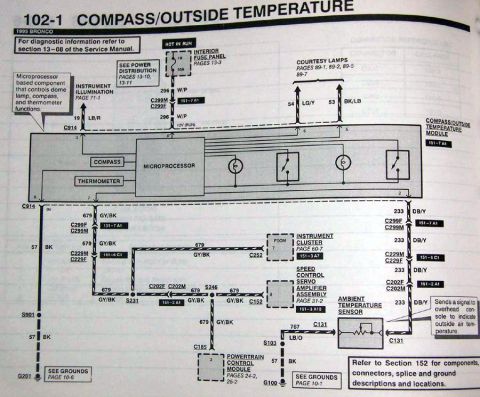

Note that one of the sensors wires is grounded. However that is not the case for all years of Ford ...
1995 Diagrams 006.jpg
1724 hits | 95.25 KB | Posted: 6/21/11
Note that one of the sensors wires is grounded. However that is not the case for all years of Ford ...

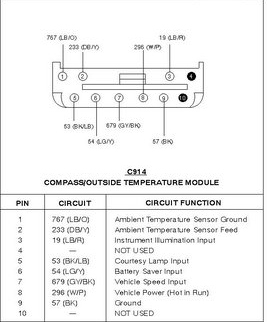

The Pin wiring for the connector to the OHC. In spite of the color of the wire at the connector, th...
OHC Connector.jpg
940 hits | 31.71 KB | Posted: 6/21/11
The Pin wiring for the connector to the OHC. In spite of the color of the wire at the connector, th...
