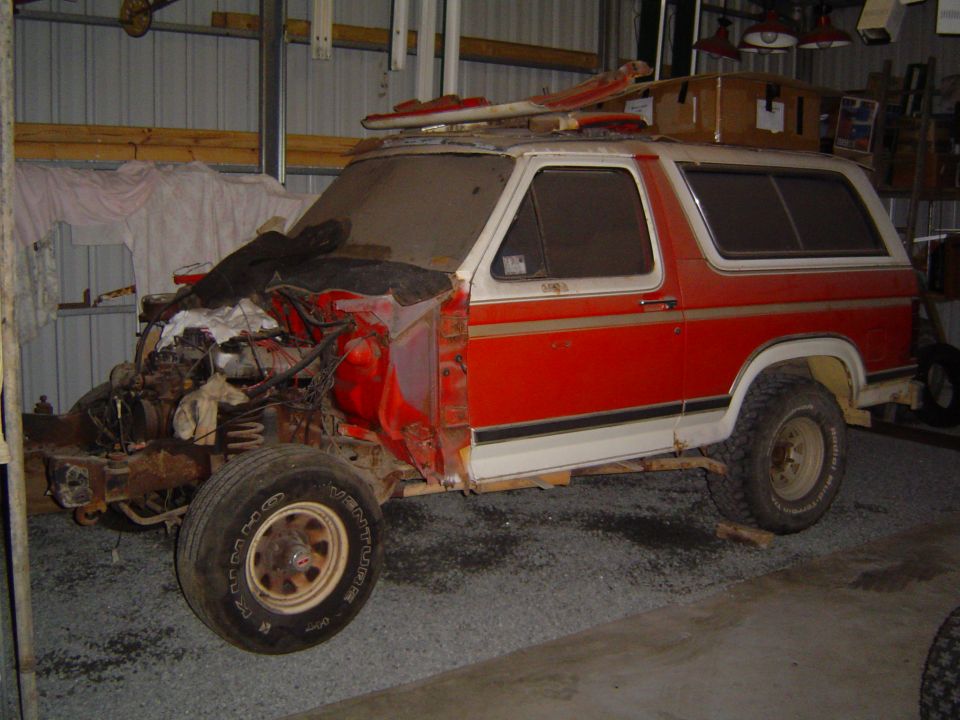

Red and white SUV with stripped front end and exposed engine in a shop
Home/ Registry/ Ford/ Bronco/ 1980-1986/ 1984 Bronco supermotors.net/registry/21944

1984 Ford Bronco

documented by 351bronco84 29 photos documented since 5 years documented ♡ Follow this build

The story

4" suspension lift
3" body lift
16" x 10" MT classic 2 rims
37" tires · 351bronco84

Photos

1984 351c Bronco Had been sitting in my shed for a few years like this waiting for time & money for resto! 1984 Ford Bronco: Got the body of the chassis and giving it a degrease ready to pull 351c motor, c6 tranny, 9" diff & dana 44 o… Orange and white Ford Bronco body separated from its rusty chassis in a garage, with a man standing nearby 1984 Ford Bronco: 351c had only done 120k km's but must have never had oil changes done. Motor was stuffed and filled with blac… 1984 Ford Bronco: Gave the open chamber heads a cleanup and removed any lumps etc from the ports. New valves, guides etc Getting ready to build the Megasquirt ECU. I am going to fabricate a aluminium sheet metal manifold and I hav… 1984 Ford Bronco: Bare board with just one connector installed. This is a long process to solder all together but hopefully it… 1984 Ford Bronco: Soldering done, just had to clean & seal the board & then program it for my engine. 1984 Ford Bronco: Final Megasquirt ECU ready to wire up! 1984 Ford Bronco: Used a gazebo in my shed as a sandblasting/painting booth. Wont use it to paint the body as to much dust floa… 1984 Ford Bronco: Motor partly back together, replaced pretty much everything. Wished I had grit blasted before I dismantled it… 1984 Ford Bronco: Pile of stuff to be grit blasted! I hate to think how many hours I have spent blasting. Gone through about 15… 1984 Ford Bronco: Sump after blasting. 1984 Ford Bronco: After blasting I gave everything a coat or Wattyl PR250 then DTM985. These are marine coatings. Hopefuly this… 1984 Ford Bronco: More parts that I painted. 1984 Ford Bronco: Having trouble getting the pattern right when installing new ring & pinion to the Dana 44. The ford 9" is a b… 1984 Ford Bronco: Vehicle frame on stands inside a tent, undergoing restoration 1984 Ford Bronco: Chassis looked terrible but once I cleaned it up a bit I found there was only minimal surface rust to blast o… 1984 Ford Bronco: Because it took so long with the small grit blaster, I had to blast a bit then prime it, then blast some more… 1984 Ford Bronco: Installing new ring & pinion to the 9" diff plus replacing all bearings/seals etc. 1984 Ford Bronco: Custom TIG-welded aluminum intake manifold with four machined inlets on a workbench 1984 Ford Bronco: Fabricated aluminum four-stack intake manifold on a V8 with chrome Edelbrock valve covers 1984 Ford Bronco: The Hayabusa throttle bodies mounted, have installed bigger injectors and will make a cold air intake when bo… 1984 Ford Bronco: Starting to make my intake manifold, cut it out with a die grinder. 1984 Ford Bronco: Surprising how much work goes into a sheet metal intake! 1984 Ford Bronco: Starting to come together! 1984 Ford Bronco: Restored black truck frame on jack stands with red coil springs and white Rough Country shocks in a plastic-l… 1984 Ford Bronco: Gloss black restored truck frame with new fuel tank, Rough Country shocks, and red sway bar Black computer tower with a black device mounted on top by a silver bracket. Blue wire runs overhead
